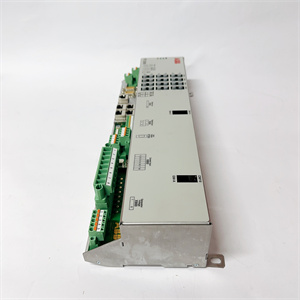

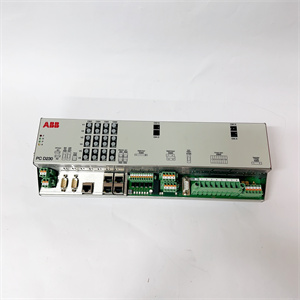

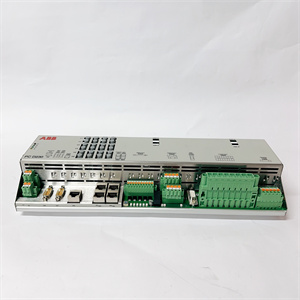

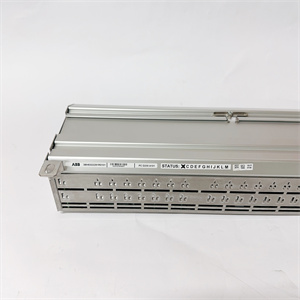

ABB PCD230A101 3BHE022291R0101 is a multi-functional industrial automation controller module, widely used in the field of industrial automation. Here is a detailed description of the product:
ABB PCD230A101 3BHE022291R0101 Product description
The PCD230A101 3BHE022291R0101 is part of ABB’s PC200 series of controller modules designed for industrial automation with high reliability and high performance. It supports a variety of programming languages and development environments to meet the needs of different industrial scenarios.
Product parameter
Input voltage: DC 9-36V, typical value is DC 24V.
Output voltage: DC 48V, maximum current 1A.
Power consumption: less than 4W.
Operating temperature range: -20℃ to +60℃.
Protection level: IP20.
Size: 132mm×105mm×52mm.
Communication interface: Support Ethernet, MODBUS, PROFIBUS and other industrial communication protocols.
Memory capacity: Supports 128-256Mbyte DDR memory.
Processor speed: 50-60Hz.
Product specification
Model: PCD230A101 3BHE022291R0101.
Series: PC200 series.
Function: Support process control (such as temperature, pressure, flow control), data acquisition, safety control, etc.
Usage: Used in industrial automation control system, including real-time servo control, data processing and storage.
Series and features
The PCD230A101 is part of ABB’s PC200 family of controller modules, which are characterized by high reliability, high performance and flexibility for use in harsh industrial environments. Its main features include:
High reliability: stable operation in harsh environments.
Flexibility: Support for multiple programming languages and development environments.
Ease of use: Provides a user-friendly interface.
Function and use
The main role of PCD230A101 is to realize the automatic control of industrial processes, including:
Process control: such as temperature, pressure, flow real-time monitoring and regulation.
Data acquisition: Production data is collected and analyzed and monitored.
Safety control: to achieve interlock protection to ensure the safety of the production process.
Remote control and data transmission: Supports remote device control and data transmission.
Application field
The PCD230A101 is used in a wide range of industrial applications, including but not limited to:
Manufacturing: production line control, robot control.
Energy industry: power production, transmission and distribution automation.
Chemical industry: Automatic control of petrochemical production processes.
Building automation: building automation system, security system.
Other fields: Papermaking, metallurgy and other industries.
