Description
The
ABB P7LA HNEF105323R0002 is a high-performance
process automation controller designed for ABB’s
Industrial IT ABB Ability™ platform, serving as the core of distributed control systems (DCS) in complex industrial environments. As part of the
P7LA series, this controller is engineered to handle real-time control, data acquisition, and advanced automation tasks in industries such as oil & gas, power generation, and large-scale manufacturing. The
HNEF105323R0002 variant features a
dual-core ARM Cortex-A72 processor and
4 GB RAM, enabling it to manage up to 10,000 I/O points with sub-millisecond cycle times, making it ideal for mission-critical applications requiring deterministic performance and scalability.
Equipped with dual Gigabit Ethernet interfaces and redundant power supply support (24 V DC/110 V AC), the P7LA HNEF105323R0002 ensures continuous operation with failover times <30 ms, even in harsh conditions. Its IP20-rated enclosure and conformal-coated PCBs protect against dust, moisture, and electromagnetic interference (EMI), while the hot-swappable design allows maintenance without disrupting processes. Positioned as a future-proof solution, the controller integrates seamlessly with ABB’s 800xA software and IIoT platforms, enabling predictive maintenance, remote diagnostics, and cloud-based analytics to optimize operational efficiency.
| Parameter Name |
Parameter Value |
| Product Model |
P7LA HNEF105323R0002 |
| Manufacturer |
ABB |
| Product Type |
Process Automation Controller (DCS Core) |
| Processor |
Dual-core ARM Cortex-A72 @ 1.8 GHz |
| Memory |
4 GB RAM, 32 GB eMMC Flash |
| I/O Capacity |
Up to 10,000 points (modular via S800 I/O) |
| Communication Interfaces |
2x Gigabit Ethernet (PROFINET/EtherNet/IP), 1x RS-485 |
| Supported Protocols |
IEC 61850, Modbus TCP, OPC UA, MQTT |
| Power Supply |
24 V DC (18–30 V DC) or 110 V AC (85–132 V AC) |
| Operating Temperature |
-25°C to +60°C |
| Dimensions (W×H×D) |
100 mm × 150 mm × 50 mm |
| Mounting Method |
DIN rail (AC 800M I/O rack) |
| Redundancy Support |
Processor, power, and network (optional) |
| Certification |
CE, UL, IEC 61131-2, IEC 62443-4-1, RoHS |

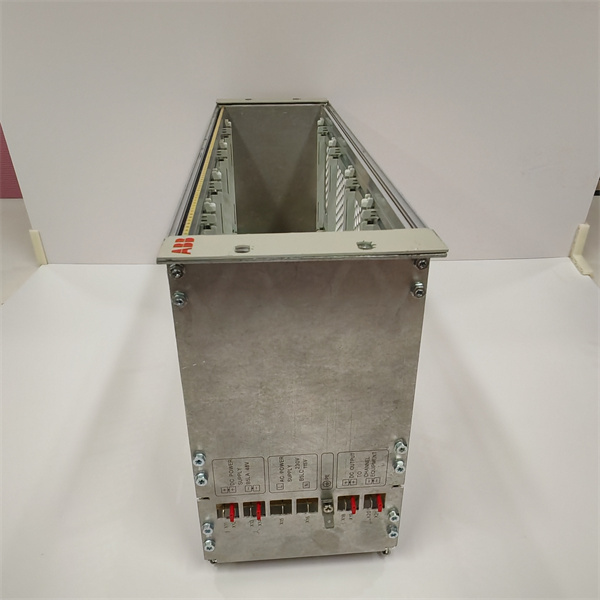

P7LA HNEF105323R0002
The P7LA HNEF105323R0002 leverages ABB’s Edge Control Technology to execute real-time control logic and AI-driven analytics locally, reducing reliance on cloud connectivity and minimizing latency. Its dual-core processor supports parallel execution of control algorithms and machine learning models, such as predictive maintenance for pumps in a water treatment plant, where it analyzes vibration data to predict failures with 95% accuracy. The controller’s hardware-accelerated encryption (AES-256) ensures secure data transmission to IIoT platforms, compliant with IEC 62443 cybersecurity standards.
The controller’s compatibility with ABB’s S800 I/O system allows engineers to customize configurations with analog, digital, or fieldbus modules (e.g., HART, FOUNDATION Fieldbus). For example, in a pharmaceutical plant, the P7LA HNEF105323R0002 can integrate with sterile valves (via PROFIBUS DP) and pH sensors (4-20 mA), while supporting batch control recipes in the 800xA software. The modular design reduces hardware costs by 20% compared to monolithic systems, as only required functionality is deployed.
Integrated with ABB’s
Ability™ Condition Monitoring, the controller provides real-time insights into its own health, including CPU load, memory usage, and communication latency. This predictive capability identifies anomalies, such as a failing network interface, up to 7 days before failure, enabling proactive maintenance and reducing unplanned downtime by 40%. Engineers can remotely manage the controller via ABB’s
Remote Services portal, performing firmware updates or adjusting PID parameters from any location, a critical feature for global manufacturing teams.

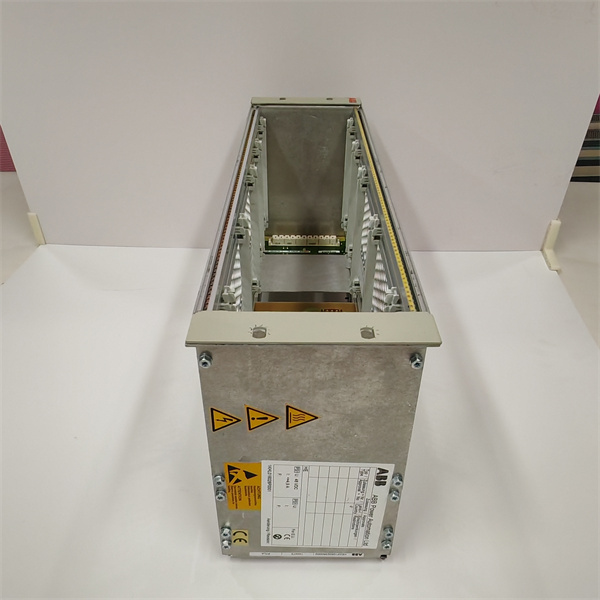

P7LA HNEF105323R0002
The ABB P7LA HNEF105323R0002 excels in industries requiring robust, secure, and intelligent automation:
- Food and Beverage: Manages pasteurization lines and recipe-driven mixing systems in dairy factories. The controller’s precise temperature control (±0.5°C) ensures product consistency, while its hygienic design complies with EHEDG standards for easy cleaning.
- Mining and Minerals: Orchestrates conveyor networks and flotation cells in copper mines, using real-time data from XRF sensors to optimize ore sorting and increase recovery rates by 15%. The controller’s wide temperature range supports outdoor installations in arctic or tropical climates.
- HVAC in Smart Buildings: Oversees large-scale heating and cooling systems in commercial complexes, using weather forecasting data to pre-adjust chiller loads and reduce energy costs by 25%. The controller’s BACnet/IP support enables integration with third-party building management systems.
- Renewable Energy: Controls solar inverters and energy storage systems in microgrids, balancing intermittent power generation with demand. In a wind farm, it coordinates turbine pitch control via EtherNet/IP, maximizing energy capture while complying with grid codes.
- ABB P7LA HNEF105324R0003: A quad-core variant with 8 GB RAM, designed for high-performance applications like autonomous vehicle testing facilities.
- ABB S800 I/O Modules: Modular extensions such as the AI810 (analog input) or DO810 (digital output) that expand the controller’s physical connectivity.
- ABB PM866AK01: A legacy AC 800M controller module, compatible with the P7LA via gateway solutions for phased system upgrades.
- ABB CI524: A Profibus DP interface module, enabling integration with legacy field devices in brownfield projects.
- ABB TB521: A terminal block accessory for secure wiring of I/O signals, ensuring reliable connections in high-vibration environments.
Pre-installation preparation: Mount the P7LA HNEF105323R0002 in an AC 800M I/O rack using DIN rail clips, ensuring proper grounding and at least 25 mm of clearance for airflow. Connect redundant power supplies and shielded Cat6 cables to the controller’s Ethernet ports, following ABB’s EMC guidelines. Use 800xA Engineering Tool to configure I/O channels, security policies, and edge applications, then validate connectivity with loopback tests.
Maintenance recommendations: Conduct monthly health checks via the controller’s LED indicators and ABB’s diagnostic software, monitoring for temperature spikes or fan failures. In dusty environments, clean cooling vents quarterly with compressed air. Annually, update firmware to the latest version to access new features and security patches. For redundant systems, perform failover testing every six months to ensure seamless switchover and data integrity.
ABB stands behind the P7LA HNEF105323R0002 with a 5-year warranty, covering hardware defects, firmware errors, and manufacturing issues. ABB’s global technical support team provides 24/7 remote diagnostics and on-site assistance, with average response times under 4 hours for critical issues. The controller undergoes rigorous testing, including 10,000-hour burn-in tests and EMC compliance checks, to ensure adherence to ISO 9001 standards. For customers in regulated industries, ABB offers functional safety assessment services to validate the controller’s suitability for SIL 2 applications, such as emergency shutdown systems in chemical plants. By combining processing power, scalability, and advanced diagnostics, the P7LA HNEF105323R0002 sets a new standard for industrial automation controllers.
Shanxi Xinyeda International Trading Co., Ltd. is your trusted partner, we provide and other automation spare parts sales and technical support. Please visit our website www.xydcontrol.com or contact us and we will be happy to serve you.
