NTAC-02

Description

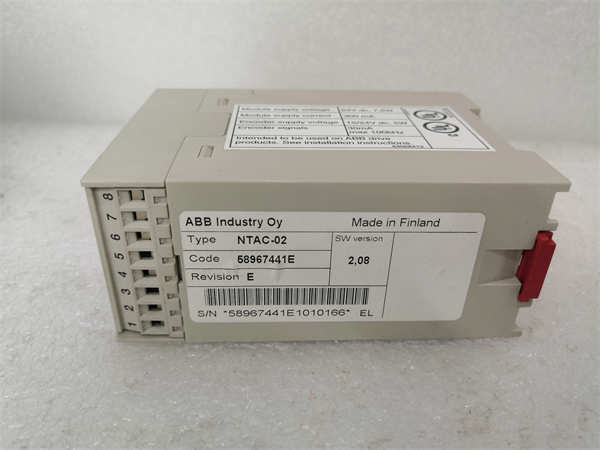

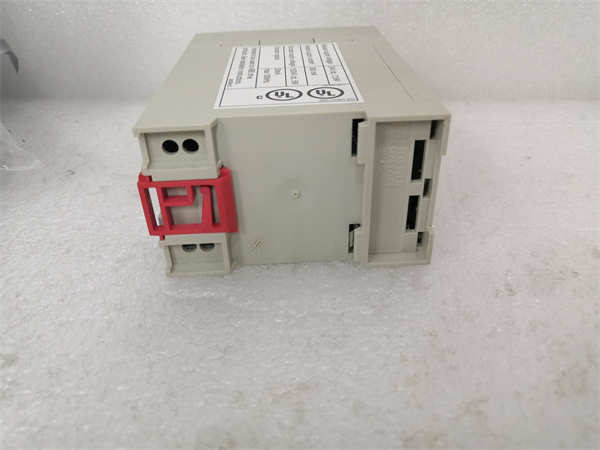

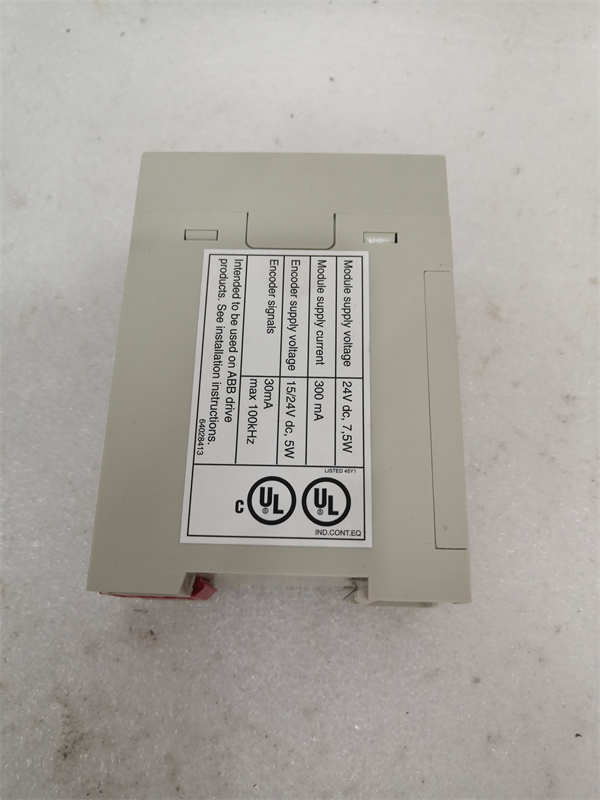

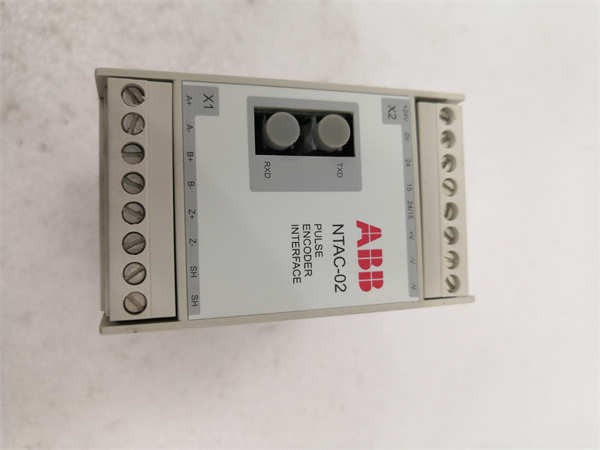

Detailed introduction of ABB NTAC-02 pulse encoder interface module

Product Overview

ABB NTAC-02 is a pulse encoder interface module designed specifically for ABB frequency converters.It is mainly used to convert pulse signals from external encoders into digital signals that can be recognized by frequency converters,thereby achieving precise control of motor speed,position,and other parameters.

Product Features

High compatibility:specially designed for ABB frequency converters,with strong compatibility and easy integration.

High precision:capable of accurately collecting encoder signals to ensure control accuracy.

Flexible configuration:Supports multiple encoder types and signal forms,with flexible configuration.

Isolation protection:It has good isolation protection function to improve the reliability of the system.

Product parameters and specifications

Input signal:Supports multiple encoder signal types,such as ABZ,incremental,etc.

Output signal:Convert the encoder signal into a digital signal that can be recognized by the frequency converter.

Working voltage:Depending on the model of the frequency converter.

Interface type:usually fiber optic interface or other specialized interface.

Product series

NTAC-02 belongs to the ABB frequency converter accessory series,mainly used to expand the functions of frequency converters.

Product function and purpose

The main function of NTAC-02 is to convert the pulse signal of the external encoder into a digital signal that can be recognized by the frequency converter,achieving the following functions:

Closed loop control:By feedback encoder signals,closed-loop control of motor speed and position is achieved to improve control accuracy.

Synchronous control:Achieving synchronous operation of multiple motors or devices.

Position control:Achieve precise control of the motor position.

application area

NTAC-02 has a wide range of applications in various fields that require precise control of motors,such as:

Machine tool equipment:servo systems used for CNC machine tools,machining centers,and other equipment.

Packaging machinery:used for precise control of feeding,sealing,cutting and other actions of packaging machinery.

Automated production line:used for precise control of handling,assembly,and other actions in various automated production lines.

Other industrial equipment:suitable for various industrial equipment that requires precise motion control.

summary

The ABB NTAC-02 pulse encoder interface module is an important component of the ABB frequency converter system.By converting the encoder signal into a digital signal that the frequency converter can recognize,high-precision control of the motor is achieved.Plays an important role in various industrial applications that require precise motion control.
