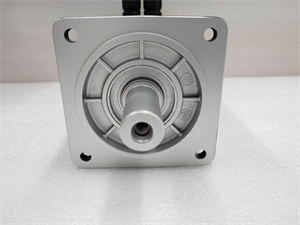

MSK060C-0600-NN-S1-UP1-NNNN

Description

1. Product Description

2. Product Parameters

Parameter	Value
Rated Power	4.7 kW
Rated Voltage	3-phase, 400 V (±10%)
Rated Current	14 A
Speed Range	0–6,000 rpm
Peak Torque	24 N·m
Continuous Torque	15 N·m
Encoder Type	Hiperface multiturn absolute (12-bit resolution)
Protection Class	IP65 (dust-tight and water-resistant)
Cooling Method	Natural convection
Weight	18 kg
Compatibility	Rexroth IndraDrive, ctrlX Drive, and third-party controllers via Profinet, EtherCAT, Modbus RTU
Operating Temperature	-20°C to +40°C (with derating at higher temperatures)

MSK060C-0600-NN-S1-UP1-NNNN

3. Advantages and Features

• High Reliability: Built with rugged materials and tested for over 40,000 hours of continuous operation in extreme conditions, the MSK060C-0600-NN-S1-UP1-NNNN minimizes downtime in industrial workflows.
• Precision Motion Control: The Hiperface encoder provides high-resolution position feedback (12-bit absolute), enabling positioning accuracy within ±0.1°, critical for applications requiring sub-millimeter precision.
• Energy Efficiency: Compliant with IE4 efficiency standards, the motor reduces energy consumption by up to 20% compared to older models, lowering operational costs over its lifespan.
• Flexible Integration: Rotatable electrical connectors (240° adjustment) simplify installation in tight spaces, while support for multiple communication protocols ensures seamless integration with both Rexroth and third-party control systems.
• Modular Design: Optional accessories such as holding brakes, axial fans, and corrosion-resistant coatings allow customization for specific environmental or mechanical requirements.

4. Application Areas and Case Studies

Industry Applications

• Manufacturing: Ideal for assembly lines, robotic arms, and CNC machines, where precise motion control is essential for quality and productivity.
• Packaging: Used in high-speed labeling, sorting, and filling machines to maintain consistent throughput and accuracy.
• Material Handling: Supports conveyor systems and automated storage solutions, ensuring smooth and reliable load transport.
• Energy and Utilities: Applied in precision positioning for renewable energy equipment, such as solar panel production lines.

Case Study

5. Competitor Comparison

• Superior Torque-to-Size Ratio: Delivers 20% more peak torque than comparable models in its power class, enabling faster acceleration and handling of heavier loads.
• Enhanced Environmental Resistance: The IP65 protection rating exceeds the typical IP54 found in many competing products, making it suitable for harsher industrial environments.
• Advanced Encoder Technology: The multiturn absolute encoder eliminates the need for reference positioning at startup, improving system efficiency compared to models with incremental encoders.
• Lower Total Cost of Ownership: Combining energy efficiency, long service life, and minimal maintenance, the motor offers a more cost-effective solution than alternatives with higher operational or repair costs.


  MSK060C-0600-NN-S1-UP1-NNNN

6. Selection Recommendations

• Load Requirements: Ensure the motor’s continuous and peak torque ratings match your application’s mechanical demands, especially for tasks involving sudden acceleration or heavy payloads.
• Environmental Conditions: If operating in extreme temperatures, dusty environments, or areas with moisture, utilize optional coatings or cooling solutions to maintain performance and longevity.
• Control System Compatibility: Verify that the motor’s communication protocols (e.g., Profinet, EtherCAT) align with your existing control infrastructure to avoid integration issues.
• Budget and Lifespan: Balance the initial investment with long-term energy savings and reliability. The motor’s higher upfront cost is often offset by reduced energy consumption and maintenance over its lifecycle.

7. Precautions

• Installation: Follow Rexroth’s guidelines for proper mounting to avoid mechanical stress, ensuring the motor is securely fastened and aligned to prevent vibration or misalignment issues.
• Electrical Safety: Always disconnect power before installing or servicing the motor, and use shielded cables to minimize electromagnetic interference (EMI) with other components.
• Maintenance: Regularly inspect the motor for signs of wear, such as unusual noise or overheating. Clean external surfaces to maintain thermal efficiency, and lubricate bearings according to the manufacturer’s schedule.
• Environmental Compliance: Ensure the motor meets local safety and environmental standards (e.g., CE, UL) and avoid exposure to flammable gases, liquids, or excessive vibrations that could compromise performance.
