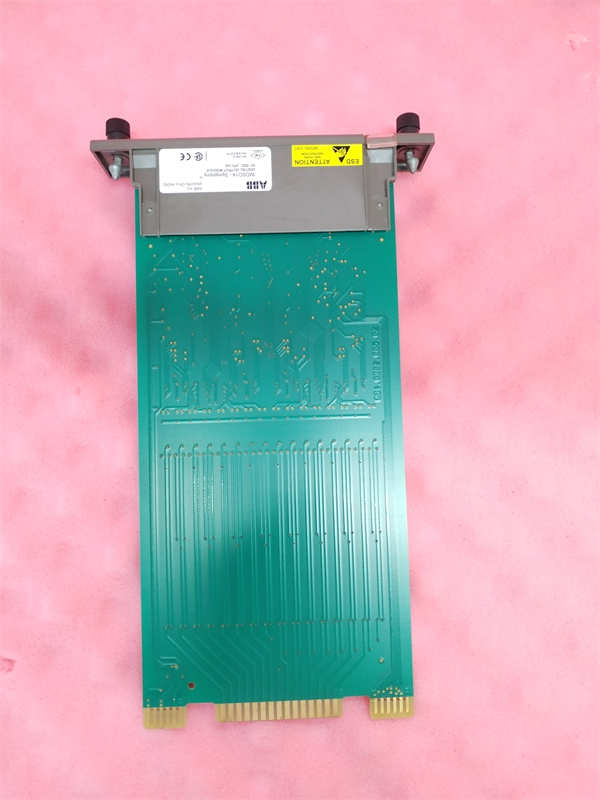

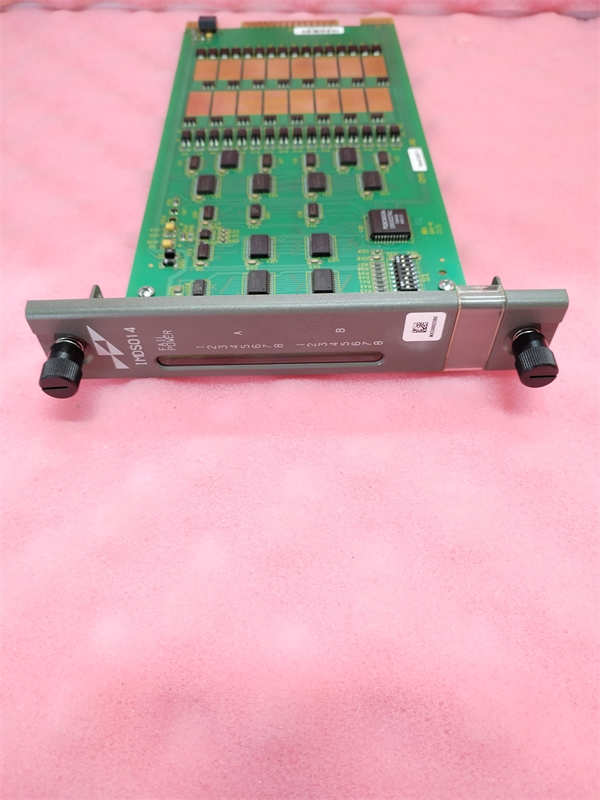

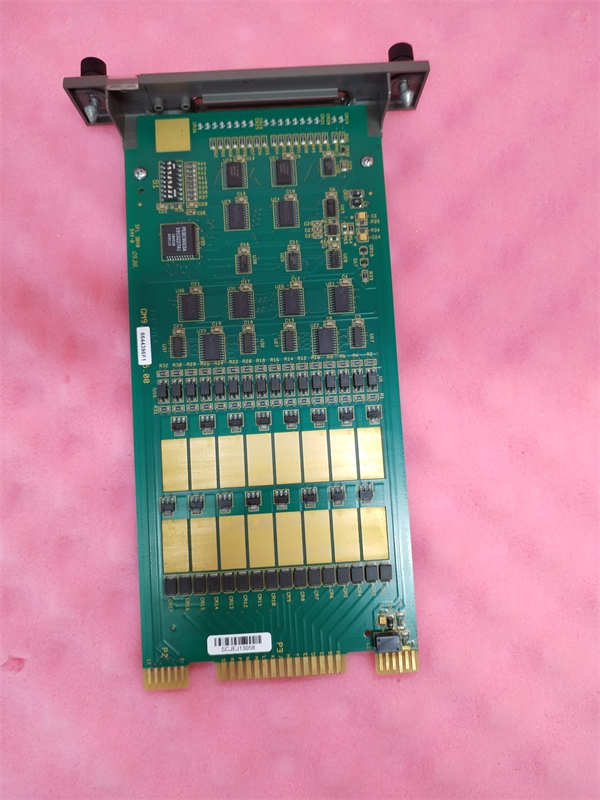

IMDSO14

Description

1. Product Description: ABB IMDSO14 Digital Slave Output Module

2. Product Parameters

Parameter	Specification
Model	IMDSO14
Type	Digital Slave Output Module (Modbus RTU)
Output Channels	16 isolated digital outputs (open collector/push-pull)
Voltage	24V DC (±10%)
Output Current	10 mA per channel (max)
Communication	Modbus RTU (RS485), 2-wire (9600–19200 baud)
Response Time	<1 ms (on/off)
Compatibility	ABB Infi 90, AC800M DCS; third-party Modbus masters
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Dimensions (W×H×D)	90 mm × 90 mm × 70 mm
Weight	0.2 kg
Certifications	CE, RoHS, IEC 61131-2 (industrial control)

IMDSO14

3. Advantages and Features

• High Precision & Speed:
  • <1ms response time for real-time control in fast-paced applications (e.g., robotic assembly).
• Reliability:
  • MTBF of 150,000 hours (IEC 61709) and IP20 protection against dust/vibration.
• Flexible Configuration:
  • 16 independent channels with configurable output modes (normally open/closed) via Modbus commands.
• Easy Integration:
  • Plug-and-play with ABB’s DCS systems; compatible with standard Modbus RTU masters (no proprietary adapters).
• Case Study:
  A chemical plant in the U.S. integrated the IMDSO14 to control 16 pumps in a wastewater treatment system. The module’s Modbus RTU connectivity and real-time diagnostics reduced downtime by 25%, improving system availability to 99.8%.

4. Application Areas and Case Studies

• Industries:
  • Manufacturing (robotics, assembly lines).
  • Energy (power plants, renewable energy installations).
  • Process control (chemicals, water treatment).
  • Logistics (automated 仓储 systems).
• Case Study:
  A German automotive factory used the IMDSO14 to manage 16 robotic grippers in a welding cell. The module’s isolated outputs and fast response time (0.8 ms) improved cycle efficiency by 18%, reducing production costs by $150,000 annually.

5. Competitor Comparison

Feature	IMDSO14	Market Standards
Channels per Module	16	8–12 (competitors)
Temperature Range	-20°C to +60°C	0°C to +50°C (narrower)
Communication Flexibility	Native Modbus RTU	Proprietary protocols (竞品)
Diagnostic Visibility	LED status per channel	Limited indicators (竞品)

IMDSO14

6. Selection Recommendations

• Compatibility:
  • Verify Modbus RTU compatibility with your master controller (e.g., ABB AC800M, Siemens S7-1200).
• Environment:
  • Use in environments within -20°C to +60°C; upgrade to IP65 enclosures for wet/dusty sites.
• I/O Requirements:
  • Choose the IMDSO14 for 16+ outputs; opt for smaller modules (e.g., IMDSO08) for lower channel counts.
• Budget:
  • Cost-effective ($300–$500) with 3-year warranty, offering 20% lower lifecycle costs than non-Modular alternatives.

7. Precautions

• Installation:
  • Use shielded twisted-pair cables for RS485 communication (max length: 1 km).
  • Follow ESD guidelines (anti-static wrist straps) during handling.
• Configuration:
  • Set Modbus addresses (1–247) uniquely for each slave; validate baud rate (9600–19200) with the master.
• Maintenance:
  • Clean dust from vents annually; replace modules after 10+ years of continuous use.
• Safety:
  • Ensure proper grounding (PE) for EMI protection; disconnect power before replacing terminals.
