Description
The

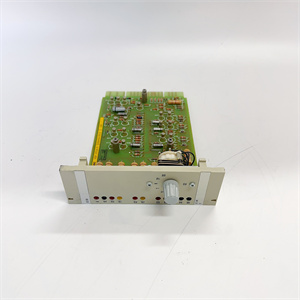

ABB G3EB HENF315768R1 is a high-performance
industrial controller module designed to deliver precise automation and control in complex industrial systems. As part of ABB’s advanced
G3 series, this module serves as a versatile control hub, integrating seamlessly with PLCs, DCS systems, and field devices to manage processes across manufacturing, energy, and infrastructure sectors. Engineered for reliability and scalability, the
ABB G3EB HENF315768R1 combines modular design, programmable logic capabilities, and multi-protocol communication to optimize system efficiency, reduce downtime, and enhance operational flexibility.
Featuring a robust architecture, the G3EB HENF315768R1 supports real-time control logic execution, data acquisition, and device coordination, making it ideal for applications requiring deterministic performance. Its modular design allows users to customize I/O configurations, expand system capabilities, and adapt to evolving process requirements. With support for multiple industrial communication protocols—including Modbus, Profibus-DP, and Ethernet/IP—the module enables seamless integration with legacy and modern systems, ensuring compatibility with a wide range of sensors, actuators, and higher-level SCADA platforms. The ABB G3EB HENF315768R1 is built to withstand harsh industrial environments, with rugged construction and advanced diagnostic features that minimize maintenance needs and ensure long-term reliability.
| Parameter Name |
Parameter Value |
| Product Model |
G3EB HENF315768R1 |
| Manufacturer |
ABB |
| Product Type |
Industrial Controller Module |
| Processor |
32-bit RISC, 400 MHz |
| Memory |
512 MB RAM, 256 MB Flash |
| I/O Capacity |
Up to 256 points (expandable via modular I/O) |
| Communication Protocols |
Modbus RTU/TCP, Profibus-DP, Ethernet/IP |
| Power Supply |
24 V DC (±15%), Redundant Support |
| Operating Temperature |
-20°C to +60°C |
| Dimensions (W×H×D) |
100 mm × 150 mm × 80 mm |
| Mounting Method |
DIN Rail or Panel Mount |
| Certification |
CE, UL, RoHS |
| Redundancy Support |
Hot Standby (Dual Module Configuration) |
G3EB HENF315768R1
Modular Flexibility: The ABB G3EB HENF315768R1’s modular design allows users to configure digital and analog I/O modules based on specific application needs, reducing upfront costs and enabling future scalability. A food processing plant adapted the module’s I/O configuration to manage both conveyor belts (digital signals) and mixing tanks (analog signals), eliminating the need for separate controllers and streamlining system architecture.
Programmable Control Logic: Supporting IEC 61131-3 programming languages (Ladder, FBD, ST), the module enables custom control strategies tailored to unique process requirements. A pharmaceutical facility used its programmable interface to automate batch sterilization cycles, adjusting parameters in real time to meet FDA compliance standards and reducing manual intervention by 50%.
Multi-Protocol Connectivity: With native support for multiple communication protocols, the G3EB HENF315768R1 simplifies integration in hybrid automation environments. A steel mill connected the module to both legacy Modbus-based drives and new Ethernet/IP-enabled sensors, achieving unified data management and reducing communication latency by 30%.
Reliability and Safety: Built with redundant power supply support and fault-tolerant design, the module ensures continuous operation in critical applications. Its built-in diagnostics monitor voltage, temperature, and I/O status, alerting operators to potential issues before they escalate. In a wastewater treatment plant, the module’s thermal overload protection prevented motor failures during peak operation, avoiding costly downtime and environmental compliance risks.
Manufacturing Automation: The ABB G3EB HENF315768R1 excels in factory automation, managing assembly lines, robotic cells, and quality control systems. An automotive OEM used the module to synchronize robotic welders with vision inspection systems, achieving ±0.1 mm precision and reducing defect rates by 20%. Its real-time data processing capabilities also enabled predictive maintenance of machinery, extending equipment lifespan by 15%.
Energy and Utilities: In power generation and distribution, the module controls generators, switchgear, and renewable energy inverters. A solar farm deployed the G3EB HENF315768R1 to manage power flow from inverters to the grid, using its adaptive control logic to optimize energy capture during varying weather conditions, resulting in a 5% increase in annual energy yield.
Process Industries: For chemical and petrochemical plants, the module ensures precise control of reactors, pumps, and valves. A refinery used its redundant configuration to maintain 99.99% uptime during a major maintenance shutdown, with hot standby functionality enabling seamless controller failover without disrupting critical processes.
G3EB HENF315768R1
- ABB G3EC: A higher-performance controller module with dual-core processing, suitable for large-scale DCS systems requiring advanced algorithms.
- ABB AI840: Analog input module compatible with the G3EB HENF315768R1, supporting high-precision temperature and pressure measurements.
- ABB DI830: Digital input module with surge protection, ideal for safety-critical applications like emergency shutdown systems.
- ABB CI854: Ethernet/IP communication module expanding the G3EB’s connectivity for IIoT integration and cloud analytics.
- ABB PM510: Compact PLC module for smaller-scale applications, complementing the G3EB in distributed control setups.
Pre-installation preparation: Mount the ABB G3EB HENF315768R1 on a grounded DIN rail in a control cabinet, ensuring adequate airflow (minimum 20 mm clearance). Connect power cables and I/O modules, using shielded twisted-pair wiring for communication lines to minimize EMI. Use ABB’s Control Builder M software to configure network settings, program control logic, and validate communication with field devices.
Maintenance recommendations: Regularly inspect the module’s LED indicators for power, communication, and fault status. In dusty environments, clean vents with compressed air to prevent overheating. Update firmware annually to access the latest security patches and protocol enhancements. ABB’s remote diagnostics service can monitor module health, such as processor load and memory usage, proactively identifying issues and reducing unplanned downtime by 35%. For redundant systems, test failover functionality biannually to ensure reliability.
ABB guarantees the G3EB HENF315768R1 to meet performance specifications for 36 months from delivery, backed by rigorous testing for EMC compliance, thermal stability, and mechanical endurance. The module’s design adheres to industry standards, ensuring compatibility and reliability in global applications. ABB’s global service network provides 24/7 technical support, including remote troubleshooting and on-site commissioning by certified technicians. For mission-critical systems, extended warranties and priority spare parts delivery are available, reflecting ABB’s commitment to delivering robust, future-proof automation solutions that maximize uptime and operational efficiency.
