DSDX451

Description

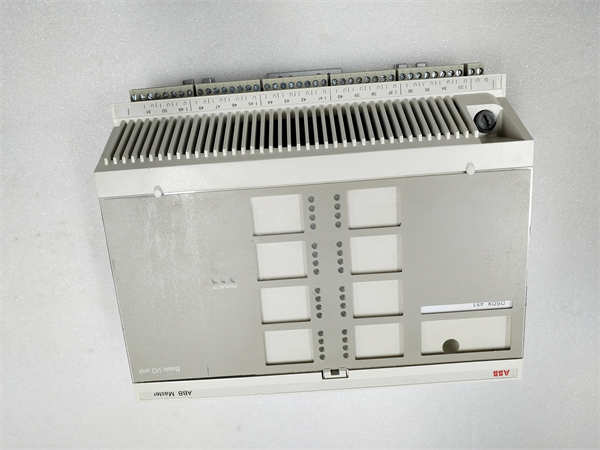

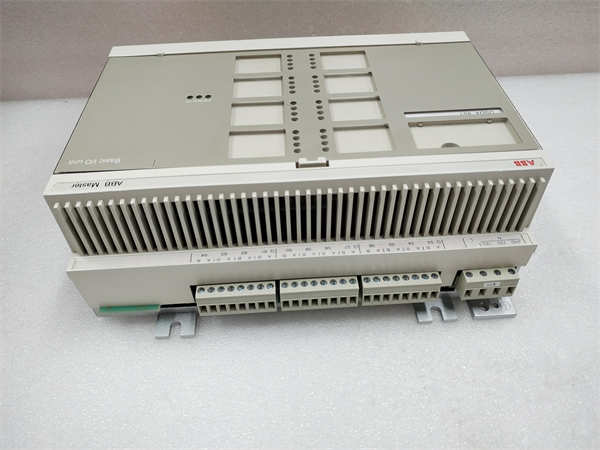

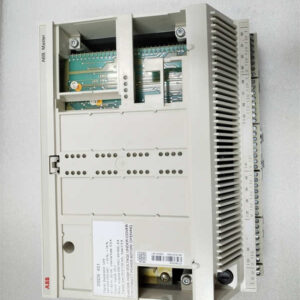

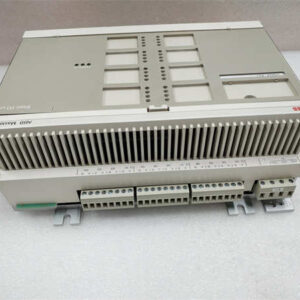

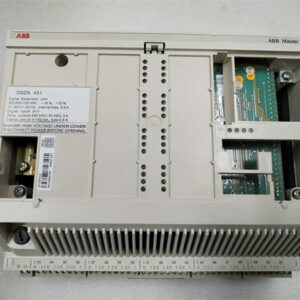

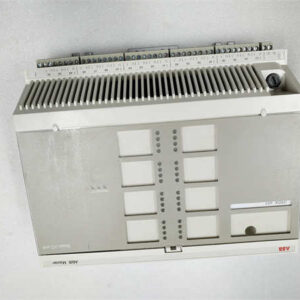

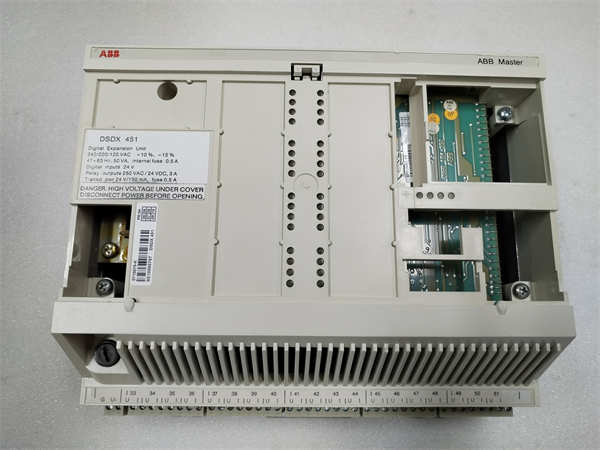

ABB DSDX451 input/output unit

Product Overview

ABB DSDX451 is an I/O unit that integrates digital input and digital output functions,widely used in ABB automation systems.It can receive digital signals from external devices and send control signals to external devices to achieve control and monitoring of on-site equipment.

Product Features

Combination I/O:integrates digital input and output functions,reducing the number of required I/O modules.

High reliability:Adopting industrial grade design,suitable for harsh industrial environments.

Isolation design:The input and output are isolated from each other to prevent signal interference.

Flexible configuration:Input and output types and quantities can be flexibly configured according to application requirements.

Modular design:Modular design,easy to install and maintain.

Product parameters

Digital input:

Number of channels:usually 20

Input voltage:24V DC

Input type:usually NPN type

Digital output:

Number of channels:usually 12

Output voltage:24V AC/DC

Output Type:Relay Contact

Working temperature:-20℃to+60℃

Protection level:IP20

Product specifications

Installation method:DIN rail installation

Connection method:screw terminal

series

DSDX451 belongs to the ABB S800 I/O series,which provides a range of input/output modules for connecting various field devices.

features

Flexible configuration:It can be configured through software to adapt to different application requirements.

Strong compatibility:Can be used in conjunction with various ABB controllers and PLCs.

High reliability:rigorously tested to ensure product quality.

effect

Data collection:Collect digital signals from on-site devices,such as switch status,sensor data,etc.

Signal output:Send control signals to external devices to control their operation.

Status monitoring:Monitor the status of on-site equipment,such as equipment operation status,fault status,etc.

purpose

Industrial automation:used in various industrial automation systems,such as process control,machine control,etc.

Building automation:used in building automation systems,such as access control,fire alarm,etc.

Process control:used in process control systems,such as temperature control,liquid level control,etc.

application area

The ABB DSDX451 digital input/output module is widely used in various industrial fields,such as:

Automobile manufacturing:production line monitoring,equipment control

Food and beverage:production process monitoring,quality control

Pharmaceutical:Production process control,data recording

Energy:Power monitoring,distribution automation

summary

ABB DSDX451 is a powerful and flexible I/O module widely used in the field of industrial automation.It can simultaneously process digital inputs and outputs,achieving comprehensive control and monitoring of on-site equipment.
