Description
The

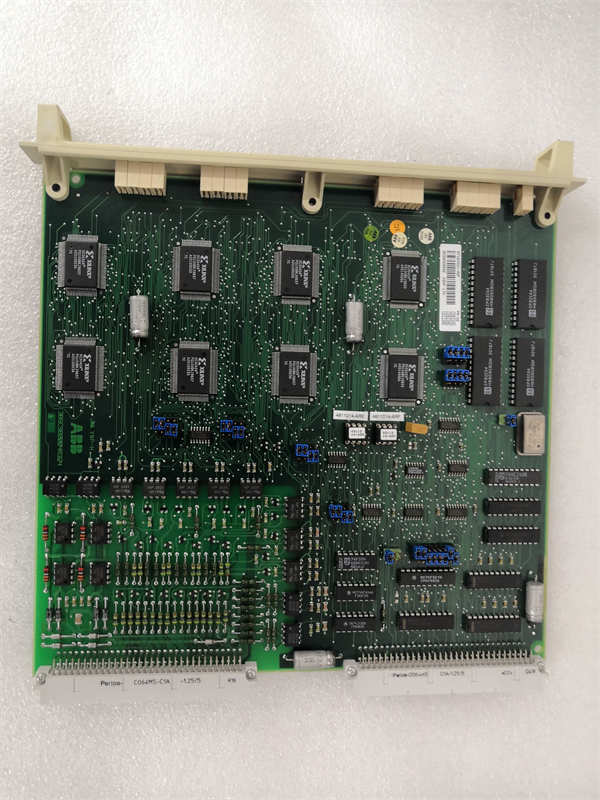

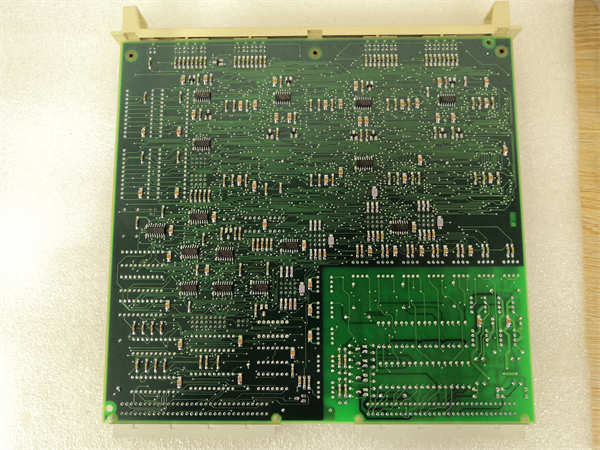

ABB DSDP170 (57160001-ADF) is a high-performance pulse counting board designed for industrial automation systems, specializing in precise positioning, speed, and frequency measurements. As part of ABB’s modular automation portfolio, the
DSDP170 supports up to four independent high-speed pulse counting channels (2.5 MHz max frequency), enabling real-time monitoring of rotating machinery, conveyor systems, and linear actuators. Its advanced features include direction detection (forward/reverse), software-selectable resolution (1x/2x/4x/8x), and wide input voltage compatibility (5–24 VDC). The
DSDP170 integrates on-board diagnostics and calibration tools, ensuring reliability in harsh industrial environments while simplifying maintenance. Ideal for applications requiring accurate motion control, the board is widely used in manufacturing, energy, and transportation sectors.
| Parameter |
Specification |
| Channels |
4 independent high-speed pulse inputs |
| Max Pulse Frequency |
2.5 MHz (with direction detection) |
| Input Voltage |
5–24 VDC (wide-range compatibility) |
| Resolution Modes |
1x, 2x, 4x, 8x (software-selectable) |
| Measurement Types |
Position, speed, frequency, event counting |
| Diagnostics |
On-board calibration, overflow/underflow error detection |
| Dimensions |
328.5 mm (depth) × 238.5 mm (width) × 18 mm (height) |
| Weight |
0.38 kg |
| Certifications |
CE, RoHS, UL/CSA (compliant with international safety standards) |
| Operating Temperature |
-10°C to +55°C |
DSDP170
- High-Speed Performance: Supports 2.5 MHz pulse frequency (25x higher than standard 100 kHz boards), enabling precise measurements in high-speed machinery.
- Multi-Function Design: Simultaneous position, speed, and frequency tracking across four channels, reducing system complexity.
- Flexible Configuration: Adjustable resolution modes and wide voltage input for compatibility with diverse sensors (encoders, tachometers).
- Reliability: Built-in diagnostics and isolation circuitry protect against noise and voltage spikes, ensuring stable operation in noisy environments.
- Compact & Lightweight: 0.38 kg design for easy installation in space-constrained systems.
Industries: Manufacturing (assembly lines), energy (turbine monitoring), transportation (conveyor systems), and machinery (robotics).
典型应用场景:
- Positioning Systems: Tracking linear actuator movement in automotive assembly lines.
- Speed Control: Monitoring conveyor belt speed in logistics centers.
- 案例: A steel mill reduced downtime by 15% using the DSDP170 to monitor four roller speeds in a rolling mill, enabling predictive maintenance through real-time speed deviation alerts.
Compared to similar pulse counting boards:
- Higher Frequency Handling: 2.5 MHz vs. standard 1–2 MHz in 竞品，suitable for high-speed applications.
- Integrated Diagnostics: On-board calibration and error detection eliminate the need for external modules.
- Space Efficiency: Compact design (328.5 × 238.5 mm) vs. bulkier alternatives, ideal for modular systems.
DSDP170
- Compatibility: Verify sensor output (voltage/current) and pulse frequency (≤2.5 MHz) match the DSDP170 specifications.
- Environment: Choose IP-rated enclosures (optional) for dusty/washdown environments.
- Scalability: Pair with ABB’s modular I/O systems (e.g., AC500 PLC) for expandable automation setups.
- Cost Efficiency: Leverage multi-channel capability to reduce hardware costs vs. single-channel solutions.
- Installation: Follow ABB’s wiring guidelines to avoid short circuits; ensure proper grounding for noise reduction.
- Calibration: Perform annual calibration (or enable auto-calibration) for sustained accuracy.
- Maintenance: Inspect connectors for wear; clean dust from vents quarterly.
- Safety: Disconnect power before module replacement; adhere to local electrical codes (e.g., NEC, IEC).
声明: Shanxi Xinyeda International Trade Co., Ltd. is your trusted partner for
ABB DSDP170 (57160001-ADF) and other automation spare parts. We offer genuine products, technical support, and tailored solutions. Visit
www.xydcontrol.com or contact us for competitive pricing and fast delivery.
