DSDP150 57160001-GF

Description

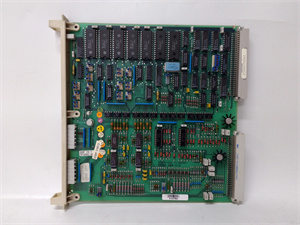

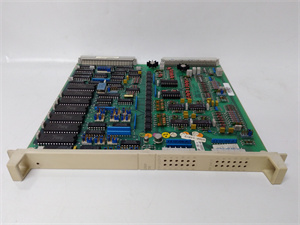

ABB DSDP150 57160001-GF pulse encoder input unit

Product Overview

ABB DSDP150 57160001-GF is a pulse encoder input unit designed specifically for ABB automation systems.It is mainly used to receive pulse signals from encoders,convert these signals into digital signals,and transmit them to the control system.Through this module,the position,speed,and other information of the encoder can be fed back to the control system,achieving precise control of the equipment.

Product Features

High precision:It can accurately collect the pulse signal of the encoder,ensuring the accuracy of position and velocity data.

Multifunctional:Supports multiple types of encoders,such as incremental encoders,absolute value encoders,etc.

Flexible configuration:It can be configured through software to adapt to different encoder types and application requirements.

Modular design:Modular design,easy to install and maintain.

High reliability:Industrial grade components are used,which have high reliability and stability.

Product parameters

Model:DSDP150 57160001-GF

Input signal:Pulse signal(A-phase,B-phase,Z-phase)

Output signal:digital signal

Interface type:usually terminal block

Working temperature range:-20℃~+60℃

Product specifications

Installation method:DIN rail installation

EMC Performance:Compliant with relevant EMC standards

series

DSDP150 is a module of ABB automation systems,typically used to expand the input functionality of the system.

effect

Data collection:Collect position,velocity,and other data from the encoder.

Signal conversion:Convert analog pulse signals into digital signals.

Feedback control:Feedback position and velocity information to the control system to achieve closed-loop control.

purpose

Motion control:used for motion control systems such as servo motors and stepper motors.

Position control:Used in situations that require precise position control,such as robots,machine tools,etc.

Speed control:Used in situations where precise speed control is required,such as conveyor belts,winding machines,etc.

application area

The ABB DSDP150 57160001-GF pulse encoder input unit is widely used in various industrial fields that require precise position and speed control,such as:

Automotive manufacturing:robot control,production line automation

Packaging Machinery:Packaging Machines,Filling Machines

Textile machinery:weaving machines,dyeing and finishing equipment

Woodworking machinery:CNC machine tools

summary

The ABB DSDP150 57160001-GF pulse encoder input unit is a high-precision and reliable industrial automation product.It provides precise position and velocity feedback to the control system by collecting encoder signals,thereby achieving precise control of the equipment.
