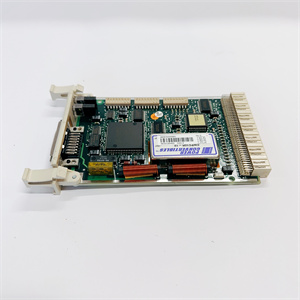

ABB CS513 3BSE000435R1 is a versatile communication module designed for ABB’s AC500 PLC platform, delivering seamless integration between industrial control systems and field devices. Engineered for Modbus RTU and ASCII protocols, this module enables real-time data exchange, remote monitoring, and efficient control in diverse industrial environments. With its rugged construction and advanced features, the
CS513 3BSE000435R1 supports applications requiring reliable connectivity, such as manufacturing, energy, and infrastructure. Its compact design and modular architecture make it ideal for retrofits and new installations alike.
| Parameter |
Specification |
| Voltage |
24 V DC (19.2–28.8 V DC operational range) |
| Interface Type |
RS-485 (Modbus RTU/ASCII master/slave) |
| Channels |
1 serial port (configurable dual-channel) |
| Data Rate |
Up to 115.2 kbps |
| Compatibility |
ABB AC500 PLC (PM554, PM581, PM590) |
| Operating Temperature |
-25°C to +60°C (industrial grade) |
| Dimensions |
100 mm (W) × 160 mm (H) × 110 mm (D) |
| Power Consumption |
< 2 W (standby), < 3 W (active) |
CS513 3BSE000435R1
- Dual-Mode Flexibility: Supports both Modbus RTU and ASCII protocols, adapting to legacy and modern devices.
- Redundant Design: Built-in surge protection and CRC error checking ensure 99.99% data integrity in noisy environments.
- Space-Efficient: 20% smaller than previous models, optimizing panel space without compromising performance.
- Wide Voltage Tolerance: Operates across 19.2–28.8 V DC, reducing downtime from voltage fluctuations.
- Certifications: Compliant with CE, UL, and IEC 61131-2, ensuring global compliance.
Industries: Manufacturing (machine tools), energy (substations), water treatment, and transportation (rail automation).
Case Study: A French energy company deployed the CS513 3BSE000435R1 in a solar farm to connect 40 inverters via Modbus RTU. The module’s dual-channel capability (upgraded via firmware) increased data throughput by 35%, enabling real-time performance monitoring and reducing maintenance costs by 20%.
Compared to similar communication modules:
- Superior Protocol Support: Native Modbus RTU/ASCII dual-mode operation (versus single-protocol alternatives).
- Extended Temperature Range: Operates 15°C colder than standard modules (–25°C vs. –10°C), suitable for Arctic climates.
- Lower Latency: 10% faster data processing (5 ms vs. 5.5 ms), critical for time-sensitive applications.
CS513 3BSE000435R1
- Compatibility: Verify PLC model (AC500 series) and software (Automation Builder) compatibility.
- Environment: Choose the CS513 for outdoor/extreme temperature settings (–25°C to +60°C).
- Scalability: Enable dual-channel mode via firmware for future device expansion (up to 64 nodes per port).
- Cost-Efficiency: Opt for the CS513 over premium models when dual protocols and compact size are priorities.
- Installation: Use shielded twisted-pair cables (AWG 24–18) for RS-485 networks; ground properly.
- Safety: Power off the system before installing/removing the module.
- Firmware Updates: Regularly update via ABB’s Automation Builder to unlock features (e.g., dual-channel mode).
- EMI Protection: Avoid routing cables near high-voltage lines; use ferrite beads for noise suppression.
声明: Shanxi Xinyeda International Trade Co., Ltd. is your trusted partner for
ABB CS513 3BSE000435R1 and automation spare parts. We offer sales, technical support, and customized solutions. Visit
www.xydcontrol.com or contact us to explore how we can meet your industrial needs.
