Description
The

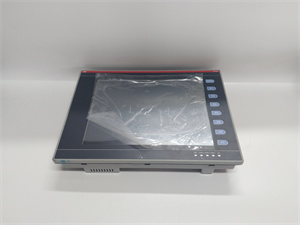

CP450-T-ETH serves as a centralized interface for industrial systems, offering a 64K-color TFT touchscreen (10.4-inch) for real-time data visualization, alarm management, and recipe control. Its Ethernet (10/100 Mbps) and multi-protocol support (RS232/485/422) enable connectivity with controllers, sensors, and cloud platforms. Built with an IP65-rated enclosure, it withstands dust, water, and extreme temperatures (-20°C to +60°C). The modular design allows easy upgrades, while seven configurable function keys and a sliding menu enhance user efficiency.
| Parameter |
Specification |
| Display |
10.4-inch TFT touchscreen, 64K colors |
| Communication |
Ethernet (10/100 Mbps), RS232/485/422 (3 ports) |
| Power Supply |
24 VDC (4.8W max consumption) |
| Operating Temperature |
-20°C to +60°C (industrial grade) |
| Storage Temperature |
-40°C to +85°C |
| Enclosure Rating |
IP65/NEMA 4 (water/dust proof) |
| Dimensions |
297 mm (W) × 222 mm (H) × 52 mm (D) |
| Weight |
1.9 kg |
| Certifications |
CE, RoHS compliant |
| Key Features |
Modular design, 7 configurable keys, alarm/trend logging |
CP450-T-ETH
- Industrial-Grade Durability: IP65 rating and wide temperature range ensure reliability in harsh conditions (e.g., factories, chemical plants).
- Intuitive Interface: High-resolution touchscreen with sliding menus and shortcut keys for efficient operation.
- Flexible Connectivity: Supports Ethernet, RS232/485/422, and integration with ABB’s 800xA/DCS systems.
- Data Management: Built-in alarm management, recipe storage, and trend analysis for process optimization.
- Modular Design: Easy maintenance and scalability via replaceable components.
Industries:
- Manufacturing: Machine control, conveyor systems.
- Energy & Utilities: Power plant monitoring, water treatment.
- Chemical & Petrochemical: Reactor control, safety systems.
- Building Automation: HVAC and security management.
Case Study: A food processing plant in Europe deployed CP450-T-ETH units to control packaging lines. The HMI’s recipe management and real-time monitoring reduced downtime by 15% and improved product consistency.
Compared to similar industrial HMIs:
- Superior Connectivity: Native Ethernet + multi-protocol support (vs. limited port options in 竞品).
- Durability: IP65 rating (vs. IP54 in many alternatives).
- User Experience: Larger touchscreen (10.4-inch vs. 7-8-inch typical) and configurable keys for faster operation.
CP450-T-ETH
- Environment: Ensure IP65 rating matches site conditions (e.g., wet/dusty environments).
- Connectivity: Verify protocol compatibility (e.g., Modbus RTU/TCP, ABB proprietary systems).
- Scalability: Plan for future expansion (supports multi-screen networks).
- Budget: Balance features (e.g., touchscreen size, Ethernet vs. serial-only) with project needs.
-
Installation: Mount vertically (IP65 compliance) and avoid direct sunlight.
-
Calibration: Regularly calibrate the touchscreen (system menu > F4-Set).
-
Power: Use a stabilized 24 VDC supply; avoid voltage spikes.
-
Software: Update firmware via ABB’s CP400Soft for compatibility and security.
-
Grounding: Earth the unit to prevent EMI interference.
Shanxi Xinyeda International Trade Co., Ltd. is your trusted partner for
ABB CP450-T-ETH and automation 备件. We offer sales, technical support, and customized solutions. Visit
www.xydcontrol.com or contact us for expert assistance.
