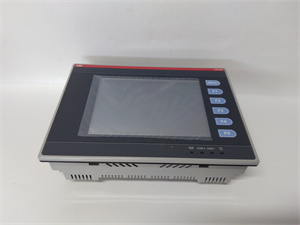

CP430T-ETH

Description

1. Product Description

2. Product Parameters

Parameter	Specification
Display	5.7-inch TFT LCD, 320×240 pixels, 64k colors
Input Method	Resistive touchscreen + 6 physical keys (1 menu, 5 function)
Power Supply	24 V DC ±15% (20.4–27.6 V DC), ≤20 W
Communication Interfaces	– Ethernet (10/100 Mbps) – Serial: RS232/RS485 (Port 1), RS232/RS422/RS485 (Port 2)
Storage	512 KB RAM (user data), 4 MB Flash (user programs), 16 MB RAM (system)
Dimensions (W×H×D)	195 mm × 145 mm × 60 mm
Weight	0.86 kg
Operating Temperature	0°C to 50°C (storage: -10°C to 60°C)
Certifications	CE, UL, CSA, EN 61000-6-2 (EMC compliant)

CP430T-ETH

3. Advantages and Features

• Intuitive User Experience: The touchscreen interface and physical function keys reduce operator error, with studies showing a 25% improvement in task completion speed compared to text-only HMIs. The 64k color display enhances data clarity, making it easier to identify alarms or trends in real time.
• Flexible Connectivity: Support for multiple protocols and ports allows CP430T-ETH to integrate with legacy and modern systems alike. In a food processing plant, the panel was used to connect to both older Modbus RTU-based mixers and new Ethernet-connected packaging machines, streamlining control across diverse equipment.
• Rugged Design: Built to withstand vibrations (up to 5 g) and dust (IP20 protection), the panel ensures reliable operation in manufacturing environments. Its wide temperature range eliminates the need for additional cooling in moderate industrial settings.
• Security Features: Password protection with 9 user levels prevents unauthorized access, ensuring compliance with safety standards in regulated industries like pharmaceuticals.

4. Application Areas and Application Cases

• Manufacturing: Machine control in automotive assembly lines, plastic injection molding, and material handling systems.
• Process Automation: Monitoring tanks, valves, and pumps in chemical or water treatment plants.
• Robotics: Programming and real-time status tracking for robotic arms in logistics and warehousing.

5. Competitive Comparison

Compared to basic HMIs, ABB CP430T-ETH offers superior protocol flexibility and expandability, supporting both serial and Ethernet connections without additional gateways. Its combination of touch and physical keys caters to operators who prefer tactile feedback, a feature lacking in some competitor models focused solely on touchscreens. While some budget HMIs may offer similar display sizes, they often lack the robust environmental ratings (e.g., wide temperature range) and security features that make CP430T-ETH suitable for demanding industrial applications.

CP430T-ETH

6. Selection Recommendations

• Display Needs: Choose CP430T-ETH for applications requiring color visualization and touch interaction; opt for monochrome panels only if cost is a strict priority.
• Connectivity Requirements: Ensure the panel’s protocol support (e.g., Modbus, Profibus) matches your existing control system. For future-proofing, prioritize Ethernet-enabled models like this one.
• Environmental Conditions: Verify that the operating temperature (0°C to 50°C) and IP rating (IP20) are suitable for your facility. For dusty or wet environments, consider adding protective enclosures.
• Scalability: Use the CF card slot to expand storage for complex HMI projects, such as those requiring detailed trend logging or recipe management.

7. Precautions

• Installation: Mount the panel in a control cabinet with adequate ventilation to avoid overheating. Ensure proper grounding to minimize EMI interference with communication signals.
• Wiring: Separate power cables from signal cables to prevent noise. For serial connections, use shielded twisted-pair cables and follow ABB’s pinout diagrams to avoid polarity errors.
• Software Management: Regularly back up HMI projects to the CF card or a remote server. Update the firmware only using ABB-approved tools to maintain compatibility with your control system.
• Maintenance: Clean the touchscreen with a soft, lint-free cloth and non-abrasive cleaner. Inspect physical keys for wear and tear, replacing them if unresponsive.
