Description
The
CMA120 is a compact and versatile industrial automation component designed by ABB, a global leader in power and automation technologies. As part of ABB’s
Synpol D series, the
CMA120 serves as a basic controller panel unit, offering integrated control and monitoring capabilities for a wide range of industrial applications. This model is engineered to deliver reliable performance in harsh environments while maintaining ease of use and cost-effectiveness.
The CMA120 features a built-in CPU, configurable I/O modules, and a power supply, making it an all-in-one solution for simple automation tasks. It supports multiple communication protocols, including RS-232 and RS-485, enabling seamless integration with legacy and modern control systems. Its rugged design ensures durability in extreme temperatures and high-vibration settings, making it ideal for industries such as manufacturing, energy, and marine automation.
| Parameter |
Specification |
| Voltage Supply |
24 V DC (±10%) or 120 V AC |
| Power Consumption |
≤5 W |
| CPU |
16-bit microprocessor |
| Memory |
128 KB EEPROM, 32 KB RAM |
| I/O Channels |
16 digital inputs, 12 digital outputs, 4 analog inputs, 2 analog outputs |
| Communication |
RS-232, RS-485 |
| Operating Temperature |
-20°C to +60°C (-4°F to +140°F) |
| Dimensions |
100 mm (W) x 150 mm (H) x 50 mm (D) |
| Certifications |
CE, RoHS |

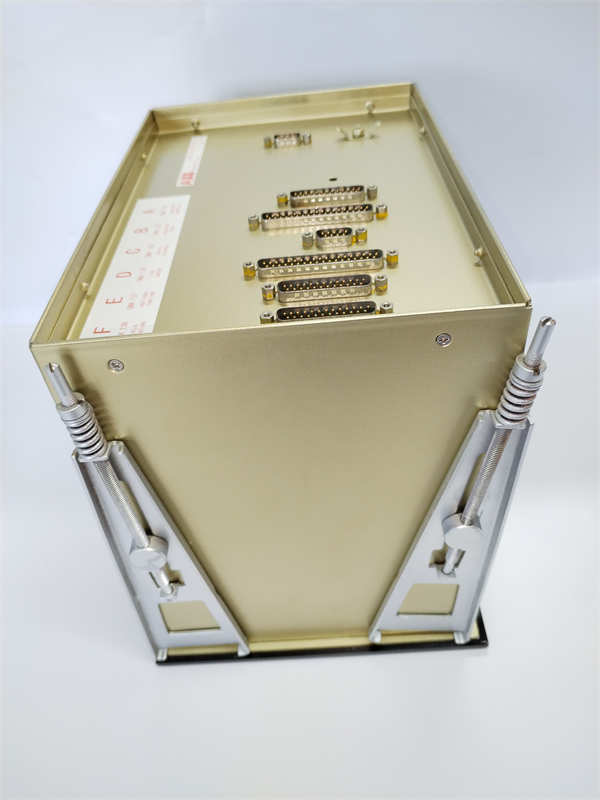

CMA120
- Compact Design: The CMA120’s space-saving form factor (100x150x50 mm) optimizes cabinet space, making it suitable for applications with limited room.
- Integrated Functionality: Combines CPU, I/O, and power supply into a single unit, reducing complexity and installation time.
- Reliability: Built with industrial-grade components, it ensures stable operation in environments with high humidity, dust, or vibrations.
- Flexible Communication: Supports RS-232 and RS-485 protocols for seamless integration with PLCs, HMIs, and other industrial devices.
- Cost-Effective: Offers advanced automation capabilities at a competitive price point, ideal for small to medium-sized projects.
The CMA120 is widely used in:
- Manufacturing: Machine control, conveyor systems, and quality inspection.
- Energy: Power plant auxiliary systems and renewable energy monitoring.
- Marine: Shipboard automation, such as bilge pump control and generator management.
- Process Industries: Chemical mixing and water treatment plants.
A European manufacturing plant integrated the CMA120 into its packaging line to control conveyor belts and robotic arms. The module’s multi-protocol support allowed it to interface with both legacy PLCs and modern sensors, reducing integration time by 30%. Real-time monitoring via RS-485 improved process efficiency by 15%, while its compact design freed up 40% of cabinet space.
The CMA120 stands out from similar industrial controllers through:
- Integrated Power Supply: Eliminates the need for external power modules, reducing system complexity.
- Wide Voltage Range: Supports both 24 V DC and 120 V AC, offering flexibility in diverse electrical environments.
- Rugged Construction: Withstands extreme temperatures (-20°C to +60°C) and vibrations, outperforming many competitors in harsh conditions.

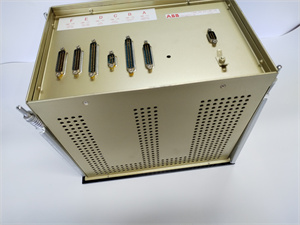

CMA120
When choosing the CMA120, consider:
- Compatibility: Verify RS-232/RS-485 compatibility with your existing control system.
- Environmental Needs: Ensure the operating temperature range matches your facility’s conditions.
- Scalability: While suitable for simple tasks, evaluate if future expansions require more advanced I/O capabilities.
- Budget: Balance initial costs with long-term reliability and energy efficiency.
- Installation:
- Follow ESD precautions and secure grounding to prevent signal interference.
- Use ABB’s programming tools for configuration and firmware updates.
- Maintenance:
- Regularly inspect connections and clean dust from vents.
- Update firmware periodically to access new features and security patches.
- Safety:
- Ensure compliance with local electrical codes and safety standards.
- Avoid overloading the I/O channels beyond their rated capacities.
