CI858K01 3BSE018135R1

Description

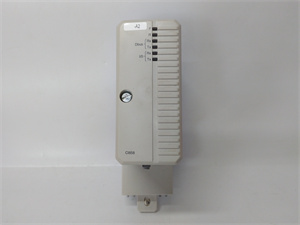

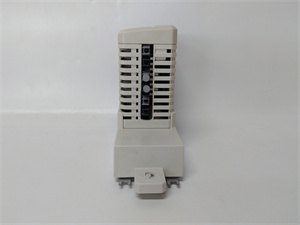

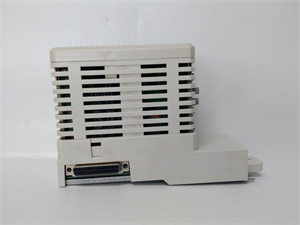

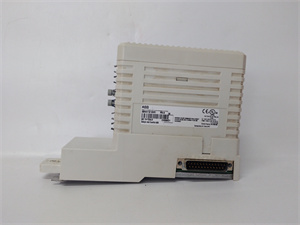

ABB CI858K01 3BSE018135R1 driver bus interface module

Product Overview

ABB CI858K01 3BSE018135R1 is a communication interface module designed specifically for drive equipment such as ABB inverters.It communicates with ABB frequency converters through the DriveBus protocol to achieve parameter configuration,status monitoring,and control of the frequency converters.This module plays an important bridging role in ABB automation systems,tightly connecting the frequency converter with the control system.

Product Features

DriveBus protocol:a communication protocol designed specifically for ABB inverters to ensure efficient communication with ABB inverters.

Modular design:Modular design,easy to install and maintain.

Flexible configuration:It can be configured through software to adapt to different frequency converter models and communication requirements.

High reliability:Industrial grade components are used,which have high reliability and stability.

Product parameters

Model:CI858K01 3BSE018135R1

Communication protocol:DriveBus

Interface type:dedicated interface

Physical layer:dedicated physical layer

Working temperature range:-20℃~+60℃

Product specifications

Installation method:DIN rail installation

EMC Performance:Compliant with relevant EMC standards

series

CI858K01 is a module of ABB automation systems,typically used to expand the communication capabilities of the system.

effect

Connect the frequency converter:Connect the ABB frequency converter to the control system.

Parameter configuration:Configure the parameters of the frequency converter,such as frequency,torque,protection,etc.

Status monitoring:Real time monitoring of the operating status of the frequency converter,such as current,voltage,temperature,etc.

Control instruction transmission:transmit the instructions of the control system to the frequency converter to achieve control of the frequency converter.

purpose

Motor control:used to control various types of motors,such as AC motors,DC motors,etc.

Process control:Used in the process industry to control equipment such as pumps,fans,compressors,etc.

Automated production line:used for speed control,position control,etc.of automated production lines.

application area

The CI858K01 driver bus interface module is widely used in various industrial fields that require precise control of motors.It can seamlessly integrate with ABB automation systems to achieve precise control of motor drive systems.

summary

The ABB CI858K01 3BSE018135R1 driver bus interface module is a communication interface module designed specifically for ABB frequency converters.
