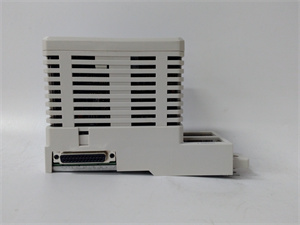

CI854AK01 3BSE030220R1

Description

Analysis of ABB CI854AK01 3BSE030220R1 PROFIBUS-DP/V1 Interface Product

Product Overview

ABB CI854AK01 3BSE030220R1 is a PROFIBUS-DP/V1 communication interface module mainly used in ABB automation systems to connect field devices that support the PROFIBUS-DP protocol.It can achieve bidirectional data communication between on-site devices and control systems,thereby realizing monitoring and control of on-site devices.

Product Features

PROFIBUS-DP/V1 protocol:Compliant with the PROFIBUS-DP/V1 protocol standard,ensuring compatibility with other devices that support the protocol.

Redundant interface:Usually equipped with two DB9 interfaces,providing redundant functions and improving system reliability.

Modular design:Modular design,easy to install and maintain.

Flexible configuration:It can be configured through software to adapt to different on-site devices and communication needs.

High reliability:Industrial grade components are used,which have high reliability and stability.

Product parameters

Communication protocol:PROFIBUS-DP/V1

Interface type:DB9 interface(usually two)

Physical layer:Twisted pair physical layer

Working temperature range:-20℃~+60℃

Product specifications

Installation method:DIN rail installation

EMC Performance:Compliant with relevant EMC standards

series

CI854AK01 is a module of ABB automation systems,typically used to expand the communication capabilities of the system.

effect

Connect on-site devices:Connect on-site devices that support the PROFIBUS-DP protocol(such as sensors,actuators,transmitters,etc.)to the control system.

Data collection:Collect data from on-site devices and transmit it to the control system.

Control instruction transmission:transmit the instructions of the control system to the on-site equipment to achieve control of the on-site equipment.

purpose

Process industry:automation control in industries such as petrochemicals,power,metallurgy,etc.

Infrastructure:Automated control of infrastructure such as water treatment and sewage treatment.

Building automation:Control of building automation systems.

application area

The CI854AK01 PROFIBUS-DP/V1 interface is widely used in various industrial fields that require process control.It can seamlessly integrate with ABB automation systems to achieve real-time monitoring and control of complex industrial processes.

summary

The ABB CI854AK01 3BSE030220R1 PROFIBUS-DP/V1 interface is a powerful and highly reliable industrial automation product.
