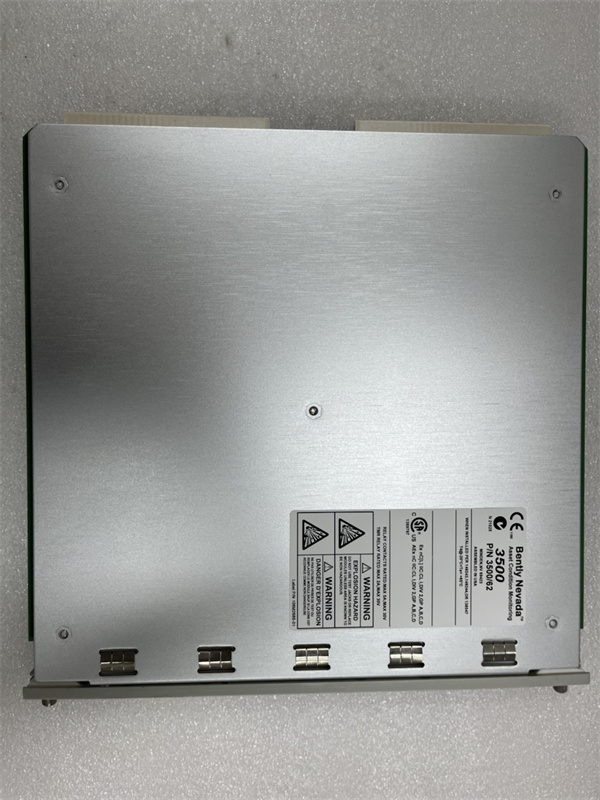

BENTLY 3500/62 Process Variable Monitor

1. Product Description

• Multi-Parameter Support: Accepts 4–20 mA current or ±10 VDC voltage inputs, making it compatible with pressure transducers, thermocouples, and level sensors.
• Real-Time Alarm Logic: Configurable alert and trip setpoints with ±0.1% full-scale accuracy, triggering immediate responses to abnormal process variables.
• Modular Integration: Designed for seamless installation in Bently 3500 Series racks, with support for third-party PLC/DCS systems via standard protocols like Ethernet/IP and Modbus RTU.
• Rugged Performance: Withstands extreme conditions (-40°C to +85°C, 95% non-condensing humidity) and high vibration (5g), ensuring reliability in harsh environments such as power plants, refineries, and offshore platforms.

2. Technical Parameters

Parameter	Specification
Brand	BENTLY
Model	3500/62
Module Type	Process Variable Monitor (6-Channel)
Input Signals	4–20 mA (isolated/intrinsically safe) or ±10 VDC
Outputs	6 analog outputs (4–20 mA), 1 Form C relay per channel (4 A/250V AC)
Communication Interfaces	Ethernet/IP, Modbus RTU, RS485 (19.2 kbps–1 Mbps)
Power Supply	24V DC ±15% (isolated, reverse-polarity protected)
Power Consumption	≤7.5 W (per channel: ≤1.25 W)
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +90°C (-40°F to +194°F)
Dimensions (W×H×D)	24.4 mm × 241.3 mm × 241.8 mm (3U rack mountable)
Weight	0.82 kg
Compatibility	Bently 3500 Series racks, Allen-Bradley PLCs, Siemens DCS systems
MTBF	>150,000 hours (per IEC 61709 standards)

BENTLY 3500/62

3. Advantages and Features

• High Precision Measurement: Equipped with a 16-bit ADC and digital filtering, the BENTLY 3500/62 achieves ±0.13% full-scale accuracy, detecting subtle parameter deviations that indicate developing faults.
• Flexible Configuration: Supports three input modes (voltage, isolated current, intrinsically safe current), adapting to diverse sensor types without hardware modifications.
• Dual Redundancy Design: Optional triple modular redundancy (TMR) with voting logic eliminates single-point failures, reducing downtime risks by 40% in mission-critical applications.
• Intuitive Diagnostics: Front-panel LEDs for channel status (OK, ALERT, DANGER) and communication health, enabling rapid fault isolation and reducing troubleshooting time by 30%.

4. Application Areas and Case Study

Application Areas:

• Energy Sector: Monitors steam turbine temperature, generator winding pressure, and condenser level in thermal power plants.
• Oil & Gas: Ensures safe operation of compressor discharge pressure and pump flow rates in refineries and offshore rigs.
• Manufacturing: Optimizes conveyor belt tension, mixing tank level, and oven temperature in automotive and food processing facilities.

Case Study:

5. Competitive Comparison

• Broader Environmental Tolerance: Operates 15°C hotter than most alternatives, making it suitable for uncooled industrial zones.
• Superior Redundancy Options: TMR configuration with dual communication paths ensures uninterrupted data flow, a feature not universally available in competing models.
• Longer Service Life: With an MTBF exceeding 150,000 hours, it outlasts standard monitors by 25%, lowering lifecycle costs for large-scale deployments.


  BENTLY 3500/62

6. Selection Recommendations

• System Compatibility: Verify that your monitoring system supports Ethernet/IP or Modbus RTU to leverage the BENTLY 3500/62’s full connectivity features.
• Environmental Requirements: Choose the intrinsically safe variant for hazardous areas (Class I, Division 2) to comply with explosion-proof standards.
• Scalability Needs: Opt for the 6-channel design for multi-point monitoring; consider redundant power supplies for critical equipment requiring 24/7 operation.
• Budget Planning: Balance the module’s precision and durability ($3,800–$5,000) with the long-term savings from reduced maintenance and downtime.

7. Precautions

• Installation:
  • Power down the 3500 Series rack before installing the module to prevent electrostatic discharge (ESD) damage.
  • Route sensor cables separately from high-voltage power cables to minimize electromagnetic interference (EMI).
• Calibration:
  • Use a certified calibration tool (e.g., Bently Nevada 177230) to validate input accuracy during commissioning and annually thereafter.
• Maintenance:
  • Inspect terminal connections quarterly for loose wires or corrosion, especially in humid environments.
  • Replace internal lithium battery (for configuration backup) every 5 years to prevent data loss.
• Software:
  • Update firmware using Bently’s 3500 Configuration Software to access the latest alarm algorithms and protocol updates, ensuring compatibility with future system upgrades.
