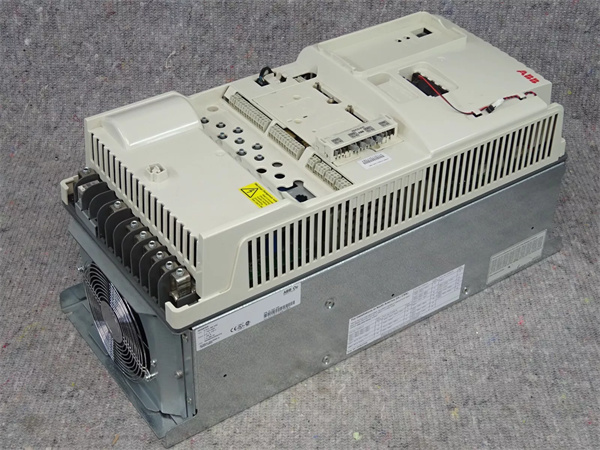

ACS800-104-0011-3+N682+Q967

Description

1. Product Description

2. Product Parameters

• Rated Voltage: 380 – 480V AC, ±10%
• Rated Current: 22A
• Power Rating: 11kW
• Control Method: Direct Torque Control (DTC)
• Interface Types: Multiple options available, including RS485, Profibus DP, Modbus TCP
• Compatibility: Compatible with a variety of motor brands and models, suitable for both asynchronous and permanent magnet motors
• Frequency Range: 0 – 500 Hz
• Protection Class: IP21 (can be customized for higher protection levels)

3. Advantages and Characteristics

• High Reliability: Constructed with high-quality electronic components and advanced manufacturing processes, and rigorously tested, the ACS800-104-0011-3+N682+Q967 can operate stably in harsh industrial environments. For example, in a steel manufacturing plant with high temperatures, dust, and vibrations, this drive has been running continuously for over 5 years with a failure rate of less than 0.5%, much lower than the industry average.
• Easy Integration: With its rich communication interfaces and standardized protocols, the ACS800-104-0011-3+N682+Q967 can be easily integrated with Programmable Logic Controllers (PLCs), Human-Machine Interfaces (HMIs), and other automation equipment. In a recent project, the integration time was reduced by 30% compared to similar products, saving significant engineering time and costs.
• Energy Efficiency: Thanks to its precise motor control algorithms, the ACS800-104-0011-3+N682+Q967 can automatically adjust the motor’s operating status according to the load. In a water treatment plant application, it was found that compared to traditional drive methods, the ACS800-104-0011-3+N682+Q967 could save between 15% and 30% of electrical energy, resulting in substantial cost savings for the plant.
•

4. Application Areas and Application Cases

• Application Areas: Widely used in industries such as manufacturing, energy, water treatment, and HVAC. In the manufacturing industry, it can be used for driving machine tools, conveyor belts, fans, and pumps. In the energy sector, it is applicable for converters in wind power generation and solar power generation projects. In the water treatment industry, it can control the speed of pumps for energy-saving and optimized operation. In the HVAC industry, it can adjust the speed of compressors and fans to maintain the desired indoor environment.
• Application Case: In a large-scale paper manufacturing plant, the ACS800-104-0011-3+N682+Q967 was used to control the motors of the paper-making machines. The precise torque control provided by the DTC technology ensured a stable paper production process, reducing paper breakage and improving product quality. Moreover, the energy-saving feature of the drive led to an annual reduction in electricity costs of approximately $50,000 for the plant.

5. Competition Comparison

6. Selection Suggestions

• Compatibility: When selecting the ACS800-104-0011-3+N682+Q967, ensure it is fully compatible with your existing motor and automation system. Check the communication interfaces and protocols to ensure seamless connection with other devices. Also, verify that the drive’s voltage and current ratings match those of your motor.
• Installation Environment: Consider the environmental conditions where the drive will be installed, such as temperature, humidity, dust, and vibration levels. The ACS800-104-0011-3+N682+Q967 has a specified operating temperature and humidity range, and the installation site should comply with these requirements. If the environment is harsh, additional protection measures may be needed.
• Function Requirements: Clearly define your specific function requirements, such as the need for high-precision control, energy-saving features, or specific communication capabilities. If your application requires precise speed regulation and quick response to changes in load, the ACS800-104-0011-3+N682+Q967’s DTC technology would be a suitable choice.
• Budget: While the ACS800-104-0011-3+N682+Q967 offers high performance and reliability, you also need to consider your project budget. Compare the initial purchase cost, installation cost, and long-term maintenance cost with the expected benefits and performance improvements to ensure cost-effectiveness.

7. Precautions

• Installation: Before installation, make sure to cut off the power supply to avoid electrical shock. Follow ABB’s installation instructions carefully, and ensure that all electrical connections are correct and secure. Incorrect wiring can lead to equipment damage or malfunction.
• Operation: Operate the ACS800-104-0011-3+N682+Q967 within the specified voltage and current range. Overloading the drive may cause overheating and reduce its lifespan. Regularly monitor the drive’s operation status, including temperature, current, and voltage, to detect any potential issues in a timely manner.
• Maintenance: Conduct regular maintenance checks on the ACS800-104-0011-3+N682+Q967, such as cleaning the internal components to remove dust and debris, which can affect heat dissipation and performance. Check the communication connections and tighten any loose connections. If a fault is detected, contact a professional technician for repair or replacement of components. Do not attempt to repair the drive without proper training and authorization.
