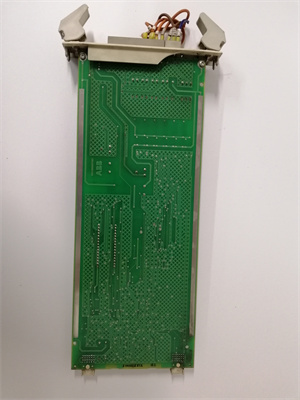

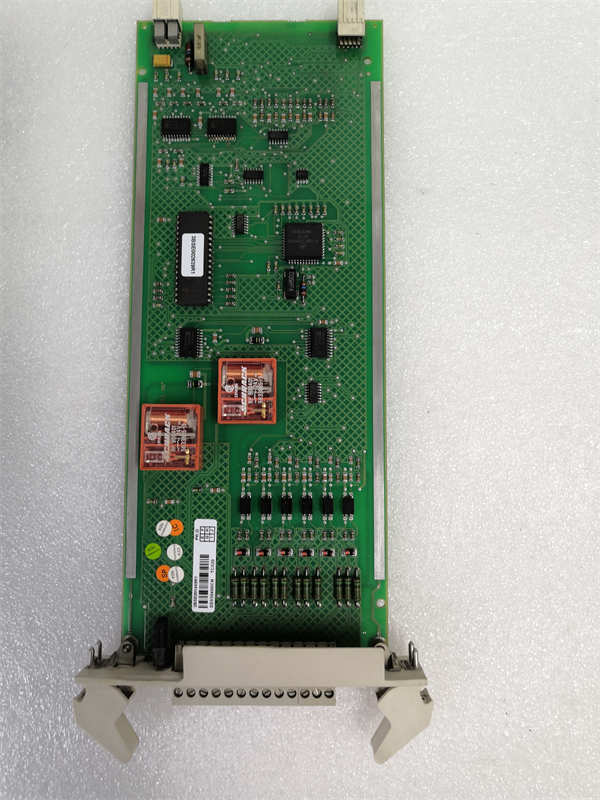

ABB TC520

Description

ABB TC520 System Status Collector Product Description

Product Overview

ABB TC520 is an intelligent device designed specifically for system status monitoring,widely used in ABB automation systems.It can collect,process,and transmit various system parameters in real-time,providing users with accurate and reliable system operation status information,thereby achieving effective monitoring and management of the system.

TC520 ABB

Product Features

Multi parameter acquisition:supports the acquisition of multiple system parameters,such as voltage,current,temperature,vibration,etc.

High precision:Using high-precision sensors to ensure the accuracy of data collection.

Real time monitoring:Real time data transmission and monitoring are achieved through high-speed communication interfaces.

Flexible configuration:The collection parameters and communication methods can be flexibly configured according to user needs.

High reliability:Adopting industrial grade design,it has good anti-interference and stability.

Easy to integrate:It can be easily integrated into ABB automation systems to achieve seamless integration.

Product parameters

Number of collection channels:8/16/32 channels

Sampling rate:1000 times/second

Input voltage range:0-10V/4-20mA

Communication interface:Ethernet/Modbus

Working temperature:-20℃~+60℃

Working humidity:5%~95%RH

Size:100mm×100mm×50mm

Weight:0.5kg

Product specifications

Shell material:metal

Protection level:IP30

Power supply:24V DC

Installation method:DIN rail

TC520 ABB

Product series

TC520 belongs to the communication module series in ABB automation systems,and is used in conjunction with other ABB automation equipment to form a complete automation solution.

Product function

Real time monitoring:Continuously monitor the operating status of the system and promptly detect potential faults.

Data analysis:Analyze the collected data and evaluate system performance.

Fault diagnosis:By analyzing data,quickly locate the cause of the fault and improve maintenance efficiency.

Optimization control:Based on real-time data,optimize control strategies to improve system efficiency.

Product Usage

Industrial automation:suitable for monitoring and controlling various industrial processes,such as power,chemical,metallurgical,etc.

Building automation:used for monitoring and controlling building equipment such as air conditioning,lighting,fire protection,etc.

Data Center:Used to monitor the operational status of data center equipment and ensure data security.

application area

Process control:Monitor process variables to achieve closed-loop control.

Equipment maintenance:Regularly monitor the operating status of equipment and predict faults in advance.

Energy management:Monitor energy consumption and optimize energy utilization.

Safety monitoring:Monitor hazardous factors to ensure production safety.

TC520 ABB

summary

The ABB TC520 system status collector is a powerful and highly reliable monitoring device that can provide comprehensive status monitoring solutions for various automation systems.Real time collection and analysis of system operation data can help improve the reliability,availability,and efficiency of the system.
