Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | SPAJ140 |
| Manufacturer | ABB |
| Product Category | Numerical Protection Relay |
| Application | Power Distribution, Motor Protection, Transformer Control |
| Voltage Range | 100–240 V AC (1-phase), 230–415 V AC (3-phase) |
| Current Range | 1–5 A (secondary current, CT input) |
| Communication Protocols | Modbus RTU, PROFIBUS DP, IEC 61850 (optional) |
| Protection Functions | Overcurrent, Earth Fault, Undervoltage, Overvoltage, Phase Unbalance |
| Control Functions | Circuit Breaker Tripping, Auto-Reclosing, Event Logging |
| Operating Temperature | -25°C to +60°C |
| Dimensions (W×H×D) | 144 mm × 210 mm × 200 mm |
| Mounting Method | DIN Rail or Panel Mount |
| Certification | IEC 61000-6-2, CE, UL, RoHS |
Product Introduction

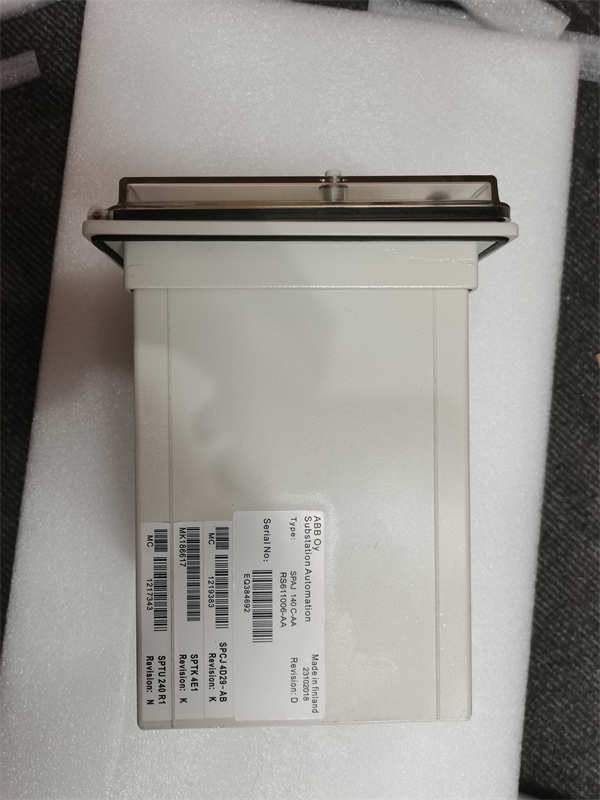

The ABB SPAJ140 is a compact yet powerful numerical protection relay designed to safeguard medium-voltage (MV) and low-voltage (LV) power systems in industrial and commercial applications. As part of ABB’s RELION® series, the SPAJ140 combines advanced microprocessor-based protection algorithms with user-friendly configuration, making it an ideal solution for motor control centers, distribution substations, and renewable energy installations. This relay serves as a critical component in preventing equipment damage and minimizing downtime by detecting and responding to faults such as overcurrent, earth faults, and voltage irregularities.
Engineered for flexibility, the ABB SPAJ140 supports a wide range of voltage and current inputs, allowing seamless integration with transformers, motors, and feeders. Its modular design includes configurable I/O channels and optional communication modules for Modbus RTU, PROFIBUS DP, or IEC 61850, enabling remote monitoring and control via SCADA systems. The relay’s intuitive HMI and software tools (e.g., ABB Relion® Manager) simplify setup, reducing commissioning time by up to 30% compared to traditional electromechanical relays.
The SPAJ140 enhances system reliability through its high-speed fault detection (≤50 ms response time) and comprehensive self-diagnostic capabilities, which monitor internal hardware and communication integrity. By providing real-time data on power parameters (voltage, current, power factor) and fault events, the relay supports predictive maintenance and compliance with industry standards such as IEC 61508 for functional safety.
Core Advantages and Technical Highlights
Precision protection algorithms: The ABB SPAJ140 employs adaptive overcurrent protection with time-current curves (instantaneous, inverse-time, and definite-time), ensuring selective coordination with upstream and downstream devices. In a food processing plant, the relay’s phase unbalance protection detected a motor winding fault within 20 ms, preventing a costly breakdown and preserving production continuity.
Flexible communication and integration: With optional IEC 61850 compatibility, the SPAJ140 enables seamless integration into smart grids and digital substations. A solar farm used the relay’s Modbus RTU interface to transmit real-time protection data to a central monitoring system, allowing operators to remotely reset tripped breakers and optimize energy distribution during grid fluctuations.
Compact design and ease of use: The relay’s DIN rail-mountable form factor (144 mm width) saves space in control panels, while its plug-and-play terminal blocks reduce wiring errors. A small-scale manufacturing facility retrofitted legacy relays with the SPAJ140, achieving a 40% reduction in panel space and simplifying maintenance through the relay’s intuitive menu-driven configuration.
Robust environmental performance: Rated for -25°C to +60°C operation and compliant with IEC 61000-6-2 EMC standards, the SPAJ140 withstands harsh industrial environments. In a wastewater treatment plant, the relay operated reliably amidst high humidity and electromagnetic interference from pumps, ensuring continuous protection of critical aeration motors.
Typical Application Scenarios
Motor protection: The ABB SPAJ140 is ideal for safeguarding large motors in industries such as mining, oil & gas, and manufacturing. A cement plant used the relay’s thermal overload protection to monitor conveyor motors, reducing unexpected downtime by 28% through early detection of bearing overheating.
Distribution networks: For MV/LV substations, the relay’s earth fault protection and auto-reclosing function minimize outage duration. A municipal utility deployed SPAJ140 relays across its distribution grid, achieving a 15% reduction in average repair time by automatically isolating transient faults and reclosing breakers within seconds.
Renewable energy systems: In solar and wind farms, the SPAJ140 protects inverters and grid interconnection points. A wind farm used the relay’s undervoltage protection to safely disconnect turbines during grid dips, preventing damage to inverters and ensuring compliance with grid code requirements.
Commercial buildings: The relay’s voltage unbalance and harmonic monitoring capabilities support energy efficiency in large-scale HVAC systems. A data center integrated SPAJ140 relays into its UPS infrastructure, detecting voltage anomalies that could disrupt server operations and enabling proactive maintenance of power distribution units.
Related Model Recommendations
- ABB SPAJ141: Enhanced version with extended I/O channels and advanced motor management features (e.g., 堵转保护).
- ABB SPAJ130: Compact single-function relay for basic overcurrent protection, suitable for small-scale applications.
- ABB REC670: High-performance numerical relay for transmission-level protection, compatible with SPAJ140 in redundant systems.
- ABB TB521: Terminal block module for secure wiring of SPAJ140 in control panels, reducing installation time by 25%.
- ABB AC500-Safety PLC: Safety-certified PLC that integrates with SPAJ140 for programmable protection logic in critical systems.
- ABB 800xA Automation System: Centralized control platform for managing multiple SPAJ140 relays, enabling advanced fault analysis and system-wide coordination.
Installation, Commissioning and Maintenance Instructions
Installation preparation: Mount the ABB SPAJ140 on a DIN rail in a ventilated control cabinet, ensuring at least 50 mm clearance for heat dissipation. Use shielded twisted-pair cables for CT/PT connections and separate communication wires from power cables to minimize EMI. Configure basic protection settings (e.g., pickup current, tripping time) via the front-panel keypad or Relion® Manager software, and verify wiring with a loop resistance test.
Maintenance suggestions: Perform annual functional tests using a relay test set to validate protection curves and tripping accuracy. Monitor the relay’s event log for repeated fault occurrences, which may indicate underlying system issues. In dusty environments, clean the enclosure vents with compressed air every six months to prevent overheating. Replace backup batteries (if equipped) every five years to maintain event log integrity, and update firmware biannually to access new features and security patches.
Service and Guarantee Commitment
ABB guarantees the SPAJ140 to meet performance specifications for 36 months from delivery, with an optional 5-year extended warranty for critical applications. ABB’s global service network provides 24/7 technical support, including remote diagnostics via secure VPN and on-site commissioning by certified engineers. For large-scale deployments, ABB offers Protection Lifecycle Services, including relay testing, asset management, and compliance audits to ensure long-term reliability.
In the rare event of hardware failure, ABB’s rapid replacement service delivers a pre-configured relay within 24 hours, backed by a network of regional stock centers. The SPAJ140 undergoes rigorous testing for EMC compliance, mechanical endurance, and algorithm accuracy, reflecting ABB’s commitment to delivering protection solutions that enhance system safety and operational efficiency.
