ABB SD834

Description

ABB SD834 is a high-performance industrial automation power module, its specific description, parameters, specifications, series, features, functions, uses and application fields are as follows:

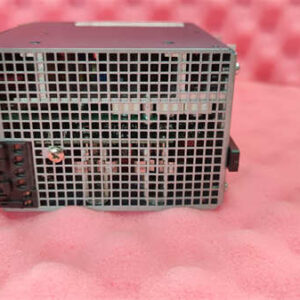

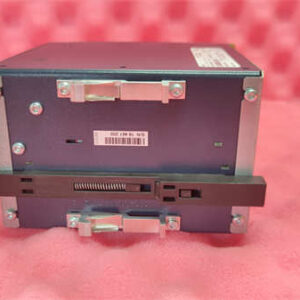

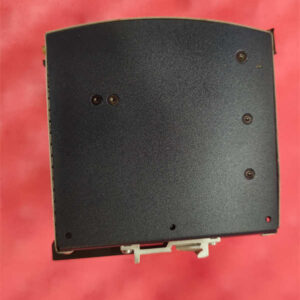

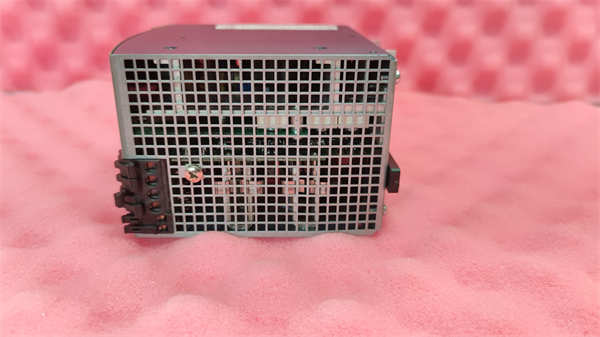

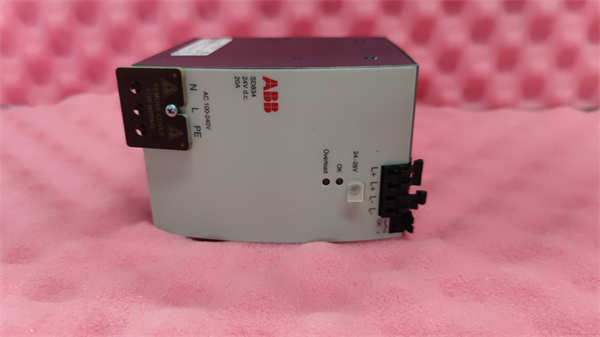

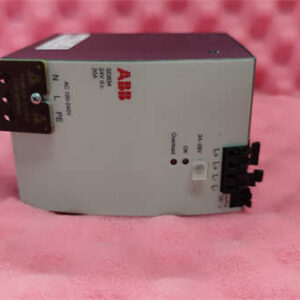

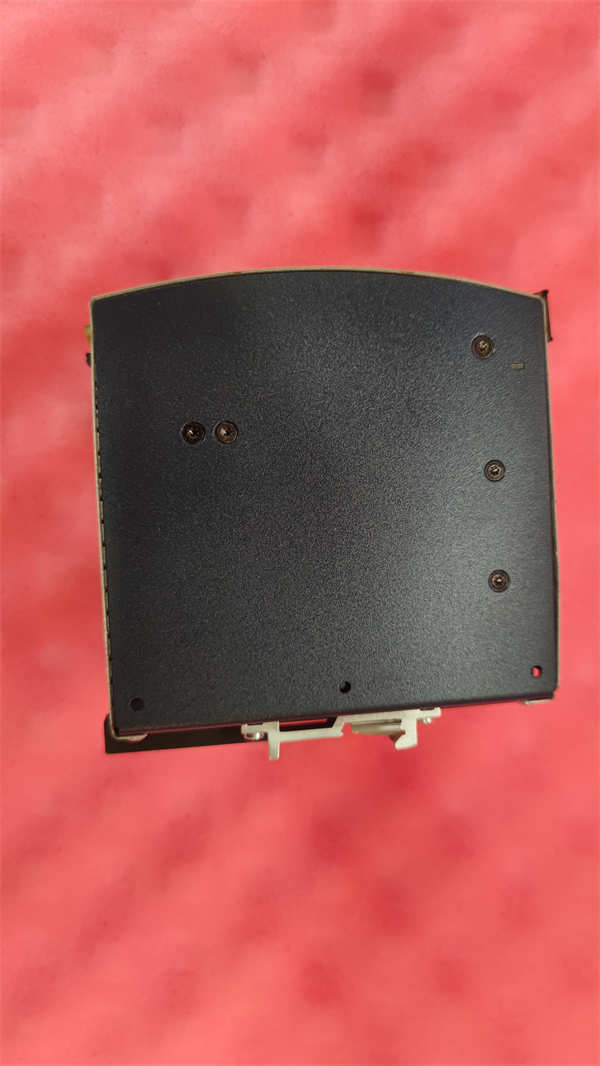

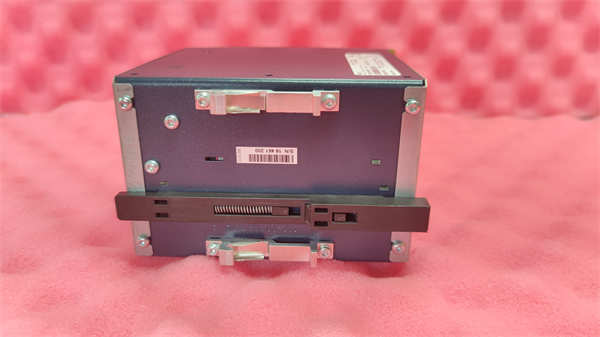

ABB SD834 Product description

The ABB SD834 is a power module designed for industrial automation and is part of the ABB Ability™System 800xA® hardware family, which is part of the SD800 family. It provides stable DC power output and is widely used in industrial automation, process control, building automation and other fields.

Product parameter

Output voltage: 24V DC.

Output current: 3A to 20A (optional).

Input voltage: 100-240V AC or 110-150V DC.

Efficiency: up to 88% to 93.9%.

Ripple: < 50mV.

Overcurrent protection: has the function of overcurrent protection.

Overvoltage protection: has the function of overvoltage protection.

Operating temperature range: -20°C to +60°C (Storage temperature: -40°C to +85°C).

Protection level: IP20.

Dimensions: 35mm DIN rail mounting.

Product specification

Rated output power: 480W.

Input power: 547/568 volt-ampere.

Support for redundancy: Parallel modules are used to increase output power.

Soft start function: Prevents the impact of instantaneous high current on the circuit during power-on.

Compliance with standards: IEC 61131-2,UL 508,EN 50178, etc.

series

The ABB SD834 is part of the SD800 family and is part of the ABB Ability™System 800xA® hardware family.

trait

High reliability: High quality manufacturing standards ensure stable operation in harsh environments.

High efficiency: Reduce energy loss and improve energy efficiency through optimized design.

Flexible configuration: Supports redundant configuration and parallel modules to improve system reliability.

Compact design: Suitable for space-constrained industrial environments.

Soft start function: Avoid impact on the circuit during power-on.

effect

ABB SD834 is mainly used to provide stable DC power supply for controllers, sensors, actuators and other equipment in industrial automation systems. In addition, it supports redundant configurations to improve system reliability and availability.

use

ABB SD834 is widely used in the following areas:

Industrial automation: Stable power supply for PLC, I/O modules, etc.

Process control: Power the equipment in the process control system.

Building automation: Powering equipment in a building management system.

Energy Management: Power supply for energy monitoring and control systems.

Application field

The ABB SD834 is suitable for a variety of industries, including but not limited to:

Manufacturing: Provide stable power support for production equipment.

Energy industry: Used in energy monitoring and control systems.

Chemical industry: Power supply for equipment in chemical production process.

Power industry: Power supply for control equipment in power systems.
