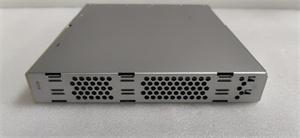

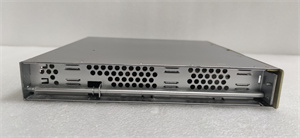

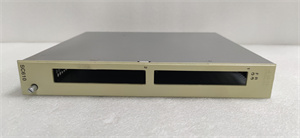

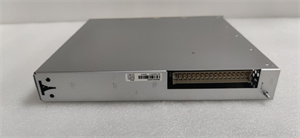

ABB SC610

Description

1.Product description

SC610 is a high-performance module from ABB that is widely used in industrial automation.As a versatile module,the SC610 can be used in a variety of industrial control scenarios,such as logic and sequence control,regulatory and supervisory control,positioning calculation and process optimization,alarm and event recording,etc.It can also be used as a digital input module to receive digital signals from external sensors and convert them into data that can be processed by the control system.In addition,it can also be used as an analog input module to provide accurate and reliable data acquisition for industrial control systems.

2.Product parameters

Parameter details

Product Type Analog input module/Digital input module/Processor module

Dimensions 288mm x 22.5mm x 486mm

Weight 0.67kg

Input channel 8

Input range±10V or±20mA

Resolution 16 bit

The maximum sampling rate is 10Hz

Communication interfaces Modbus RTU,Profibus DP,Canopen

Power supply 24V DC

3.Advantages and characteristics

High precision:16-bit resolution and precise input range control ensure high precision of data acquisition and processing,such as the measurement error of temperature,pressure and other parameters in chemical production is minimal.

A variety of communication interfaces:support Modbus RTU,Profibus DP,Canopen and other communication protocols,can be easily integrated with other devices and systems,such as in the power system can quickly connect with monitoring equipment from different manufacturers.

Flexible configuration:Modular design allows flexible expansion and customization according to actual needs,and functional modules can be added or removed as needed in the manufacturing production line to adapt to different production processes.

High reliability:The use of high-quality components and advanced manufacturing process,adapt to harsh industrial environment,the average trouble-free time is long,such as in the steel plant high temperature,high dust environment can also be stable operation.

4.Application fields and application cases

Application:Suitable for manufacturing,chemical,power,water treatment,transportation and other industries.Automated control of production equipment used in manufacturing;Used in the chemical industry to monitor chemical reaction processes;Monitoring power parameters in power systems;Control water quality treatment in water treatment;It is used in the traffic field for traffic signal control.

Application case:In a large power substation,the SC610 module is used to monitor the voltage and current of multiple high-voltage lines in real time.Its high-precision data acquisition and rapid data transmission,so that the staff can grasp the power operation status in time,when there is an anomaly can quickly send an alarm and take measures,effectively ensure the stable operation of the power system,reduce the incidence of failure and maintenance costs.

5.Comparison of competitive products

Compared with similar products on the market,the SC610 has more advantages in the richness of communication interfaces and can be compatible with more types of devices and systems.Its accuracy and stability are also better,and it can maintain high performance in complex and changeable industrial environments,while some competitors may have data bias or stability problems in harsh environments.

6.Selection suggestions

Function matching:Determine whether analog input,digital input,or processor functions are required based on actual application requirements to ensure that the SC610 can meet specific control tasks.

Communication requirements:Select the SC610 model that is compatible with the communication protocols of other devices on site to ensure smooth system communication.

Environmental factors:If the installation environment is harsh,such as high temperature,high humidity,strong electromagnetic interference,etc.,to ensure that the SC610 protection level and anti-interference ability can adapt.

Budget considerations:Comprehensive consideration of procurement costs,maintenance costs and expected service life to ensure that the most cost-effective products are selected within the budget range.

7.Precautions

Installation specifications:Install in strict accordance with the instructions to ensure that the module is firmly installed to avoid vibration and collision.

Wiring requirements:Correctly connect the power and signal lines,pay attention to voltage matching and polarity,and prevent short circuit and open circuit.

Environmental requirements:Avoid installing in an environment with high temperature,humidity,corrosive gases or strong electromagnetic interference.If you need to install in such an environment,take appropriate protective measures.

Maintenance:Check the running status of the module regularly,clean up dust,and update software and firmware in time to ensure stable module performance.
