ABB SA801F

Description

ABB SA801F is a multi-functional industrial automation module, its specific description, parameters, specifications, series, features, functions, uses and application fields are as follows:

ABB SA801F  Product description

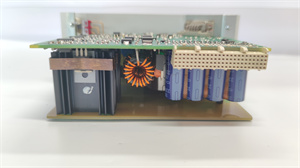

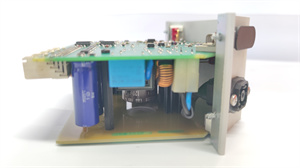

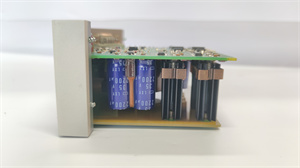

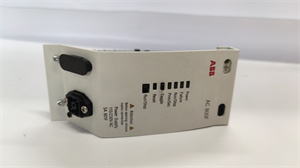

The ABB SA801F is a power module designed for ABB Advant AC800F series controllers to provide stable DC power to CPU motherboards and other modules such as E1, E2, and F1-F4 slots. The module ensures the stability and reliability of the power input through the EMC filtering function, and has the short-circuit and overload protection functions, which can maintain the output of at least 20ms in the case of power failure, thus ensuring the stable operation of the system.

Product parameter

Input voltage range: 115-230VAC (some evidence shows 100-240VAC), supporting a wide input voltage range to adapt to different environments.

Output voltage:

3.3VDC±3% (for CPU boards)

5.0VDC±3% (for I/O modules).

Output power: Total power is 26.5W.

Protection function: including input and output voltage monitoring, overcurrent detection, short circuit protection, etc.

Size: Approx. 200mm x 150mm x 100mm.

Weight: about 2kg.

Operating temperature range: -20°C to 60°C.

Protection class: IP65.

Product specification

Module type: Power module.

Compatibility: Compatible with ABB Advant AC800F series controllers, it supports modular design and is easy to install and maintain.

Communication interface: Support test interface (with EMC filtering).

Mounting method: DIN rail mounting.

series

The ABB SA801F is part of the ABB Advant AC800F controller series and is an important power supply component in this series.

trait

High reliability: The use of high-quality materials and advanced power electronics technology to ensure stable operation in harsh environments.

High efficiency and energy saving: With high efficiency and low internal resistance design, reduce energy loss.

Easy maintenance: Modular design, easy to replace and maintain.

Perfect protection function: overvoltage, undervoltage, short circuit and other protection functions to improve system security.

effect

The main role of ABB SA801F is to provide a stable DC power supply for ABB Advant AC800F series controllers and their connected modules to ensure the normal operation of the entire control system. It also improves system reliability and stability through monitoring and protection functions.

use

ABB SA801F is widely used in the following areas:

Industrial automation: Power supply for PLCS, sensors, actuators, etc.

Process control: Provide stable power supply for process control system.

Energy management: Used to monitor and optimize energy consumption.

Building automation: Powering equipment in a building management system.

Transportation: Reliable power supply in traffic control systems.

Application field

ABB SA801F is mainly used in the following industries:

Manufacturing: Used in industrial robots, production line control, etc.

Energy industry: such as power systems, oil and gas facilities.

Construction industry: lighting, air conditioning and other systems for intelligent buildings.

Transportation: such as traffic light control system.

Data center: Provides a continuous and stable power supply for servers and network equipment.
