ABB RLM01

Description

ABB RLM01 is a multi-functional industrial automation product, its specific description, parameters, specifications, series, features, functions, uses and application fields are as follows:

ABB RLM01 Product description

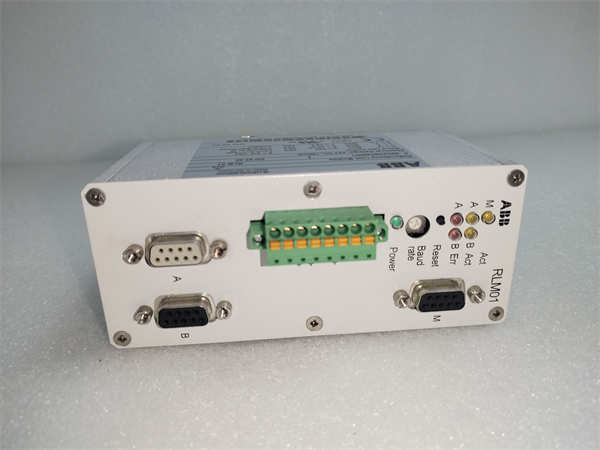

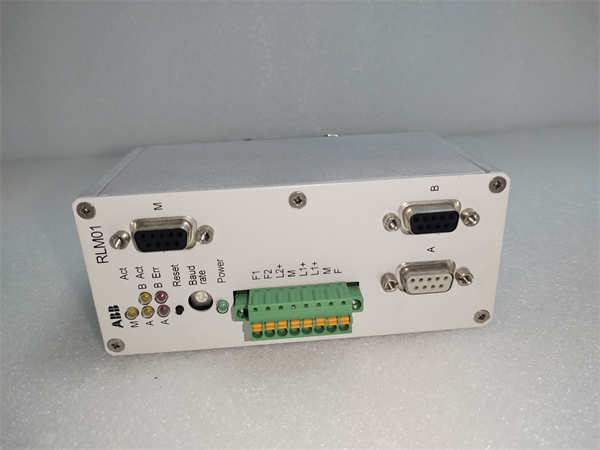

The ABB RLM01 is a modular device designed for industrial automation with a wide range of functions and applications. According to different models and uses, RLM01 can be divided into the following categories:

Output module: Used in industrial control systems, automation systems, power distribution systems, etc.

Redundant link module: Used to enhance the reliability and stability of the PROFIBUS DP network.

Analog input module: Used to receive sensor signals, supporting a variety of signal formats.

Relay module: Used to control motor, valve and other equipment.

Differential pressure transmitter: Used to measure the differential pressure value of gases, steam and other fluids.

Product parameter

Input voltage: 100-240V AC or 24V DC.

Output voltage: 24V DC.

Operating temperature: -10℃ to 60℃ (some models are -20℃ to 70℃).

Size: Different sizes vary, such as 120mm x 80mm x 35mm or 90mm x 70mm x 60mm.

Weight: About 250g or 240g.

Protection level: IP20 or IP65.

Communication protocol: Support Modbus RTU and Profibus DP.

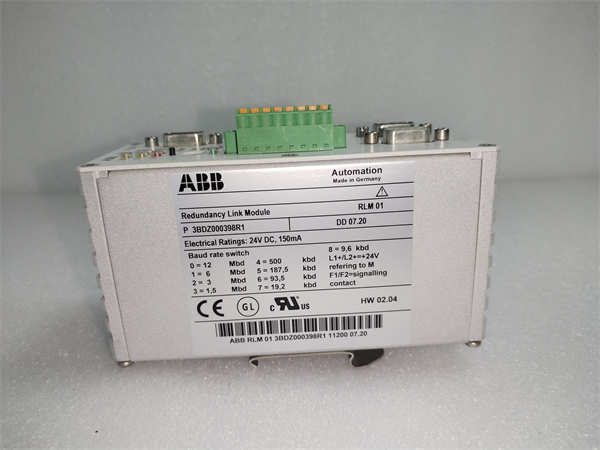

Product specification

Interface type: PROFIBUS DP interface.

Transfer rate: 9.6 kbps to 12 Mbps.

Number of supported devices: A maximum of 31 devices are supported.

Mounting method: DIN rail mounting.

series

The ABB RLM01 belongs to the Freelance family and is part of ABB’s automation system.

trait

High reliability: Industrial design, with good anti-interference ability and stability.

Modular design: easy to expand and customize, adapt to different industrial needs.

Redundancy: Redundant links are used to improve network reliability.

Flexible configuration: Supports multiple communication rates and interface types.

effect

Improve network reliability: The redundancy mechanism is used to ensure that the network can run properly when a single link fails.

Data transmission and control: Support real-time data transmission and device control.

Signal conversion and processing: Converts non-redundant links to redundant links, or receives sensor signals and processes them.

use

Industrial automation systems: for factory automation, process control and building automation.

Power distribution and control: for low-voltage distribution and motor control.

Data acquisition and monitoring: used to measure temperature, pressure and other parameters.

Application field

Industrial manufacturing: factory automation, production line control.

Energy management: power plants, substations, oil and gas production.

Building automation: air conditioning, filter, purification room and other environmental control.

Process control: Data acquisition and monitoring in chemical, pharmaceutical and other industries.
