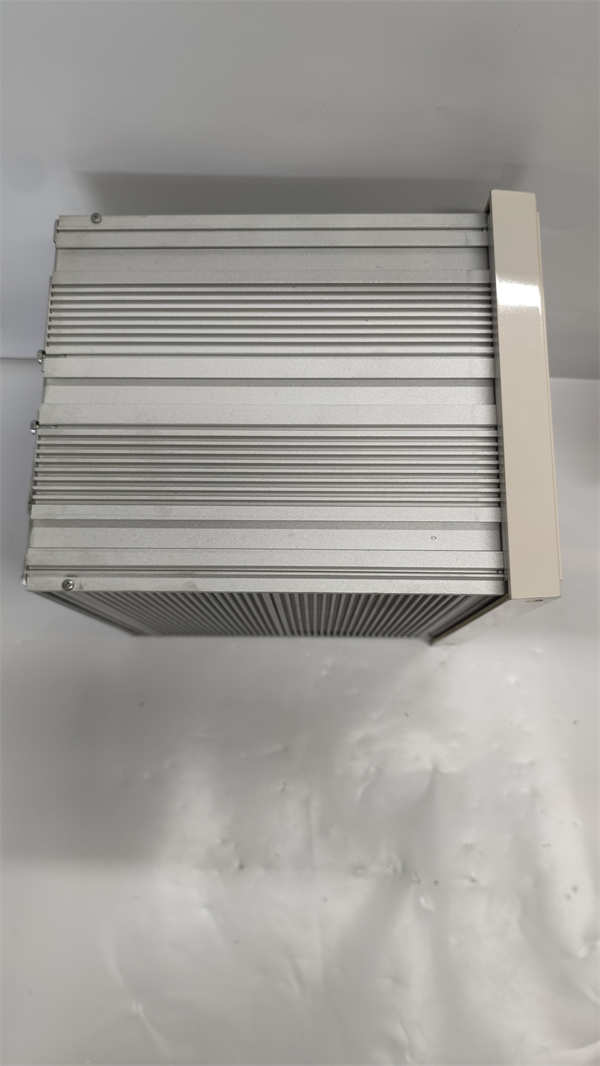

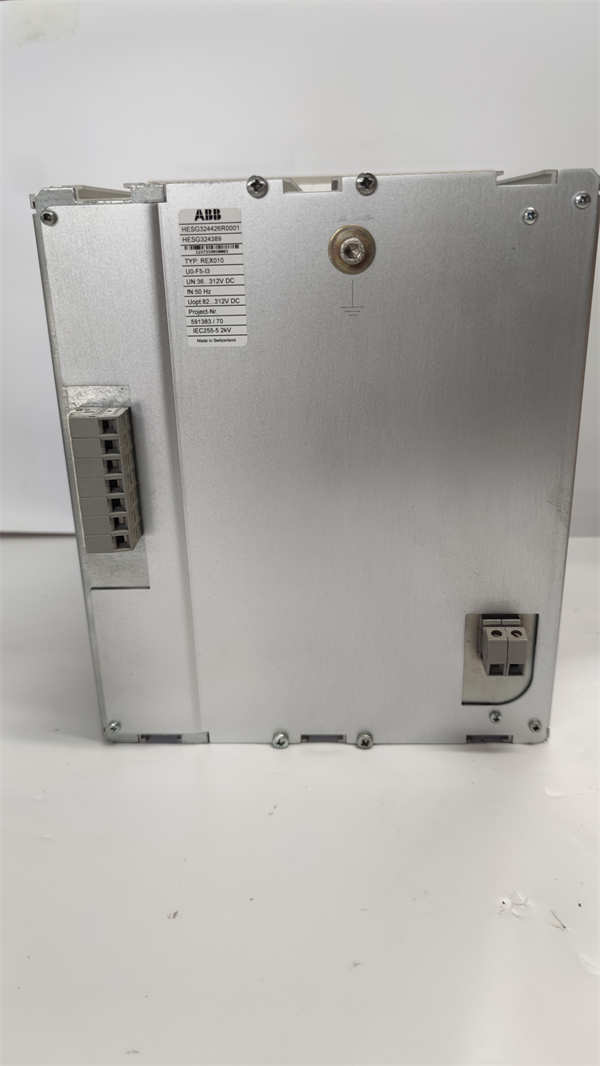

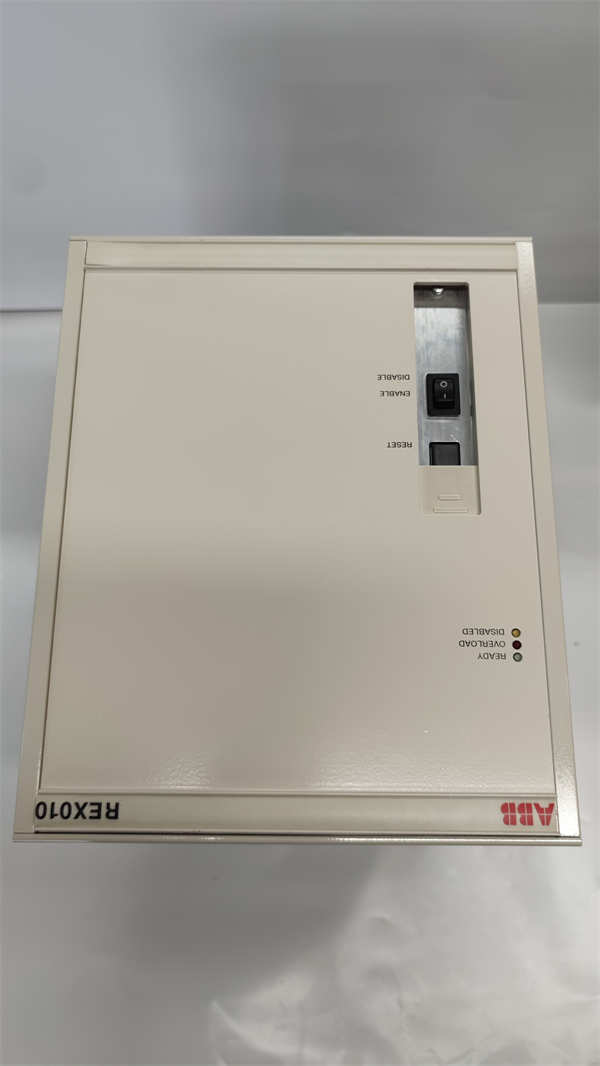

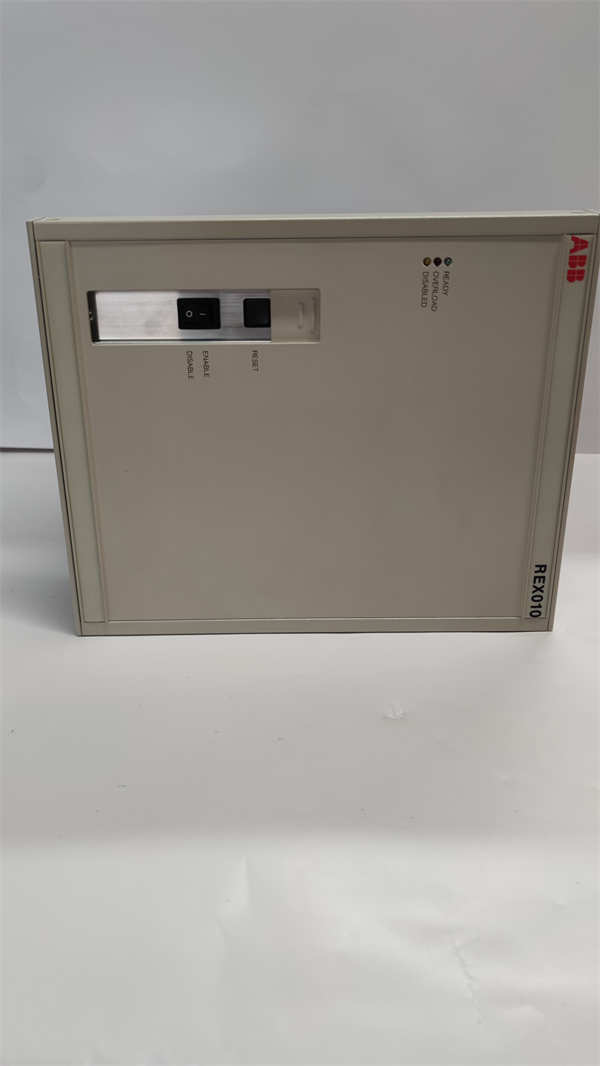

ABB REX010

Description

ABB REX010 is a high-performance industrial controller that belongs to the REX010 family and is widely used in industrial automation. Here is a detailed description of the product:

ABB REX010 Product series

ABB REX010 belongs to the REX010 series, which features high precision, high performance, low power consumption and flexible configuration, and is suitable for a variety of industrial control scenarios.

Product characteristics

High precision measurement: Supports accurate position and velocity feedback for applications requiring high precision control.

High performance microprocessor: A 32-bit microprocessor, running at speeds up to 100MHz, supports fast data processing and response.

Low power design: Optimize energy use and reduce operating costs.

Modular design: Compact design for easy installation and maintenance.

Flexible configuration: Supports multiple input and output configurations, including digital and analog signal interfaces, as well as multiple communication protocols (such as Modbus, Ethernet, etc.).

High reliability: The use of high-quality components to ensure stable operation of equipment in harsh environments.

User-friendly interface: Support ladder diagram programming, structured text and functional block programming to simplify operations.

Product parameter

Processor: 32-bit microprocessor, running at 100MHz.

Memory: 256 KB RAM and 2 MB storage space.

I/O points: Up to 32 digital input/output points and 8 analog input/output points are supported.

Communication interface: Support RS232, RS485, Modbus, Ethernet and so on.

Operating temperature range: -20°C to +70°C.

Protection class: IP65 or IP20, suitable for different environmental conditions.

Dimensions: 120 mm x 80 mm x 40 mm.

Function and use

ABB REX010 is mainly used in the field of industrial automation, and its main roles include:

Position control: Used for position control and motion control of robot joints.

Speed control: Achieve accurate speed control.

Torque control: Achieve torque control.

Data acquisition: Sensor signals are collected for data analysis and fault diagnosis.

Remote control: Support remote channel controller function, suitable for distributed control system.

Application field

ABB REX010 is widely used in the following areas:

Robot: Used for position control and motion control of robot joints.

Numerical control machine tool: numerical control system for machine tools to realize workpiece machining.

Packaging machinery: used for motion control and position control of packaging machinery.

Printing machinery: Used for motion control of printing machinery.

Textile machinery: Used for the control of textile machinery.

Automated production line: Used for the control of automated production lines.

Power system: Used for generator side grounding fault protection.

Product specification

Power supply voltage: 24VDC.

Rated power: 0.1kW.

Weight: About 200g.

Protection level: IP65 or IP20.
