Description

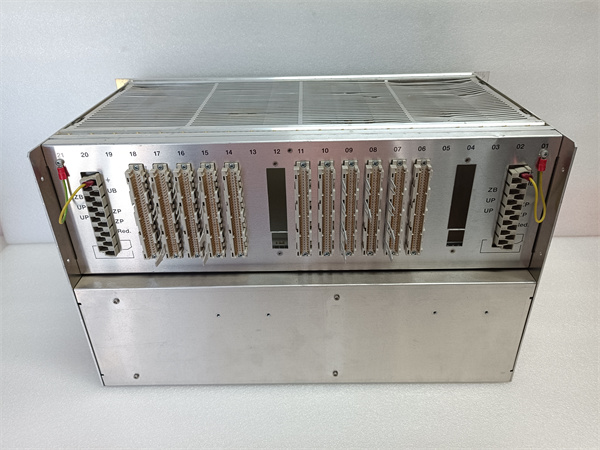

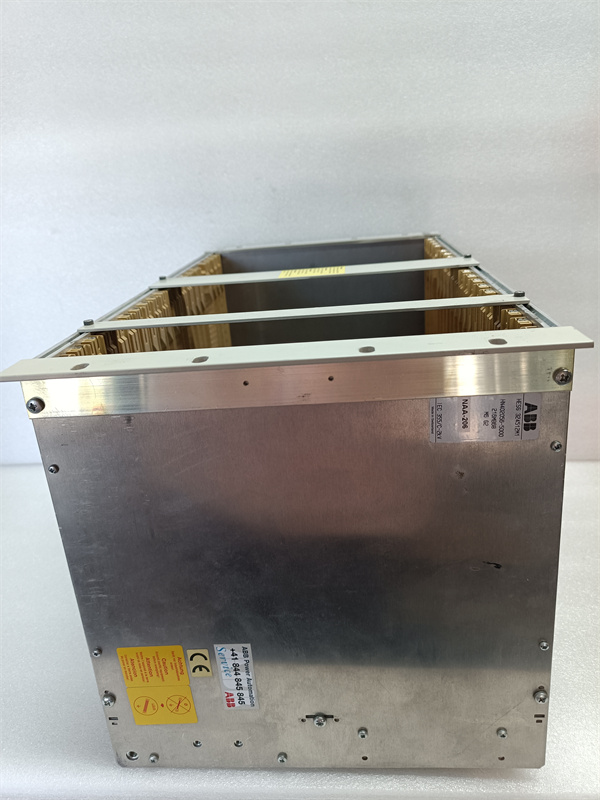

The ABB REG216 is a high-performance numerical relay and protection device designed for medium-voltage power systems, serving as a critical component in ensuring the reliability and safety of electrical networks. As part of ABB’s advanced RELION series, the REG216 combines precision protection, measurement, and control functions into a compact, modular platform, making it suitable for applications in power generation, transmission, distribution, and industrial settings. This device is engineered to detect and respond to abnormal system conditions—such as overcurrents, voltage fluctuations, and short circuits—with rapid tripping capabilities and comprehensive event recording, minimizing downtime and preventing equipment damage.
The REG216 stands out for its adaptive protection logic, which allows it to adjust to changing network configurations and enhance system stability. It supports multiple protection functions, including overcurrent, earth fault, distance protection, and autoreclosure, all configurable through a user-friendly HMI or remote communication interfaces. By integrating with ABB’s automation ecosystem, the REG216 enables seamless data exchange with supervisory control and data acquisition (SCADA) systems, facilitating real-time monitoring and remote management. This makes it an ideal solution for modern smart grids, where reliability, scalability, and cybersecurity are paramount.
| Parameter Name |
Parameter Value |
| Product Model |
REG216 |
| Manufacturer |
ABB |
| Product Type |
Numerical Relay/Protection Device |
| Voltage Range |
57.7 V to 120 V (AC/DC) for auxiliary supply |
| Current Range |
1 A or 5 A nominal input current |
| Communication Protocols |
IEC 61850, Modbus RTU/TCP, DNP3 |
| Operating Temperature |
-25°C to +70°C |
| Storage Temperature |
-40°C to +85°C |
| Dimensions (W×H×D) |
144 mm × 210 mm × 175 mm |
| Weight |
Approximately 3.5 kg |
| Certifications |
IEC 61000, IEC 61850, IEEE 1613 |
| Input Channels |
14 digital inputs, 8 analog inputs |
| Output Channels |
8 relay outputs |
Reliable Protection Capabilities: The REG216 delivers fast-acting protection with a tripping time of less than 10 ms for critical faults, ensuring minimal impact on the power system. Its advanced algorithm supports adaptive distance protection, which automatically adjusts impedance settings based on network topology, reducing the risk of false tripping or delayed responses.
Modular and Scalable Design: The device’s modular architecture allows for easy expansion of I/O modules, making it adaptable to both simple and complex system requirements. This flexibility simplifies upgrades and retrofits, ensuring the REG216 can grow with evolving grid needs.
Enhanced Connectivity and Diagnostics: With native support for IEC 61850, the REG216 enables seamless integration into digital substation environments. Its built-in phasor measurement unit (PMU) functionality provides accurate synchrophasor data for system-wide stability analysis. The device also offers comprehensive self-diagnostics, including hardware health checks and firmware version management, to minimize maintenance efforts and improve operational efficiency.
Cybersecurity Compliance: Designed with cyber threats in mind, the REG216 incorporates secure communication protocols and encrypted data transfer, complying with international standards for power system cybersecurity. This ensures protection against unauthorized access and data breaches, critical for maintaining grid integrity in interconnected networks.
The ABB REG216 is widely deployed in medium-voltage (MV) power systems across various industries, including utilities, oil and gas, manufacturing, and renewable energy. In utility networks, it serves as a primary protection device for feeders, transformers, and generators, ensuring reliable power distribution to residential and commercial consumers. In industrial settings, such as manufacturing plants or mining operations, the REG216 safeguards critical equipment from overloads and faults, minimizing production interruptions and extending asset lifespan.
For renewable energy applications, the REG216 plays a key role in integrating solar farms, wind parks, and energy storage systems into the grid. Its adaptive protection features can handle the variable power flows and transient conditions inherent in renewable energy systems, ensuring stable operation and grid compliance. Additionally, the device is suitable for use in digital substations, where its IEC 61850 compatibility enables interoperability with other smart devices, supporting the transition to fully automated and data-driven power infrastructure.
- ABB REG670: A high-voltage numerical relay with advanced distance and differential protection, ideal for transmission systems. Offers enhanced processing power for complex grid environments.
- ABB REF615: A multifunctional relay for distribution networks, combining protection, control, and measurement in a compact design. Suitable for radial and meshed grids.
- ABB REC670: A generator protection relay designed for large power plants, providing comprehensive protection against stator and rotor faults.
- ABB RET670: A transformer protection relay with advanced harmonic restraint and inrush current detection, ensuring reliable protection for power transformers.
- ABB RELION series (e.g., REG126, REG316): Lower-voltage variants offering similar protection principles but optimized for simpler system architectures or cost-sensitive applications.
Pre-installation preparation: Before installing the REG216, ensure the mounting panel is properly grounded and meets electromagnetic compatibility (EMC) standards. Verify the auxiliary power supply voltage (57.7–120 V AC/DC) and prepare cable routes for input/output connections and communication interfaces. Use the provided mounting brackets to securely fasten the device to the panel, allowing adequate space for heat dissipation and easy access to terminals.
Maintenance recommendations: Regularly inspect the REG216 for physical damage or loose connections, especially after fault events. Update the firmware periodically using ABB’s dedicated software to ensure access to the latest features and security patches. Perform functional tests at least annually to validate protection settings and communication protocols, using a relay test set to simulate fault conditions and verify tripping accuracy. Maintain a record of all configuration changes and test results for compliance and troubleshooting purposes.
ABB stands behind the REG216 with a comprehensive quality assurance program, ensuring the device meets rigorous international standards for reliability and performance. The product is backed by a standard warranty covering defects in materials and workmanship, with options for extended coverage available. ABB’s global service network provides 24/7 technical support, including remote diagnostics and on-site assistance, to minimize downtime and resolve issues promptly. Customers can access detailed documentation, training resources, and software tools through ABB’s digital platforms, ensuring seamless integration and optimal performance throughout the product’s lifecycle. ABB is committed to delivering innovative solutions that empower customers to build safer, more efficient, and sustainable power systems.
Shanxi Xinyeda International Trading Co., Ltd. is your trusted partner, we provide and other automation spare parts sales and technical support. Please visit our website www.xydcontrol.com or contact us and we will be happy to serve you.
