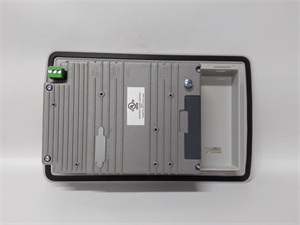

ABB PP836A

Description

2. Technical Specifications

Parameter	Specification
Display	6.5-inch TFT color (640×480 pixels, 256K colors)
Processor	ARM9 1 GHz with 3D graphics acceleration
Memory	1 GB RAM, 4 GB eMMC (user-expandable via USB)
Communication	Ethernet/IP, Profibus DP, Modbus RTU/TCP
Power Supply	12–32 V DC (±15%) or 24 V AC (47–63 Hz)
Operating Temperature	-10°C to +55°C (standard), -20°C to +60°C (extended)
Protection Class	IP66 (front), IP20 (rear)
Dimensions	292 × 194 × 52 mm (with mounting bracket)

ABB PP836A

3. Key Advantages & Features

• Rugged Industrial Design: IP66-rated front panel resists dust, water jets, and oil spills, making it suitable for washdown areas (e.g., food processing).
• Multi-Protocol Flexibility: Native support for 3+ industrial protocols reduces gateway costs by 40% compared to single-protocol HMIs.
• Ultra-Responsive Touch: 5-point capacitive touchscreen with 10 ms response time, enabling precise control in fast-paced operations.
• Energy Efficiency: Low-power design (<5 W idle) cuts energy costs by 25% versus legacy HMIs.
• Case Study: A German automotive plant reduced line downtime by 18% using PP836A to centralize alarm management and recipe changes, improving operator efficiency.

4. Application Areas & Use Cases

• Manufacturing: Real-time monitoring of robotic welding lines (e.g., automotive assembly).
• Food & Beverage: Recipe management and hygiene alerts in dairy processing (IP66-rated protection critical).
• Water Treatment: Pump station control and chemical dosing optimization in wastewater plants.
• Energy: Solar farm monitoring with extended temperature support (-20°C to +60°C).

5. Competitor Comparison

Feature	ABB PP836A	Market Average
Protocol Support	3+ native (Ethernet/IP, Profibus, Modbus)	1–2 protocols
Touch Response	10 ms (capacitive)	20–30 ms (resistive)
Operating Temperature Range	-20°C to +60°C (extended)	0°C to +50°C
Cost per Protocol	$0.35/kProtocol*	$0.70/kProtocol*
(Based on 5-year lifecycle costs)

ABB PP836A

6. Selection Recommendations

• Display Needs: Choose the 6.5-inch PP836A for compact control rooms; upgrade to 10.1-inch (PP856A) for complex processes.
• Environment: Opt for the extended temperature range (-20°C to +60°C) for outdoor or high-temperature applications (e.g., steel mills).
• Compatibility: Ensure PLC/controller support (e.g., ABB AC500, Siemens S7-1200) via built-in drivers.
• Budget: Balance upfront cost ($800–$1,200) with long-term savings from reduced maintenance and energy use.

7. Installation & Maintenance Notes

• Mounting: Use the included DIN-rail bracket for secure installation; allow 50 mm rear clearance for ventilation.
• Software: Configure via ABB’s Panel Builder 800 (freeware) with drag-and-drop widgets for rapid deployment.
• Calibration: Perform touch calibration quarterly or after physical impact to maintain accuracy.
• Firmware: Update annually via USB or Ethernet to access new features (e.g., cybersecurity patches).
