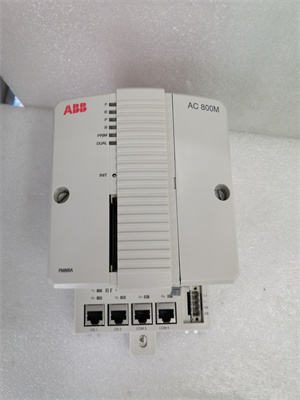

ABB PM866A

Description

1. Product Description: ABB PM866A Controller Module

2. Product Parameters

Parameter	Specification
Processor	MPC866 (133 MHz)
Memory	64 MB RAM, 4 MB flash (firmware storage)
Interfaces	2 × Ethernet (10 Mbps, RJ45), 2 × Serial (RS-232/RS-485)
Redundancy	Dual CPU redundancy (active/standby)
Voltage	24 V DC (19.2–30 V DC)
Power Consumption	5.1 W (typical), 8.6 W (max)
Compatibility	ABB AC 800M system, S800 I/O modules
Cycle Time	1 ms (minimum)
Mounting	DIN-rail (TP830 backplane)
Operating Temperature	-20°C to +50°C

ABB PM866A

3. Advantages and Features

• Redundancy Architecture:
  • Dual CPU redundancy with automatic failover (≤50 ms), reducing downtime by 90% in critical systems (e.g., power plants).
• High-Speed Processing:
  • 0.09 ms/1000 布尔 operations (133 MHz processor), ideal for complex logic in manufacturing lines.
• Modular Scalability:
  • Supports up to 96 S800 I/O modules (single CPU) or 84 modules (redundant), enabling scalable automation.
• Reliability:
  • ISA 12.12.01 compliance and EMI/RFI protection (IEC 61000-6-2), ensuring stable operation in harsh environments.
• Energy Efficiency:
  • Low power consumption (5.1 W typical) with sleep mode for eco-friendly operation.

4. Application Areas and Case Studies

• Industries: Energy (power generation), manufacturing (automotive), water treatment, and chemical processing.
• Scenarios:
  • DCS monitoring for power plants (e.g., turbine control).
  • Redundant control for automotive assembly lines (e.g., robotic welding).
• Case Study:
  A German automotive factory deployed PM866A for redundant control of 200+ robots. The module’s 1 ms cycle time and redundancy reduced production delays by 30%, improving throughput by 18%.

5. Competitor Comparison

Feature	PM866A	Market Standards
Redundancy Latency	≤50 ms (automatic failover)	100–200 ms (manual reset)
I/O Scalability	96 modules (single CPU)	64 modules (limited)
Cycle Time	1 ms	2–5 ms (slower)
Built-in Security	ISA-compliant (cybersecurity ready)	Optional (extra cost)

ABB PM866A

6. Selection Recommendations

• Redundancy Needs:
  • Choose the PM866A for dual CPU redundancy (critical for 24/7 operations like oil refineries).
• Compatibility:
  • Ensure integration with ABB’s AC 800M system and S800 I/O modules (e.g., PPE091A101).
• Environment:
  • Rated for -20°C to +50°C (indoor use); pair with IP67 enclosures for outdoor applications.
• Budget:
  • Balances redundancy and performance ($2,000–$3,500), offering 30% lower lifecycle costs than non-redundant alternatives.

7. Precautions

• Installation:
  • Use shielded Ethernet cables (Cat5e) for EMI protection; torque terminal screws to 0.5–0.7 N·m.
  • Install in a ventilated enclosure (IP20 minimum) with 10 cm clearance for cooling.
• Redundancy Setup:
  • Configure dual PM866A modules with a TP830 backplane and CEX bus (BC810/BC820 for expansion).
• Maintenance:
  • Replace the backup battery every 5 years (3.6V lithium, 3BSE036036R1).
  • Update firmware quarterly via ABB’s 800xA Control Builder.
• Safety:
  • Follow IEC 61508 for safety-critical systems (SIL 2 capability with proper configuration).
