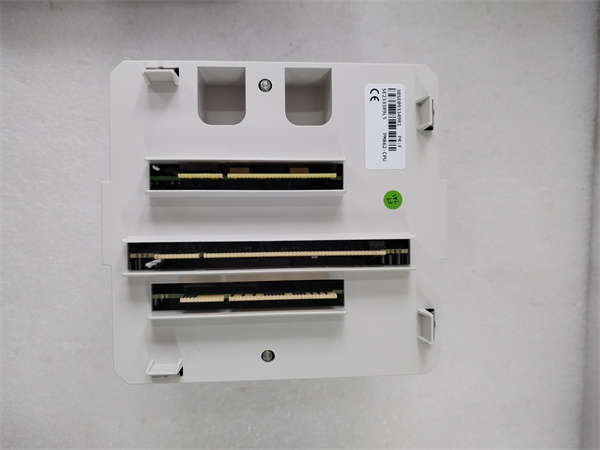

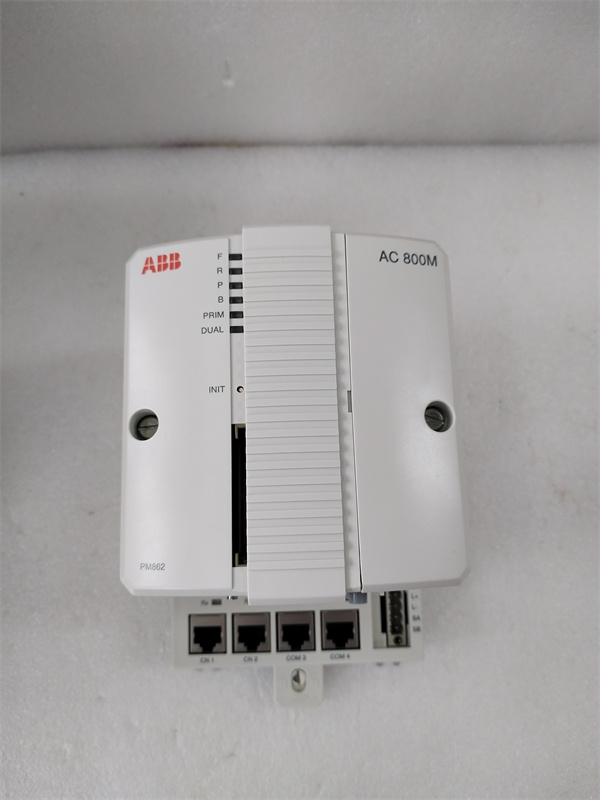

ABB PM862K01

High speed processing capability (67MHz main frequency).

Supports redundant configuration to improve system reliability.

Various interfaces are supported, such as Ethernet ports and I/O extensions.

Compact size for easy installation and maintenance.

Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

The ABB PM862K01 is a high-performance industrial automation controller module that is part of the AC 800M family (Compact Products 800). Here is a detailed description of the product:

ABB PM862K01 Product description

PM862K01 is a CPU processor module, mainly used in industrial automation control systems, providing data processing, real-time monitoring and control functions. It integrates a microprocessor, real-time memory, LED indicator, INIT button, and CompactFlash interface to support redundant configuration to improve system reliability.

Product parameter

Processor performance:

Main frequency: 67MHz, can quickly handle complex control tasks and real-time data transmission.

Memory: 32MB RAM and 235MB flash memory, supporting complex algorithms and large-scale data processing.

Operating System: Compatible with System 800xA 6.0.2 or later.

Power Supply and power consumption:

Power supply voltage: DC 24V, maximum power consumption 5.1W.

Physical specifications:

Dimensions: 230 x 160 x 80 mm.

Weight: About 2.5kg.

Environmental adaptability:

Operating temperature range: +5°C to +55°C.

Storage temperature range: -40°C to +75°C.

IP protection class: IP20, suitable for corrosive gas environment, altitude not more than 2000 meters, noise less than 55dB(A).

Interface and Extensibility:

Provides two Ethernet ports (RJ45) for redundancy.

Supports I/O module expansion with a maximum I/O capacity of 96 (standard) or 84 (redundant).

Modular design for easy installation and maintenance.

Product specification

Model: PM862K01

Series: AC 800M series (Compact Products 800).

Module type: CPU processor unit.

Compatibility: It must be compatible with system 800xA 6.0.2 or later.

Series and features

The PM862K01 belongs to ABB’s AC 800M family, which features high reliability, high performance and modular design. Its main features include:

High speed processing capability (67MHz main frequency).

Supports redundant configuration to improve system reliability.

Various interfaces are supported, such as Ethernet ports and I/O extensions.

Compact size for easy installation and maintenance.

Function and use

PM862K01 is mainly used in industrial automation control systems, its role includes:

Data processing and storage: Efficient data processing and storage through integrated RAM and flash memory.

Real-time monitoring and control: Provides real-time time reference and control functions, suitable for complex industrial scenarios.

System redundancy: Supports redundant configurations to ensure high availability of the system in critical applications.

Data communication: Communication with other modules or external systems via Ethernet ports.

Application field

PM862K01 is widely used in the following areas:

Industrial automation: for process control, equipment monitoring and production management.

Energy management: Used in the energy industry to optimize energy use and monitoring.

Infrastructure management: For building automation and urban infrastructure management.

Manufacturing: Support the efficient operation of machine tools, assembly lines and other equipment.
