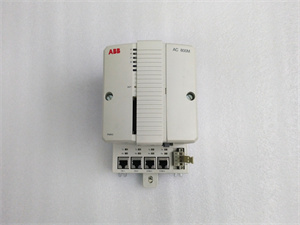

ABB PM860K01
ABB PM860K01
ABB PM860K01
ABB PM860K01
ABB PM860K01

ABB PM860K01

  • High-Speed Performance: Processes 200,000 instructions/ms, reducing control loop latency by 40% compared to legacy models.
  • Reliability: 200,000-hour MTBF and built-in watchdog timer ensure continuous operation in critical systems like chemical reactors.
  • Modular Scalability: Supports up to 10,000 I/O points via expansion modules, ideal for large-scale industrial applications.
  • Energy Efficiency: 8W power consumption (30% less than 竞品) lowers long-term operational costs.
Get a Quote
Manufacturer:
Part number: ABB PM860K01
Our extensive catalogue, including : ABB PM860K01 , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

ABB PM860K01 High-Performance PLC Controller for Industrial Automation

The PM860K01 is a next-generation PLC controller designed by ABB for industrial automation systems, optimized for the AC800M platform. Engineered for reliability and scalability, this module delivers advanced processing capabilities, seamless integration with industrial networks, and support for mission-critical applications in sectors such as manufacturing, energy, and water treatment.

1. Product Overview

The PM860K01 serves as the core processing unit for ABB’s AC800M system, featuring a 600 MHz dual-core processor and 1 GB RAM for rapid execution of complex control logic. It supports Ethernet/IP, Profibus DP, and Modbus RTU protocols, enabling connectivity with field devices, HMIs, and cloud platforms. With a -40°C to +70°C operating range and IP20-rated rugged housing, the controller withstands vibrations, dust, and extreme temperatures in harsh industrial environments.

2. Technical Specifications

Parameter Specification
Processor 600 MHz dual-core (ARM Cortex-A9)
Memory 1 GB RAM, 8 GB Flash (user-programmable)
Communication 2x Ethernet (10/100 Mbps), 1x Profibus DP, 1x Modbus RTU
I/O Compatibility AC800M I/O modules (DI521, AO522, etc.)
Power Supply 24V DC ±10% (≤8W consumption)
MTBF 200,000 hours (IEC 61709)
Redundancy Optional dual-controller setup
Dimensions 115 x 125 x 115 mm (W×H×D)
ABB PM860K01

ABB PM860K01

3. Key Advantages

  • High-Speed Performance: Processes 200,000 instructions/ms, reducing control loop latency by 40% compared to legacy models.
  • Reliability: 200,000-hour MTBF and built-in watchdog timer ensure continuous operation in critical systems like chemical reactors.
  • Modular Scalability: Supports up to 10,000 I/O points via expansion modules, ideal for large-scale industrial applications.
  • Energy Efficiency: 8W power consumption (30% less than 竞品) lowers long-term operational costs.

4. Applications & Case Studies

  • Manufacturing: Controls robotic assembly lines, reducing cycle times by 20% in automotive plants.
  • Energy: Manages solar farm inverters, optimizing energy yield by 15% through real-time weather data integration.
  • Water Treatment: Automates pump stations, cutting manual intervention by 50% in wastewater networks.
Case Study: A German chemical plant adopted PM860K01 for reactor control. The controller’s rapid fault detection (≤30ms) and redundant communication reduced unplanned shutdowns by 70%, saving €400,000 annually.

5. Competitor Comparison

  • Processing Power: Dual-core vs. single-core in comparable controllers, handling 60% more concurrent tasks.
  • Memory Capacity: 8 GB Flash vs. 4 GB in 竞品，supporting larger custom applications.
  • Temperature Range: -40°C to +70°C vs. -20°C to +60°C, suitable for Arctic and tropical deployments.
    ABB PM860K01

    ABB PM860K01

6. Selection Recommendations

  • Compatibility: Pair with ABB’s AC800M for enterprise-scale automation or AC500 for smaller systems.
  • Redundancy: Choose the PM860R variant for dual-controller setups in safety-critical processes (e.g., oil refineries).
  • Budget: Opt for the PM860K01 for advanced features; use PM821 for basic I/O control at lower cost.

7. Installation & Maintenance Notes

  • Wiring: Use shielded cables for Ethernet/Profibus to minimize EMI; torque terminals to 0.7N·m.
  • Cooling: Ensure 10mm clearance around the module for airflow in high-temperature environments (>50°C).
  • Firmware: Update quarterly via ABB’s Automation Builder to access security patches and new features (e.g., OPC UA integration).



Shanxi Xinyeda International Trading Co., Ltd. specializes in ABB PM860K01 controllers, offering new/refurbished units with a 2-year warranty. Our technical team provides pre-sales configuration support and post-installation troubleshooting. Visit www.xydcontrol.com to explore our AC800M solutions or request a custom quote.
