Description

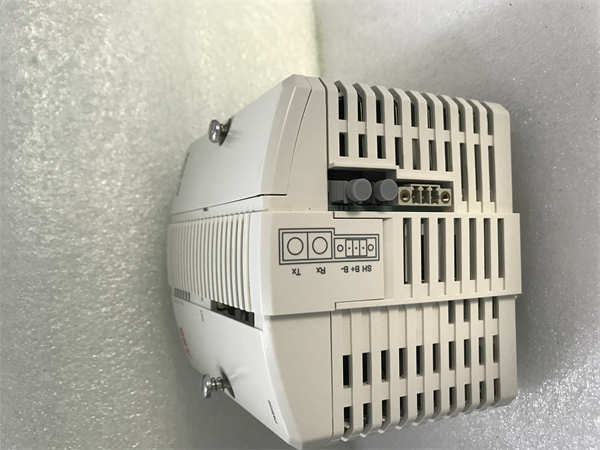

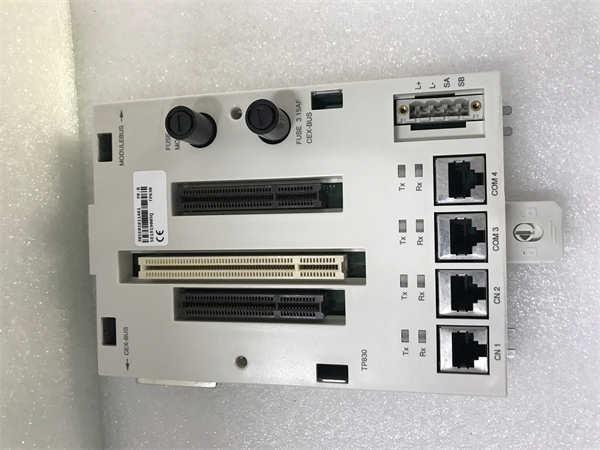

ABB PM856K01 is a high-performance industrial automation controller module that is widely used in industrial automation. Here is a detailed description of the product:
ABB PM856K01 Product description
The ABB PM856K01 is a high-performance AC800M series controller module with powerful processing power and flexible configuration options. It can execute complex control algorithms, process input and output signals, and monitor the operating status of field equipment in real time. As a central control unit, the PM856K01 can be connected with sensors, actuators and human-machine interfaces to achieve real-time monitoring and control of the production process.
Product parameter
Processor: Motorola 68040 CPU, 25MHz.
Memory: 8MB of dynamic RAM.
Communication interface:
RS-232
RS-485
Ethernet (supports PROFIBUS and MODBUS protocols).
Operating temperature range: -20℃ to +60℃.
Dimensions: 220mm x 80mm x 35mm.
Weight: 1.1kg.
Protection level: IP20.
Product specification
Input/output capability:
Number input: 16
Digital output: 8
Analog inputs: 4
Analog output: 2.
Programmable: Support H1131-6133 and other programming languages.
Extensibility: Supports modular design and can expand modules or options according to requirements.
Series and features
The PM856K01 belongs to ABB’s AC800M family of controller modules, which are known for their high performance, reliability, flexibility and scalability. Its main features include:
High-performance processor: Uses advanced microprocessor technology to support high-speed data processing.
High reliability: The use of high-quality components and advanced manufacturing processes to ensure stable operation.
Modular design: easy to expand and customize to meet the needs of different industrial applications.
Rich communication interfaces: Supports a variety of communication protocols for easy integration with other systems.
Function and use
PM856K01 as the main unit of the field controller, mainly used in the following aspects:
Data processing and control: Receive and execute instructions from the superior control system, while monitoring the status of the field equipment in real time.
Human Machine interaction: The interaction between the operator and the system is achieved through the Human Machine interface (HMI).
Automatic production line control: widely used in manufacturing automation production line, distribution automation, building automation and other fields.
Energy management: Used in power system control, water treatment, metallurgy, chemical and other industries.
Application field
The ABB PM856K01 is suitable for the following industries and sectors:
Manufacturing: Automated production line, robot control.
Energy industry: power system control, distribution automation.
Infrastructure: water treatment, building automation.
Transportation: Port automation.
Other fields: metallurgy, chemical industry, oil and gas, etc.
