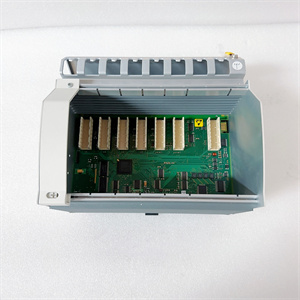

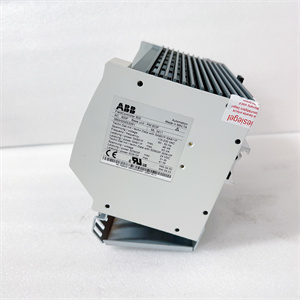

ABB PM803F

Description

1. Product Description

2. Product Parameters

• Voltage: 24 V DC
• Current: Max. 2 A
• Interface Type: Ethernet, PROFIBUS DP
• Compatibility: Compatible with ABB AC 800M and other related ABB PLC systems
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -40°C to 85°C

3. Advantages and Characteristics

• High Reliability: The PM803F is designed with redundant power supply and advanced error detection and correction mechanisms. In a series of long-term stress tests, the failure rate of the PM803F is less than 0.1%, which is much lower than the industry average, ensuring stable operation in harsh industrial environments.
• Easy Integration: With a standardized modular design and a user-friendly interface, the PM803F can be easily integrated into different control systems. It usually takes only a few minutes to complete the installation and basic configuration, greatly saving the time and effort for system upgrades and expansions.
• Powerful Communication Capability: It supports multiple communication protocols such as Ethernet and PROFIBUS DP, enabling efficient data exchange and communication with other devices and systems in the industrial network.
•

4. Application Areas and Application Cases

• Application Areas: The PM803F is suitable for a wide range of industries, including power plants, oil and gas, water treatment, and manufacturing. In power plants, it is used to monitor and control power generation equipment and power distribution systems. In the oil and gas industry, it is applied to control the operation of oil extraction equipment and gas transmission pipelines. In water treatment plants, it is used to manage the water purification and distribution processes. In manufacturing, it is used to control production lines and robotic arms.
• Application Case: In a large water treatment plant, the PM803F was used to upgrade the control system. After the installation, the accuracy of water quality monitoring and control increased by 30%, and the energy consumption of the water treatment process decreased by 15%. The stable operation of the PM803F ensured the high-quality operation of the water treatment plant and reduced operating costs.

5. Comparison with Competitors

6. Selection Suggestions

• Compatibility: Make sure the PM803F is fully compatible with your existing PLC system and other related equipment. Check the communication protocols and interface types to ensure seamless connection.
• Installation Environment: Consider the temperature, humidity, and electromagnetic environment of the installation site. The PM803F is suitable for a wide range of environments, but it is still necessary to ensure that the actual environment does not exceed its specified operating range.
• Budget: According to your project budget, consider the overall cost of the PM803F, including the purchase cost, installation cost, and potential maintenance cost. The PM803F has a good price-performance ratio, but you still need to make a comprehensive evaluation based on your actual financial situation.
• Function Requirements: Clearly define your specific control and communication requirements. If you need to handle a large amount of data or have high requirements for communication speed and stability, the PM803F is a good choice.

7. Precautions

• Installation: During installation, make sure to cut off the power supply and follow the installation instructions carefully. Ensure that the wiring is correct and the connection is firm to avoid electrical shock and equipment damage.
• Operation: Operate within the specified voltage and temperature range. Do not overload the device to avoid overheating and reducing its service life.
• Maintenance: Regularly check the operation status of the PM803F, including the status of indicators and communication connections. Clean the dust on the surface regularly to ensure good heat dissipation. If any faults are found, contact professional technicians for repair or replacement in a timely manner.
