Product Specification for KUC711AE01 3BHB004661R0001
KUC711AE01 3BHB004661R0001 is a high-performance digital input module designed for industrial automation systems, offering reliable signal acquisition and control in demanding environments. Manufactured by ABB, this module is engineered to meet the rigorous requirements of process control, machinery automation, and energy management applications.
The
KUC711AE01 3BHB004661R0001 is a compact, DIN-rail mountable module that converts analog or digital signals into standardized outputs for PLC systems. With its advanced signal conditioning capabilities, it ensures stable performance even in high-noise industrial settings. This module is widely used in sectors such as manufacturing, oil and gas, and power generation.
| Parameter |
Specification |
| Voltage Input |
24 V DC ±10% |
| Current Consumption |
≤100 mA |
| Input Channels |
16 channels (isolated) |
| Signal Type |
Digital (0/24 V DC) |
| Response Time |
≤1 ms |
| Operating Temperature |
-25°C to +70°C |

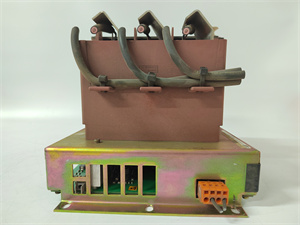

KUC711AE01 3BHB004661R0001
- High Reliability: The KUC711AE01 3BHB004661R0001 features galvanic isolation and surge protection, minimizing downtime due to voltage spikes.
- Space-Saving Design: Its compact form factor allows dense installations in control panels.
- Easy Integration: Supports Plug-and-Play functionality with ABB’s AC500 and AC800M PLC systems.
- Wide Compatibility: Accepts signals from sensors, switches, and relays across various industries.
- Manufacturing: Used in assembly lines to monitor machine status and trigger safety protocols.
- Energy: Implements real-time monitoring of generator status in power plants.
- Water Treatment: Controls pump operations based on sensor inputs in wastewater systems.
- Case Study: A chemical plant reduced downtime by 20% using this module to detect faulty equipment early.
Compared to similar digital input modules, the KUC711AE01 3BHB004661R0001 offers faster response times (≤1 ms vs. typical 2–3 ms) and broader temperature tolerance (-25°C to +70°C vs. -10°C to +55°C). Its modular design also simplifies field replacements.

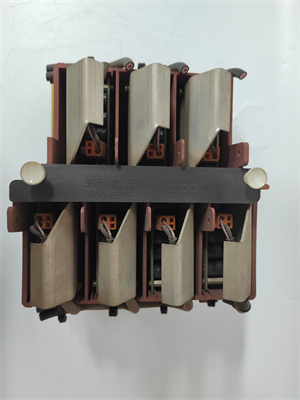

KUC711AE01 3BHB004661R0001
- Compatibility: Ensure compatibility with your PLC system (e.g., ABB AC500/AC800M).
- Environment: Verify temperature and humidity conditions at the installation site.
- Scalability: Consider expansion needs; the module supports daisy-chaining for larger networks.
- Installation: Follow ABB’s wiring guidelines to avoid short circuits.
- Power Supply: Use a filtered 24 V DC source to prevent signal distortion.
- Maintenance: Regularly inspect connectors for corrosion or 松动.
