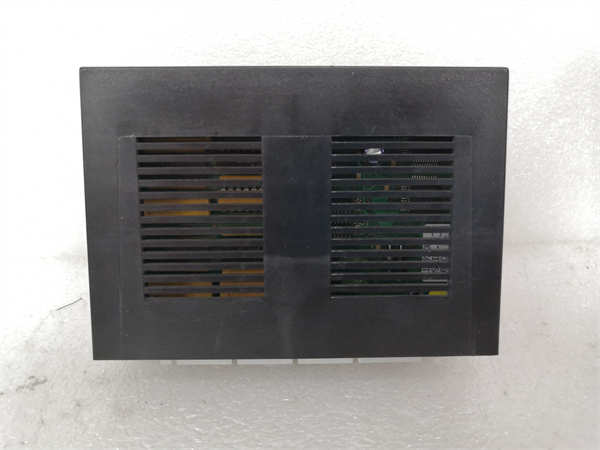

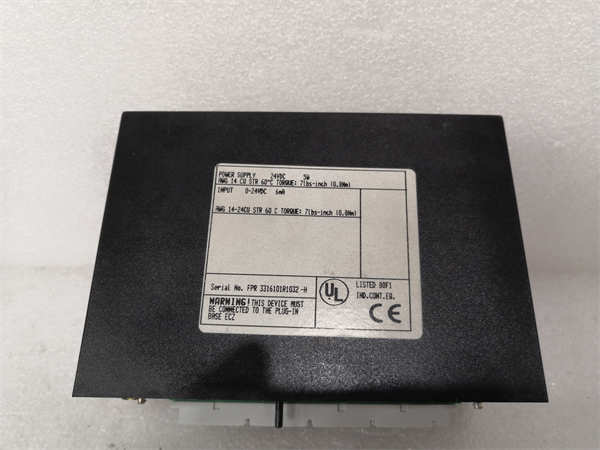

ABB ICSI16E1

The ABB ICSI16E1 is a high-reliability industrial communication module designed to enable seamless connectivity between automation systems and field devices in harsh industrial environments. As part of ABB’s AC 800M controller series, the ICSI16E1 serves as a critical interface for integrating serial communication protocols into distributed control systems (DCS), making it ideal for retrofitting legacy equipment or managing diverse fieldbus networks. This module provides 16 isolated serial channels (RS-232/RS-485) with advanced error correction and signal conditioning, ensuring robust data transmission in noisy environments such as manufacturing plants, power stations, and process industries.

Engineered with ABB’s trademark durability, the ICSI16E1 supports protocols like Modbus RTU, Profibus DP, and custom serial protocols, enabling flexible integration with sensors, actuators, and third-party devices. Its core functions include real-time data polling, protocol conversion, and diagnostic reporting, all managed through ABB’s Control Builder M software. Positioned as a scalable solution, the module enhances system interoperability by bridging legacy serial networks with modern Ethernet-based control systems, reducing complexity and downtime in hybrid automation setups. The ABB ICSI16E1 embodies ABB’s commitment to future-proofing industrial infrastructure, delivering reliable performance in mission-critical applications where data integrity and uptime are non-negotiable.

High-Density Serial Connectivity: The ICSI16E1 consolidates 16 serial channels into a single compact module, reducing rack space and cabling complexity compared to discrete solutions. Each channel features independent signal conditioning and surge protection, minimizing cross-talk and interference in high-channel-count applications.

Protocol Flexibility and Scalability: The module’s configurable firmware allows seamless adaptation to diverse serial protocols, making it suitable for the wide range of devices, from older PLCs to modern smart sensors. Its hot-swappable design enables channel expansion or replacement without powering down the entire system, ensuring minimal disruption during maintenance or upgrades.

Robust Industrial Design: Built to withstand extreme temperatures, vibration, and electromagnetic interference, the ICSI16E1 features a rugged metal enclosure and conformal-coated PCBs, ensuring reliability in harsh environments. The module’s advanced diagnostics, including real-time error logging and channel status indicators, enable proactive troubleshooting and reduce mean time to repair (MTTR).

Integration with ABB’s Automation Ecosystem: Fully compatible with ABB’s AC 800M controllers and 800xA Extended Automation System, the ICSI16E1 simplifies system integration through pre-configured function blocks in Control Builder M. This streamlines engineering workflows, allowing engineers to focus on higher-level control strategies rather than low-level protocol handling.

The ABB ICSI16E1 is indispensable in industries requiring extensive serial communication management. In power generation, it connects legacy turbine control systems, meters, and relays to modern SCADA systems, enabling real-time monitoring of critical parameters like voltage, current, and power factor. For oil and gas refineries, the module manages serial-based field devices such as flow meters, pressure transmitters, and safety interlocks, ensuring compliance with strict safety standards while integrating with distributed control systems.

In manufacturing, the ICSI16E1 bridges serial-enabled robotics, CNC machines, and quality control instruments with plant-wide Ethernet networks, facilitating data-driven process optimization. It also excels in water treatment plants, where it coordinates serial-based analyzers, pumps, and valves, ensuring efficient water quality monitoring and distribution. By addressing the challenges of protocol fragmentation and legacy system integration, the module empowers manufacturers to modernize their infrastructure while preserving investments in existing equipment.

Pre-installation preparation: Ensure the ICSI16E1 is installed in a grounded AC 800M controller rack, aligned with the backplane connectors. Verify that the controller’s firmware is updated to support the module, and use Control Builder M to configure channel parameters (e.g., baud rate, parity, protocol type). Terminate shielded serial cables with appropriate connectors, ensuring proper grounding to minimize EMI, and label each channel for easy identification.

Maintenance recommendations: Regularly inspect the module’s LED indicators for channel activity and fault status, using Control Builder M to review diagnostic logs for errors like parity failures or frame errors. Clean the module’s vents with compressed air quarterly to prevent dust accumulation, and check cable connections for tightness in high-vibration environments. Periodically update the module’s firmware to incorporate new protocol support or security patches, and maintain a backup of channel configurations to facilitate quick recovery in case of module replacement.

ABB stands behind the ICSI16E1 with a comprehensive quality assurance program, including rigorous testing for EMC compliance, thermal stability, and protocol accuracy. The module is backed by a standard 3-year warranty, covering defects in materials and workmanship. ABB’s global technical support team provides 24/7 assistance for remote diagnostics, configuration guidance, and on-site maintenance, ensuring rapid resolution of issues. Customers can leverage ABB’s extensive training resources and online documentation to maximize the module’s performance, reinforcing its role as a reliable foundation for industrial communication networks. With its blend of high density, ruggedness, and protocol flexibility, the ICSI16E1 delivers long-term value in even the most demanding automation environments.
