ABB DI810

Description

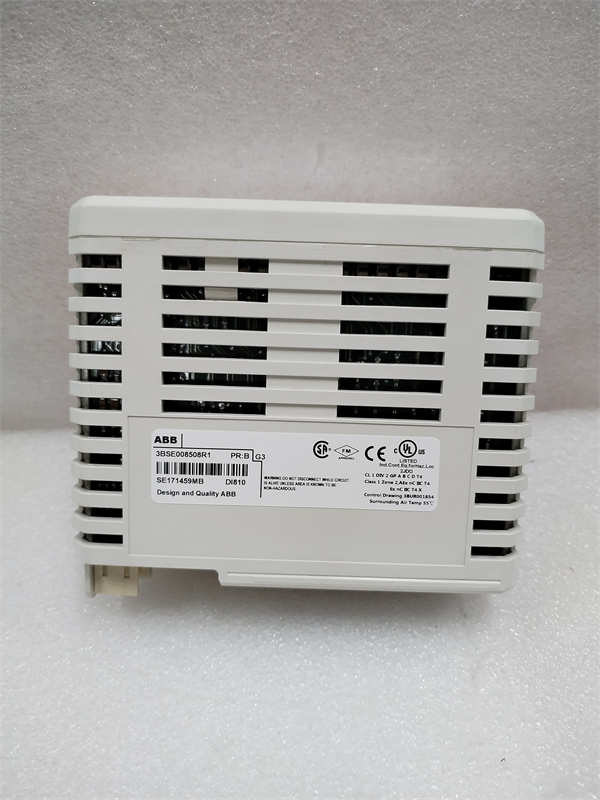

ABB DI810 16 digit input module

Product Overview

ABB DI810 is a digital input module mainly used in industrial automation systems.It can receive digital signals from external devices such as switches,sensors,etc.,and convert these signals into digital form for processing by the control system.The DI810 module is typically integrated into ABB’s automation systems as an interface between the system and field devices.

Product Features

16 digital input channels:Provides 16 independent digital input channels that can be connected to multiple external devices.

High reliability:Adopting industrial grade design,it has high reliability and stability,suitable for harsh industrial environments.

Isolation design:Input channels are isolated from each other to prevent signal interference.

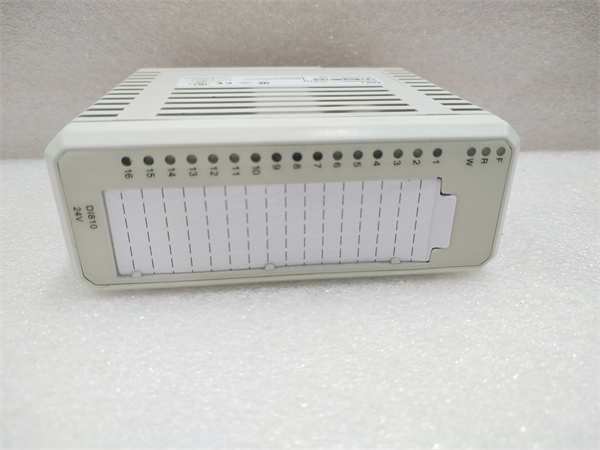

Indicator lights:Each channel is equipped with indicator lights for users to intuitively understand the input status.

Modular design:Modular design,easy to install and maintain.

Product parameters

Input voltage:typically 24V DC

Input current:The specific value depends on the model and configuration

Isolation method:photoelectric isolation

Response time:millisecond level

Working temperature:-20℃to+60℃

Protection level:IP20

Product specifications

Installation method:DIN rail installation

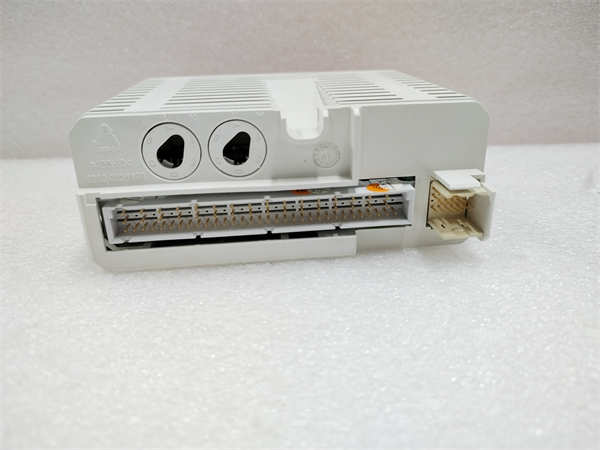

Connection method:screw terminal or plug-in connector

series

DI810 belongs to the ABB S800 I/O series,which provides a range of input/output modules for connecting various field devices.

features

Flexible configuration:It can be configured through software to adapt to different application requirements.

Strong compatibility:Can be used in conjunction with various ABB controllers and PLCs.

High reliability:rigorously tested to ensure product quality.

effect

Data collection:Collect digital signals from on-site devices,such as switch status,sensor data,etc.

Signal conversion:Convert digital signals into signals recognizable by the control system.

Status monitoring:Monitor the status of on-site equipment,such as equipment operation status,fault status,etc.

purpose

Industrial automation:used in various industrial automation systems,such as process control,machine control,etc.

Building automation:used in building automation systems,such as access control,fire alarm,etc.

Process control:used in process control systems,such as temperature control,liquid level control,etc.

application area

The ABB DI810 digital input module is widely used in various industrial fields,such as:

Automobile manufacturing:production line monitoring,equipment control

Food and beverage:production process monitoring,quality control

Pharmaceutical:Production process control,data recording

Energy:Power monitoring,distribution automation

summary

ABB DI810 is a reliable and flexible digital input module widely used in the field of industrial automation.It can convert external digital signals into signals recognizable by the control system,thereby achieving control and monitoring of various devices and processes.
