Description
The
ABB DI581-S is a high-reliability
digital input module designed for ABB’s
AC 800M distributed control system (DCS), serving as a critical interface for acquiring discrete status signals in industrial automation environments. As part of the
S800 I/O Series, the
DI581-S is engineered to monitor the on/off states of field devices such as limit switches, pushbuttons, and relays, converting them into digital data for real-time control and monitoring. This module features 16 isolated channels with advanced noise immunity, making it ideal for harsh industrial settings in manufacturing, power generation, and process industries where reliable signal acquisition is non-negotiable.
The DI581-S ensures signal integrity through galvanic isolation (500 V rms) and software-configurable filter times (0.2–32 ms), minimizing false triggers from electromagnetic interference (EMI) or transient spikes. Its hot-swappable design allows for maintenance without disrupting system operations, while front-panel LED indicators provide instant visual feedback for each channel’s status (green for normal, red for fault). Positioned as a robust and flexible solution, the DI581-S enhances process safety by enabling precise detection of critical events, such as emergency stop activations or valve position changes, in compliance with IEC 61131-2 standards for industrial control systems.
| Parameter Name |
Parameter Value |
| Product Model |
DI581-S |
| Manufacturer |
ABB |
| Product Type |
Digital Input Module (DCS I/O) |
| Channels |
16 isolated channels (2 groups of 8) |
| Signal Type |
24 V DC (sinking/sourcing) |
| Isolation |
500 V rms (channel-to-earth) |
| Filter Time |
0.2–32 ms (software-configurable) |
| Response Time |
<1 ms (signal detection to output) |
| Power Supply |
24 V DC (via backplane, shared with I/O rack) |
| Operating Temperature |
-25°C to +60°C |
| Dimensions (W×H×D) |
36 mm × 100 mm × 110 mm |
| Mounting Method |
DIN rail (AC 800M S800 I/O rack) |
| Certification |
CE, UL, IEC 61131-2, RoHS |
| Communication |
Profibus DP, Ethernet/IP (via controller) |

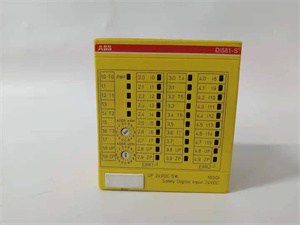

ABB DI581-S
Rugged Isolation and Noise Immunity: The DI581-S’s galvanic isolation and configurable filter times ensure reliable signal processing in high-noise environments, such as steel mills or automotive assembly lines. For example, in a paper mill, the module can filter out vibration-induced noise from proximity sensors monitoring conveyor belt alignment, ensuring accurate status updates for the DCS. This reduces false alarms and minimizes unnecessary downtime caused by erroneous signals.
Hot-Swappable Design and Real-Time Diagnostics: The module’s hot-swappable capability allows technicians to replace faulty units without powering down the system, the feature is critical for 24/7 operations like oil refineries or water treatment plants. Built-in diagnostics monitor channel health, power supply stability, and filter status, with real-time alerts via the AC 800M’s control software. This enables rapid fault identification—such as a malfunctioning limit switch in a robotic arm—reducing mean time to repair (MTTR) by up to 50%.
High-Density and Flexible Configuration: With 16 channels in a compact 36 mm width, the
DI581-S optimizes space in control panels, making it suitable for high-density applications like packaging lines or pharmaceutical filling stations. The dual-group isolation (8 channels per group) supports mixed grounding requirements, allowing integration of both safety-critical signals (e.g., emergency stops) and non-safety signals (e.g., equipment status indicators) in a single module. Engineers can configure each channel’s filter time and debounce settings via ABB’s
Control Builder M software, tailoring the module to specific application needs, from high-speed counting in bottling machines to slow-changing status signals in HVAC systems.

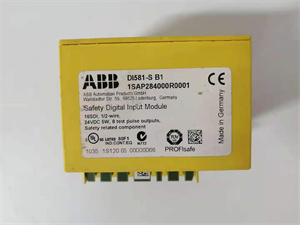

ABB DI581-S
The ABB DI581-S is essential in industries requiring precise monitoring of discrete signals:
- Manufacturing: Tracks conveyor belt positions, pallet presence sensors, and robotic arm end-of-travel signals in automotive and electronics factories. For instance, in a semiconductor fabrication plant, the module ensures that cleanroom door status signals are accurately transmitted to the DCS, maintaining controlled environmental conditions.
- Power Generation: Monitors circuit breaker states, generator synchronizing signals, and turbine bypass valve positions in thermal and renewable energy plants. In a wind farm, the DI581-S detects the open/closed status of blade pitch angle locks, enabling safe maintenance procedures.
- Process Industries: Used in chemical and food processing to monitor valve positions, pressure switch status, and batch process start/stop signals. In a brewery, the module tracks the status of fermentation tank agitators, ensuring proper mixing sequences are followed.
- Water and Wastewater: Monitors pump run/stop status, level switch positions, and backflow preventer states in treatment plants. The module’s wide temperature range and moisture resistance make it suitable for outdoor installations, such as monitoring lift station alarms in sewage networks.
- ABB DO581-S: A 16-channel digital output module, complementary to the DI581-S for complete control loops in the AC 800M system.
- ABB AI582-S: An analog input module for continuous signal monitoring (e.g., temperature, pressure), often used alongside the DI581-S in hybrid I/O applications.
- ABB PM866AK01: A control module for the AC 800M system, processing data from the DI581-S and executing control logic.
- ABB TB521: A terminal block for secure field wiring, compatible with the DI581-S’s 24 V DC inputs, ensuring reliable connections in high-vibration environments.
- ABB CI522: A Profibus DP interface module, enhancing the DI581-S’s connectivity in hybrid fieldbus networks.
Pre-installation preparation: Mount the DI581-S in an AC 800M S800 I/O rack, ensuring proper grounding and ventilation. Use shielded twisted-pair cables for field connections, terminating 24 V DC signals (e.g., limit switches, proximity sensors) to the TB521 terminal block with specified torque (2.5 N·m). Configure channel groups, filter times, and alarm settings via Control Builder M, verifying signal compatibility (sinking/sourcing) with field devices.
Maintenance recommendations: Inspect the module’s LED indicators monthly to confirm channel status and power supply health. Clean dust from ventilation slots quarterly in dusty environments (e.g., cement plants) using compressed air. Test hot-swappable functionality annually to ensure rapid module replacement capability. Update firmware via the AC 800M’s firmware manager to incorporate bug fixes or security updates, and retain faulty modules for diagnostic analysis by ABB’s service team.
ABB stands behind the DI581-S with a 3-year warranty, covering defects in materials and workmanship. ABB’s global technical support team provides 24/7 assistance for configuration, troubleshooting, and remote diagnostics, ensuring minimal disruption to operations. The module’s compliance with international standards (IEC, UL) and ABB’s rigorous testing protocols (e.g., 10,000-cycle switching tests) guarantee long-term reliability. With its combination of durability, precision, and ease of use, the DI581-S remains a trusted choice for discrete input solutions in thousands of industrial applications worldwide.
Shanxi Xinyeda International Trading Co., Ltd. is your trusted partner, we provide and other automation spare parts sales and technical support. Please visit our website www.xydcontrol.com or contact us and we will be happy to serve you.
