High Reliability: The DDI01 features galvanic isolation for each channel, protecting against voltage spikes and electromagnetic interference (EMI). This isolation ensures signal integrity even in noisy industrial settings, with a proven mean time between failures (MTBF) exceeding 500,000 hours.
Flexible Configuration: Each input channel supports adjustable filter times to reduce signal noise, allowing customization for applications with varying signal stability requirements. For example, in high-vibration environments, longer filter times (e.g., 16 ms) can eliminate false triggers from transient noise.
Efficient Diagnostics: The module includes LED indicators for channel status and communication health, enabling quick fault detection. Its self-diagnostic capabilities automatically report open circuits, short circuits, or voltage anomalies to the control system, minimizing downtime.
Manufacturer: ABB Part number: ABB DDI01
Our extensive ABB catalogue, including
: ABB DDI01
, is available now for dispatch to the worldwide.

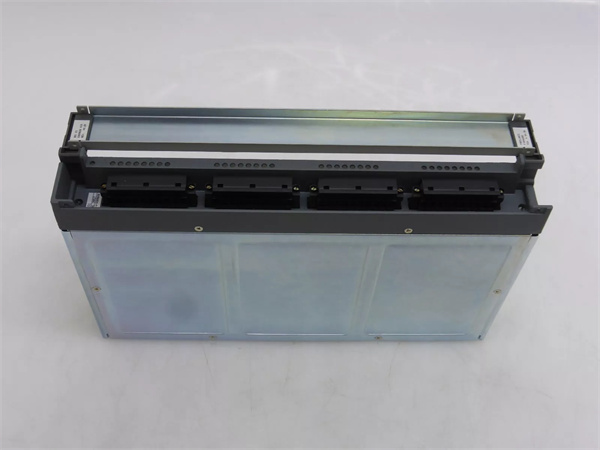

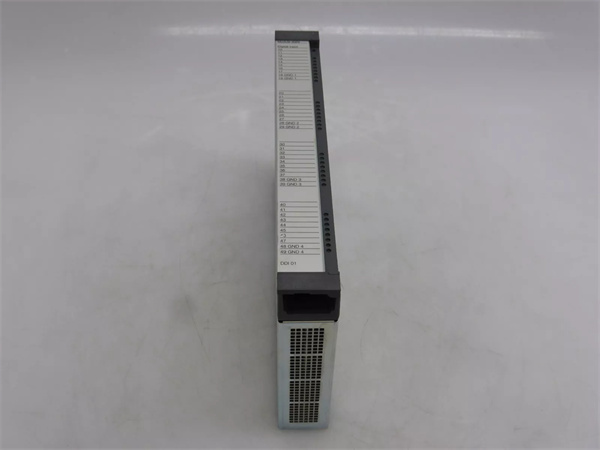

The ABB DDI01is a high-performance digital input module designed for industrial automation systems, providing reliable and precise signal acquisition in harsh industrial environments. As a key component of ABB’s automation portfolio, the DDI01 is engineered to interface with various digital sensors and switches, converting physical signals into process data for PLCs and control systems. This module ensures seamless integration into ABB’s control architectures, enhancing system efficiency and diagnostic capabilities.
Product Parameters
Parameter
Description
Type
Digital Input Module
Input Channels
16 isolated digital inputs
Voltage Range
24 V DC (±10%)
Signal Type
Binary signals (ON/OFF, contact closure/opening)
Filter Time
Adjustable (0.1–32 ms per channel)
Communication
Integrated with ABB AC 800M/PMS systems via Serial Communication Bus (SCB)
Operating Temperature
-40°C to +70°C
Certifications
CE, UL, CSA
ABB DDI01
Advantages and Characteristics
High Reliability: The DDI01 features galvanic isolation for each channel, protecting against voltage spikes and electromagnetic interference (EMI). This isolation ensures signal integrity even in noisy industrial settings, with a proven mean time between failures (MTBF) exceeding 500,000 hours.
Flexible Configuration: Each input channel supports adjustable filter times to reduce signal noise, allowing customization for applications with varying signal stability requirements. For example, in high-vibration environments, longer filter times (e.g., 16 ms) can eliminate false triggers from transient noise.
Efficient Diagnostics: The module includes LED indicators for channel status and communication health, enabling quick fault detection. Its self-diagnostic capabilities automatically report open circuits, short circuits, or voltage anomalies to the control system, minimizing downtime.
Application Fields and Application Cases
Applicable Industries: The DDI01 is widely used in manufacturing (e.g., assembly lines, machine tools), energy (e.g., power distribution, oil & gas), and process automation (e.g., conveyor systems, packaging lines).
Application Case: In a pharmaceutical production facility, the DDI01 was deployed to monitor the status of 16 safety interlocks on a filling machine. The module’s fast response time (≤1 ms) and noise filtering ensured real-time detection of door openings or equipment malfunctions, triggering immediate system shutdowns to prevent safety hazards. This implementation reduced emergency stop incidents by 20% and improved compliance with regulatory standards.
Comparison with Similar Products
Compared to generic digital input modules, the DDI01 offers deeper integration with ABB’s control platforms, such as the AC 800M series, eliminating the need for custom drivers or protocol converters. Its wide temperature range (-40°C to +70°C) and robust isolation exceed industry standards, making it suitable for extreme environments where other modules might fail.
ABB DDI01
Selection Suggestions
Channel Requirements: Ensure the DDI01’s 16-channel capacity matches your application’s input needs. For systems requiring more than 16 digital inputs, consider daisy-chaining multiple modules or selecting a higher-channel model from ABB’s portfolio.
Voltage Compatibility: Verify that the module’s 24 V DC input matches your field devices’ output voltage. Avoid mixing voltage levels to prevent damage to the module or sensors.
Environmental Conditions: If operating in high-temperature, high-vibration, or EMI-prone areas, the DDI01’s rugged design is ideal. For less demanding environments, evaluate whether its advanced features align with your budget.
Notes
Installation: Mount the module in a grounded control cabinet to minimize EMI. Use shielded twisted-pair cables for signal wiring, keeping power and signal cables separate to avoid cross-interference.
Wiring: Follow the DDI01’s terminal block diagrams for correct polarity and grounding. Ensure all field devices are powered off before connecting or disconnecting wiring to prevent electrical arcs.
Maintenance: Regularly inspect LED indicators for abnormal status (e.g., constant red for fault conditions). Use ABB’s Control Builder software to review diagnostic logs and update firmware as needed to maintain optimal performance.
