Description
ABB CI543 is a high-performance communication interface module designed for ABB’s AC 800M control system. As a critical component in industrial automation networks,
CI543 enables seamless communication between the control system and field devices, ensuring reliable data exchange and real-time control. This module supports multiple communication protocols, including PROFIBUS DP, making it versatile for integrating with a wide range of sensors, actuators, and intelligent devices.
ABB CI543 is built with robust hardware to withstand harsh industrial environments, featuring advanced diagnostics and error-handling capabilities to minimize downtime. Its plug-and-play design simplifies installation and configuration, allowing engineers to quickly deploy it in complex automation setups.
| Parameter |
Specification |
| Communication Protocols |
PROFIBUS DP V1/V0, 9.6 kbps – 12 Mbps |
| Number of Channels |
2 independent PROFIBUS DP channels |
| Electrical Isolation |
Galvanic isolation (500 V AC) |
| Power Supply |
24 V DC (±20%) |
| Current Consumption |
< 150 mA |
| Operating Temperature |
-40°C to +70°C |
| Dimensions |
100 mm x 160 mm x 40 mm |
| Certifications |
CE, ATEX (for hazardous areas), IEC 61131-2 |

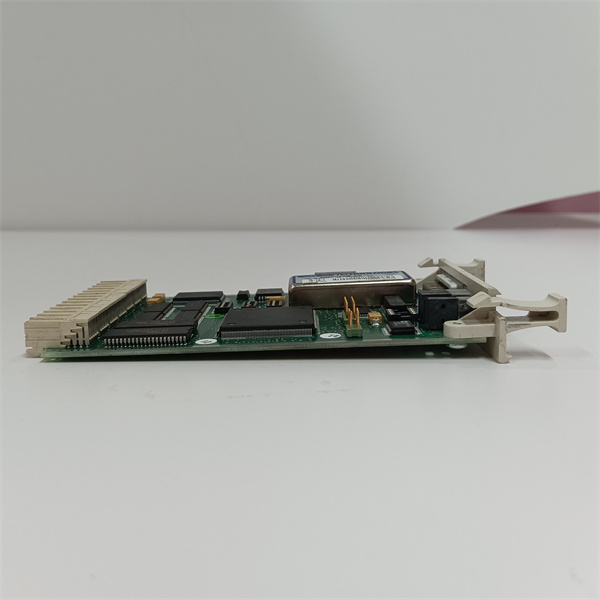

ABB CI543
ABB CI543 offers exceptional reliability, with built-in redundancy support for both channels to ensure continuous operation even in the event of a single-channel failure. Its high data transfer rate (up to 12 Mbps) enables real-time communication in fast-paced automation processes, such as high-speed manufacturing lines or precision control systems. The module’s advanced diagnostics provide detailed status information, allowing for quick troubleshooting and maintenance. For example, it can detect faulty field devices or cable disruptions and alert operators via the control system, reducing mean time to repair (MTTR) by up to 30%. Additionally, its compatibility with ABB’s Control Builder software streamlines configuration and commissioning, saving engineering time and effort.
CI543 is ideal for industries requiring robust and flexible communication solutions, including oil and gas, chemical processing, power generation, and automotive manufacturing. It is commonly used in distributed control systems (DCS) to connect PLCs, drives, and process instruments.
Application Case: A large petrochemical plant integrated ABB CI543 into its safety instrumented system (SIS) to manage communication between safety controllers and field devices. The module’s PROFIBUS DP compatibility allowed seamless integration with existing flow meters, pressure transmitters, and emergency shutdown valves. By leveraging its redundancy features, the plant achieved a 99.99% uptime in critical communication paths, reducing the risk of unplanned shutdowns and improving operational safety. The real-time data exchange also enabled faster response to process anomalies, enhancing overall plant efficiency.
Compared to similar communication modules on the market, ABB CI543 stands out for its dual-channel redundancy and wide temperature range (-40°C to +70°C), making it suitable for extreme industrial environments where other modules might fail. Its deep integration with ABB’s control ecosystem (e.g., AC 800M, Control Builder) offers a more cohesive solution than generic third-party products, reducing compatibility risks. The module’s advanced diagnostics and ATEX certification for hazardous areas also provide a competitive edge, particularly in safety-critical applications. While some competitors offer similar protocol support, few match its combination of reliability, ease of use, and environmental robustness.

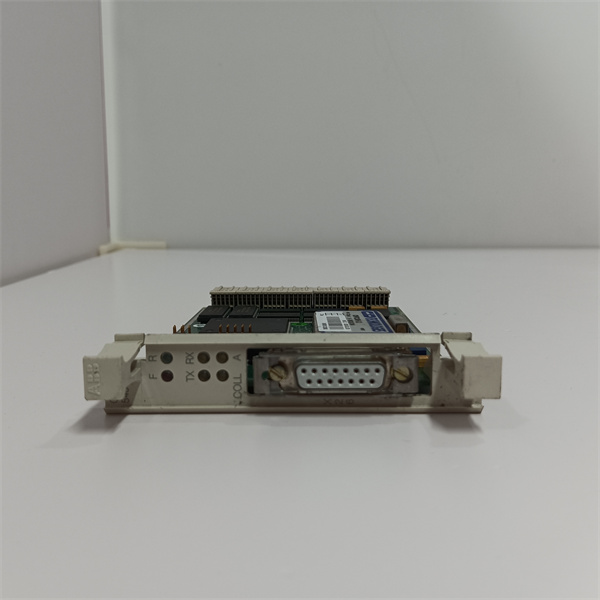

ABB CI543
When selecting ABB CI543, consider the following:
- Protocol Requirements: Ensure the module supports the communication protocols used by your field devices (e.g., PROFIBUS DP). If integrating with other protocols (e.g., MODBUS), assess whether additional gateways or modules are needed.
- Redundancy Needs: If high availability is critical, leverage the dual-channel redundancy feature to avoid single points of failure. This is especially important in continuous production environments.
- Environmental Conditions: Verify that the module’s temperature, humidity, and vibration ratings align with your plant’s operational environment, particularly for outdoor or harsh-duty applications.
- Scalability: Evaluate the number of field devices to be connected. CI543 supports up to 126 devices per channel, making it suitable for medium to large-scale systems. For smaller setups, consider whether a single-channel module would suffice to optimize costs.
- Installation: Always power off the control system before installing or removing CI543 to avoid electrostatic discharge (ESD) damage. Ensure proper grounding of the module and use shielded cables for PROFIBUS connections to minimize electromagnetic interference (EMI).
- Configuration: Use ABB’s Control Builder software to correctly configure the module’s address, baud rate, and profile for each PROFIBUS channel. Incorrect settings can lead to communication failures or data corruption.
- Maintenance: Regularly inspect the module for loose connections or physical damage. Update the firmware periodically to benefit from the latest security patches and performance improvements, following ABB’s recommended procedures to avoid bricking the module.
- Safety Compliance: In safety-critical applications, ensure CI543 is used in conjunction with certified safety controllers and follows applicable standards (e.g., IEC 61508). Do not use non-redundant channels for safety-related communication unless explicitly validated.
Shanxi Xinyeda International Trading Co., Ltd. is your trusted partner, we provide and other automation spare parts sales and technical support. Please visit our website www.xydcontrol.com or contact us and we will be happy to serve you.
