Description

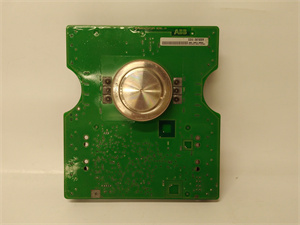

The ABB 5SHX06F6004 is a high-performance thyristor module designed for demanding power conversion and control applications in industrial automation systems. As a key component of ABB’s renowned power semiconductor portfolio, the 5SHX06F6004 combines advanced semiconductor technology with robust mechanical design to deliver reliable performance in high-voltage and high-current environments. This module belongs to ABB’s X-Series thyristor family, which is engineered to meet the rigorous requirements of power grids, renewable energy inverters, and large-scale motor drives.
The 5SHX06F6004 serves as a critical building block for voltage source converters (VSCs), HVDC systems, and static var compensators (SVCs), enabling precise control of power flow and efficient energy management. Its core functions include switching high-power electrical circuits, regulating voltage and current, and ensuring stable operation under transient conditions. With a focus on durability and efficiency, this module is positioned as a trusted solution for industries requiring high-reliability power electronics, such as utilities, heavy manufacturing, and renewable energy infrastructure. By integrating the 5SHX06F6004 into system designs, engineers can achieve optimized power conversion efficiency, reduced harmonic distortion, and enhanced system stability.
| Parameter Name |
Parameter Value |
| Product Model |
5SHX06F6004 |
| Manufacturer |
ABB |
| Product Type |
Thyristor Module |
| Voltage Rating |
6500 V |
| Current Rating (IT(AV)) |
4000 A |
| Turn-On Time |
≤ 6 μs |
| Turn-Off Time |
≤ 80 μs |
| Di/dt Capability |
≥ 150 A/μs |
| dv/dt Capability |
≥ 1000 V/μs |
| Case Temperature Range |
-40°C to +125°C |
| Mounting Type |
Press-Fit / Screw-Mounted |
| Package Dimensions |
150 mm x 100 mm x 50 mm (approximate) |
The 5SHX06F6004 stands out for its exceptional voltage and current handling capabilities, making it suitable for applications requiring up to 6500 V and 4000 A of continuous operation. Its robust design includes a pressure-contact package that ensures low thermal resistance and uniform electrical contact, minimizing power losses and extending operational lifespan. The module’s high di/dt and dv/dt ratings enhance its ability to withstand rapid current and voltage changes, critical for fault protection and dynamic system stability.
A key advantage of the 5SHX06F6004 is its compatibility with ABB’s modular system architecture, allowing easy integration into larger converter systems. This modularity reduces installation complexity and enables scalable designs, whether for grid-scale HVDC projects or industrial motor drives. Additionally, the module’s wide temperature operating range (-40°C to +125°C) ensures reliability in harsh environments, from outdoor substations to high-temperature manufacturing facilities.
The 5SHX06F6004 also incorporates advanced failure mode control, designed to fail in a predictable manner that simplifies system protection and maintenance. This feature, combined with ABB’s rigorous quality assurance processes, ensures long-term performance and minimizes unplanned downtime. For engineers prioritizing efficiency and sustainability, the module’s low switching losses contribute to reduced energy consumption and lower operational costs over the product lifecycle.
The ABB 5SHX06F6004 thyristor module is ideally suited for high-power transmission and distribution systems, where it plays a critical role in HVDC converters, static synchronous compensators (STATCOMs), and motor starting systems. In renewable energy applications, such as large-scale wind farms and solar plants, the module enables efficient power conversion from variable energy sources to the grid, ensuring stable voltage and frequency regulation.
Industrial sectors benefit from the 5SHX06F6004 in applications like metal rolling mills, cement plants, and mining operations, where large motors require precise speed control and reliable power switching. The module’s durability also makes it a preferred choice for marine and offshore systems, where it withstands harsh environmental conditions while delivering consistent performance in shipboard power systems or offshore platform converters.
For grid modernization projects, the 5SHX06F6004 supports the integration of distributed energy resources (DERs) by enabling flexible power flow control and fault ride-through capabilities. Its role in voltage source converter (VSC) technology facilitates the transition to smarter, more resilient electrical grids, ensuring efficient energy distribution and reduced carbon footprints.
- 5SHX10F6003: A higher-current variant (6000 A) in ABB’s X-Series, designed for ultra-high-power applications like cross-continental HVDC links.
- 5SHX04F6002: A lower-current model (2500 A) suitable for smaller-scale converters or distributed energy projects.
- 5SYX15L0001: A gate driver unit optimized for ABB thyristor modules, ensuring precise triggering and control.
- 5SHX06R6004: A reverse-conducting thyristor variant for applications requiring integrated diode functionality.
- UNI6000 Series: ABB’s modular converter platform, compatible with the 5SHX06F6004 for scalable HVDC and FACTS solutions.
Pre-installation preparation: Ensure the mounting surface is flat and clean to guarantee optimal thermal contact. Verify the system’s electrical parameters (voltage, current, and frequency) match the 5SHX06F6004 specifications. Use appropriate torque settings when securing the module with screws or pressure plates, and ensure all connections are tight to prevent arcing. Conduct a thorough insulation test of the system before power-up to avoid damage to the module.
Maintenance recommendations: Regularly inspect the module for signs of physical damage or thermal stress, such as discoloration or deformation. Monitor operating temperatures using ABB’s diagnostics tools to ensure they remain within the specified range (-40°C to +125°C). Clean the module and its surroundings periodically to remove dust or debris that could affect heat dissipation. If replacing a faulty module, ensure the new 5SHX06F6004 is properly calibrated and matched to the system’s control parameters to maintain consistent performance.
ABB stands behind the 5SHX06F6004 with a comprehensive quality assurance program, including rigorous testing at every stage of production to ensure compliance with international standards (IEC, IEEE). The module is backed by a standard warranty covering material and workmanship defects, with extended warranty options available for critical applications. ABB’s global technical support team provides 24/7 assistance for installation, troubleshooting, and system optimization, ensuring minimal downtime and maximum operational efficiency. Customers can rely on ABB’s decades of expertise in power semiconductors to deliver a product that combines cutting-edge technology with unmatched reliability, supporting long-term success in even the most demanding industrial environments.
Shanxi Xinyeda International Trading Co., Ltd. is your trusted partner, we provide and other automation spare parts sales and technical support. Please visit our website www.xydcontrol.com or contact us and we will be happy to serve you.
