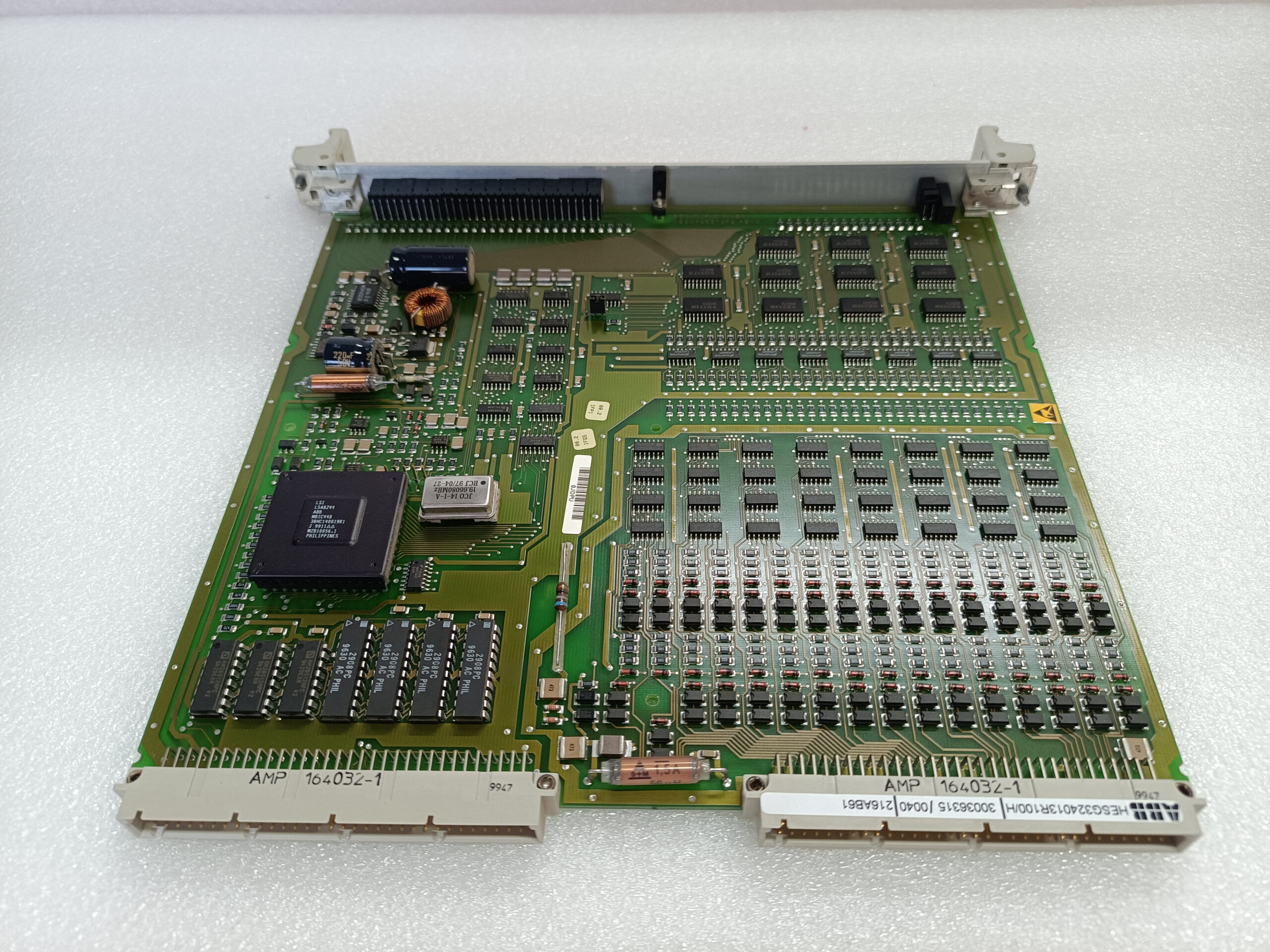

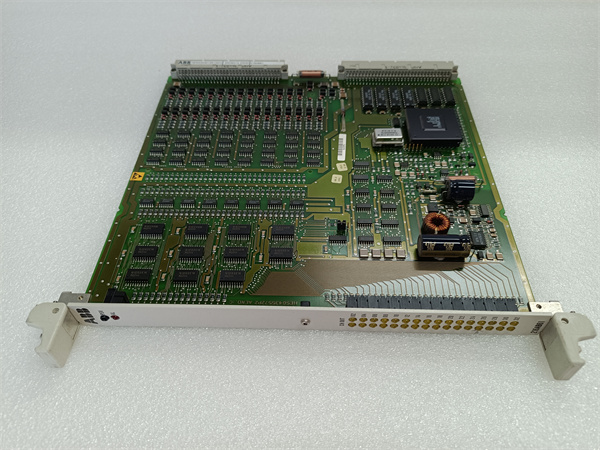

ABB 216AB61

Description

ABB 216AB61

ABB 216AB61 product description

ABB 216AB61 is a high-performance digital output module used in industrial automation control systems to convert digital signals into binary output signals for controlling actuators such as relays, valves, and motors. It realizes the precise control of the device through the output switching signal, and provides a variety of communication interfaces to support the data exchange and integration with other devices.

Product parameter

Input voltage range: 20~30V DC or 9~36V DC (specific models may vary).

Output voltage range: 115 to 230V AC (suitable for power module applications).

Rated output current: 6A (for power module applications).

Efficiency: over 90%.

Power consumption: less than 10W.

Operating temperature range: -40°C to 75°C.

Storage temperature range: -40°C to 85°C.

Size and weight: Module dimensions are 100mm x 65mm x 25mm and weight is 200g.

Protection level: IP20 or higher.

Communication interface: Supports Modbus RTU and other protocols.

Product specification

Module type: digital output module.

Output type: binary switching signal.

Interface standard: Meets IEC 60950-1 and UL 508 safety standards.

Compatibility: Support ABB Procontrol system and other industrial automation equipment.

series

The ABB 216AB61 belongs to ABB’s Procontrol family of modules known for their high precision, low power consumption and high reliability.

trait

High reliability: Manufactured with high-quality components, rigorously tested and verified for harsh industrial environments.

High precision: with high-speed data acquisition and high-resolution output capabilities.

Low power consumption: High operating efficiency and low energy consumption.

Modular design: easy installation and maintenance, support flexible configuration.

Anti-interference ability: It has good anti-electromagnetic interference performance to ensure stable signal transmission.

Versatility: Supports multiple communication protocols and can be integrated with other devices.

effect

The main functions of ABB 216AB61 are:

Control external devices (e.g. motors, valves, relays, etc.).

Automate control functions such as process control, equipment protection and remote monitoring.

Provides signal conversion function to convert digital signal to switching signal.

ABB 216AB61

use

ABB 216AB61 is widely used in the following areas:

Industrial automation: Used in production line automation control, process control and equipment protection.

Power industry: Used in power plants, substations and power system control.

Manufacturing: Used in automobile manufacturing, food processing, chemical industry and other fields.

Water treatment industry: for the control of water treatment equipment.

Building automation: used to control lighting, ventilation and other systems in intelligent buildings.

Other industrial fields: such as mining, transportation, aerospace, etc.

ABB 216AB61

Application field

Applications for ABB 216AB61 include, but are not limited to:

Manufacturing: Automobile manufacturing, food processing, chemical industry, etc.

Power industry: power plants, substations, power system control.

Water treatment industry: water treatment equipment control.

Building automation: Control of lighting and ventilation systems in intelligent buildings.

Transportation: railway traffic, logistics management, etc.

Other industrial fields: such as mining, aerospace, etc.
