ABB 07DC92

Description

ABB 07DC92

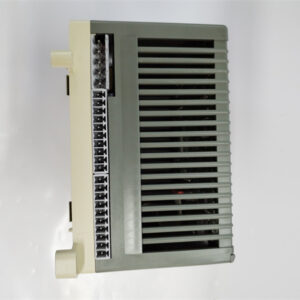

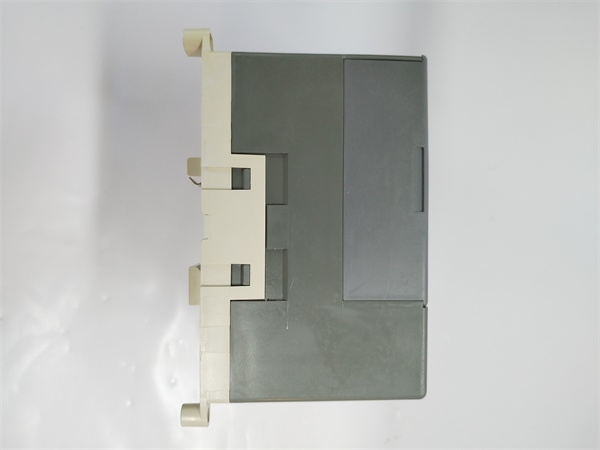

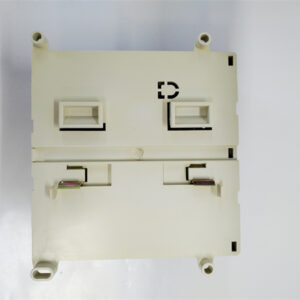

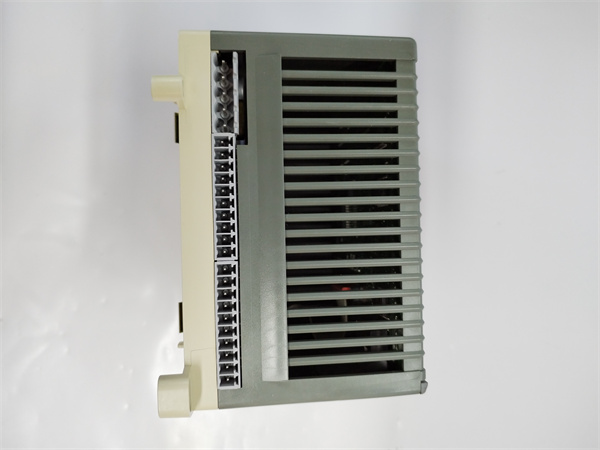

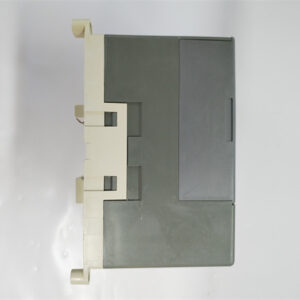

ABB 07DC92 product description

The ABB 07DC92 is a configurable digital input/output module belonging to the ABB Advant OCS family for signal acquisition and control in industrial automation systems. By communicating with PLC (Programmable logic controller) or other control systems, it realizes the precise control and data exchange of the equipment.

Product parameter

Model: 07DC92

Number of input/output channels: 32 digital input/output channels, support packet configuration.

Power supply voltage: 24V DC.

Operating temperature range: 0°C to +55°C.

Storage temperature range: -25°C to +75°C.

Protection level: IP20.

Size: 85mm×140mm×120mm.

Weight: 0.47 kg.

Interface type: Plug-in terminal connector.

Communication protocol: Support CS31 bus.

Product specification

Input type: Support a variety of digital input signals, such as switching signals, pulse signals, etc.

Output type: Support a variety of digital output signals, such as relay output, transistor output, etc.

Current drive capability: Maximum current per channel is 0.5A.

Sampling time: Programmable from 0.1ms to 1s.

ABB 07DC92

series

The ABB 07DC92 is part of the ABB Advant OCS family of modules designed for industrial automation with high reliability and flexibility.

trait

High reliability: Industrial grade design for harsh environments.

Modular design: Support flexible configuration, users can set the number of input/output channels according to requirements.

Electrical isolation: There is electrical isolation between input and output to improve system safety.

Compatibility: Seamless integration with ABB CS31 systems and other industrial automation equipment.

Easy installation and maintenance: The module is compact, easy to install and maintain.

ABB 07DC92

Function and use

ABB 07DC92 is mainly used in the following aspects:

Digital signal acquisition: Collect digital signals from sensors or switches.

Digital signal output: control actuator or indicator light.

PLC system expansion: Expand the input/output capability of the PLC system.

Process control: For the precise control of temperature, pressure, flow and other process variables.

Application field

ABB 07DC92 is widely used in the following industries:

Industrial automation: such as manufacturing, petrochemical, energy management, etc.

Process control: such as chemical, pharmaceutical, food processing, etc.

Building automation: such as building control systems.

Robotics: Used for communication between robots and external devices.

Energy management: such as power system monitoring and optimization.
