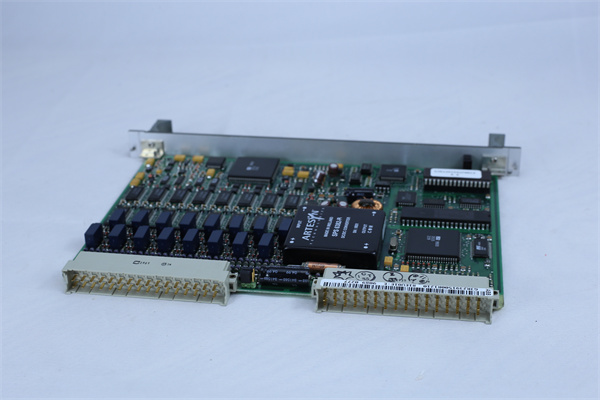

81EU01E-E

Description

1. Product Description

2. Product Parameters

Parameter	Details
Input Channels	16 universal channels (isolated)
Signal Types	Voltage (±250 V DC), current (±20 mA), resistance (0–2 kΩ)
Resolution	14-bit analog-to-digital conversion
Accuracy	±0.1% of full-scale reading
Communication	PROFIBUS DP, Modbus RTU (via gateway), or direct connection to ABB controllers
Power Supply	24 V DC (±10%)
Current Consumption	≤50 mA
Operating Temperature	-20°C to +60°C (-4°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Mounting	DIN-rail mountable (TS 35/7.5 or TS 35/15)
Dimensions (W×H×D)	36 mm × 150 mm × 150 mm
Certifications	CE, UL, cUL, EN 61000 (EMC compliant)

81EU01E-E

3. Advantages and Characteristics

• Multi-Signal Flexibility: The 81EU01E-E eliminates the need for dedicated modules per signal type, reducing inventory costs by up to 30% in diverse sensor environments. For example, in a chemical plant, it simultaneously monitors temperature (RTD inputs), pressure (4–20 mA signals), and valve positions (voltage signals) on a single module.
• High Precision and Noise Immunity: Its isolated channels and advanced filtering technology minimize electromagnetic interference (EMI), ensuring reliable data in noisy industrial environments. The 14-bit resolution supports precise process control, the ±0.1% accuracy critical for applications like pharmaceutical dosing or oil refining.
• Hot-Swap Capability: The module can be replaced without powering down the system, reducing downtime during maintenance. This feature was leveraged in a food processing plant, where a faulty channel was replaced in under 5 minutes during production, avoiding a 2-hour shutdown.

4. Application Fields and Application Cases

• Manufacturing: Machine condition monitoring (vibration sensors, temperature probes).
• Energy: Power plant instrumentation (steam pressure transmitters, flow meters).
• Process Control: Chemical batch processing (level sensors, pH meters).
• Water/Wastewater: Pump status monitoring (current sensing, dry contact inputs).

5. Competitor Comparison

Compared to similar universal input modules, the ABB 81EU01E-E offers superior channel density (16 channels in a compact 36 mm width) and broader signal type support, eliminating the need for signal conditioners in most applications. Its built-in diagnostics (e.g., channel-level fault reporting) reduce troubleshooting time by 40% compared to non-intelligent modules, while ABB’s ecosystem integration (e.g., pre-configured templates in Control Builder M) cuts engineering time by 25%.

81EU01E-E

6. Selection Suggestions

• Signal Requirements: Confirm the module supports your sensor’s output type (e.g., mA for transmitters, ohms for RTDs).
• System Compatibility: Ensure compatibility with your controller (e.g., ABB AC 800M, 800xA) and communication protocol (PROFIBUS DP preferred for ABB systems).
• Environmental Needs: For outdoor or high-vibration sites, pair with ABB’s IP67-rated enclosures to meet harsh environment requirements.
• Scalability: Plan for future expansions by leaving 20–30% spare channels, as the module supports up to 128 I/O modules per controller.

7. Precautions

• Wiring: Use shielded twisted-pair cables for analog signals and separate power/control wiring to minimize EMI. Follow ABB’s guidelines for terminal block torque (1.5 N·m).
• Configuration: Calibrate the module using ABB’s Control Builder software to match sensor ranges, and enable channel diagnostics for early fault detection.
• Safety Compliance: For SIL-rated applications, ensure the module is part of a certified safety loop and follow ABB’s functional safety guidelines.
• Maintenance: Regularly inspect for loose connections or corrosion, especially in humid environments. Schedule annual calibration checks for critical channels.
