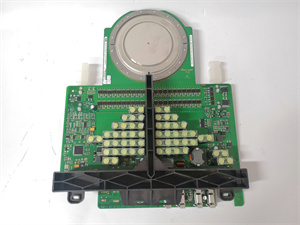

5SHY3545L0016 3BHB020720R0002 3BHE019719R0101 GVC736BE101 ABB

Description

1. Product Description

2. Product Parameters

Parameter	Specification
Voltage Rating	3300 V DC
Current Rating	1200 A RMS
Switching Frequency	Up to 20 kHz
Package Type	Press-fit IGBT module with integrated diode
Thermal Resistance (Rth(j-c))	0.015 K/W
Operating Temperature	-40°C to +125°C (junction)
Dimensions (W x H x D)	120 mm x 140 mm x 30 mm
Certifications	IEC 60747-9, RoHS compliant

5SHY3545L0016 3BHB020720R0002 3BHE019719R0101 GVC736BE101

3. Advantages and Characteristics

• High Power Density: The 5SHY3545L0016 3BHB020720R0002 3BHE019719R0101 GVC736BE101 offers a compact design with exceptional power-handling capabilities, allowing for smaller system footprints and reduced installation costs.
• Energy Efficiency: Advanced IGBT technology minimizes switching losses, improving overall system efficiency by up to 15% compared to traditional thyristor-based solutions.
• Reliable Thermal Management: The module’s press-fit design and direct copper bonding enhance heat dissipation, ensuring stable performance even under continuous high-load conditions.
• Integrated Diagnostics: Built-in voltage and temperature sensors enable real-time monitoring of critical parameters, facilitating predictive maintenance and reducing unplanned downtime.

4. Application Areas and Application Cases

• Applicable Industries: Manufacturing (motor drives), renewable energy (solar/wind inverters), oil and gas (pump systems), and electric transportation (railway traction).
• Application Case: In a large-scale wind farm, the 5SHY3545L0016 3BHB020720R0002 3BHE019719R0101 GVC736BE101 was used in wind turbine inverters to convert variable-frequency AC power from generators to grid-compatible sinusoidal power. The module’s high efficiency and rugged design reduced energy losses by 8% and improved turbine uptime by 25%, leading to a significant increase in annual energy production.

5. Comparison with Similar Products

Compared to comparable power semiconductor modules, the 5SHY3545L0016 3BHB020720R0002 3BHE019719R0101 GVC736BE101 stands out for its balanced combination of high voltage/current ratings and compact size. Its integrated driver circuitry and diagnostic features simplify system design, while its wide temperature range and robust construction make it a preferred choice for demanding applications where reliability and efficiency are critical.

5SHY3545L0016 3BHB020720R0002 3BHE019719R0101 GVC736BE101

6. Selection Recommendations

• Power Requirements: Match the module’s voltage and current ratings to the specific needs of your application, ensuring headroom for peak loads and future scalability.
• Environmental Conditions: Evaluate the operating temperature, humidity, and vibration levels of the installation site to confirm the module’s thermal and mechanical specifications are suitable.
• System Integration: Consider compatibility with existing control systems and drive architectures, prioritizing modules with standardized interfaces for seamless integration.

7. Precautions

• Installation: Always use appropriate electrostatic discharge (ESD) protection during handling and installation. Ensure proper torque specifications are followed for electrical connections to avoid loose contacts.
• Cooling System: Maintain adequate airflow or liquid cooling to prevent overheating, as the module’s performance and lifespan are highly dependent on thermal management.
• Safety Compliance: Adhere to local electrical codes and safety standards, especially in high-voltage applications. Use insulated tools and follow lockout/tagout procedures during maintenance.
