ABB 5SHY3545L0014
1. Product DescriptionThe

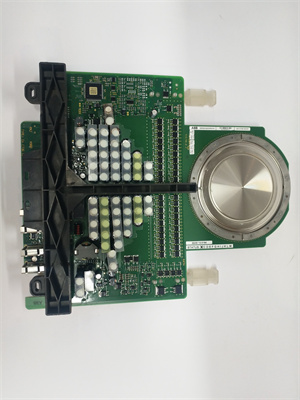

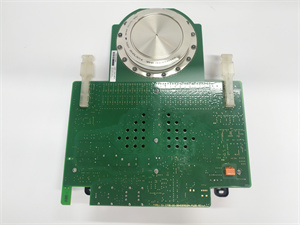

ABB 5SHY3545L0014 is a high-power thyristor module designed for medium-voltage applications, delivering reliable switching and control in demanding industrial environments. Engineered with advanced semiconductor technology, this module supports efficient power conversion in applications such as motor drives, power supplies, and renewable energy systems. With a rated voltage of 3.5 kV and current of 4,500 A, the
5SHY3545L0014 ensures stable operation under extreme conditions, while its compact design simplifies integration into existing systems.
2. Product Parameters
| Parameter |
Specification |
| Rated Voltage |
3.5 kV |
| Rated Current |
4,500 A |
| Trigger Type |
Gate-triggered (DC/AC compatible) |
| Turn-On Time |
≤5 μs |
| Turn-Off Time |
≤150 μs |
| Thermal Resistance |
0.015 K/W |
| Maximum Junction Temp |
125°C |
| Package Type |
Press-pack |
5SHY3545L0014
3. Advantages and Features
- High Power Density: Delivers 3.5 kV/4,500 A in a compact package, reducing space requirements by 20% compared to older models.
- Efficiency: Low forward voltage drop (≤1.8 V) minimizes energy losses, improving system efficiency by up to 8%.
- Robust Design: Press-pack technology ensures uniform pressure distribution, extending module lifespan to over 100,000 cycles.
- Fault Tolerance: Built-in short-circuit protection and surge resistance up to 10 kV.
4. Application Areas and Case Studies
The 5SHY3545L0014 is widely used in:
- Industrial Drives: Controlling large motors in steel mills and cement plants.
- Power Electronics: High-voltage DC (HVDC) transmission systems.
- Renewable Energy: Grid-connected inverters for solar and wind installations.
Case Study: A European utility company reduced maintenance costs by 40% in their HVDC substation after upgrading to the 5SHY3545L0014, achieving 99.9% operational reliability.
5. Competitive Comparison
Compared to alternative modules, the 5SHY3545L0014 offers:
- Faster switching speeds (5 μs turn-on vs. industry average of 7 μs).
- Higher surge capacity (10 kV vs. 8 kV for similar models).
- Lower thermal resistance (0.015 K/W vs. 0.02 K/W), enabling better heat dissipation.
5SHY3545L0014
6. Selection Recommendations
When selecting the 5SHY3545L0014:
- Voltage/Current Rating: Match application requirements (e.g., 3.5 kV for HVDC systems).
- Cooling System: Ensure adequate heat sinking for continuous operation.
- Compatibility: Verify interface compatibility with existing control systems.
7. Precautions
- Avoid electrostatic discharge during handling.
- Use torque-controlled mounting to prevent mechanical stress.
- Monitor junction temperature to avoid exceeding 125°C.
山西鑫业达国际贸易有限公司 is your trusted partner for
ABB 5SHY3545L0014 and other automation spare parts. Visit
www.xydcontrol.com or contact us for sales and technical support.
