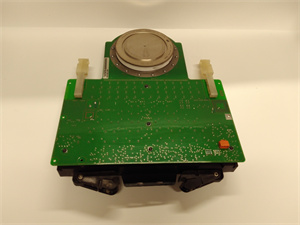

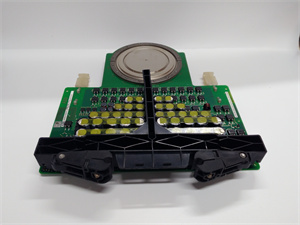

ABB IGCT module 5SHX2645L0004 3BHB003154R0101 5SXE03-0141 3BHB003149P104 Product details

5SHX2645L0004 3BHB003154R0101 5SXE03-0141 3BHB003149P104 ABB IGCT(Integrated Gate Converter Thyristor)is a high-power power electronic device mainly used for high voltage and high current power conversion and control.Compared to traditional GTOs,IGCTs have faster switching speeds,lower drive losses,and higher reliability,making them widely used in power systems,industrial drives,and other fields.

characteristic

High voltage and high current:suitable for high voltage and high current power conversion applications.

Quick switch:With faster switching speed,it improves the system’s response speed.

Low driving loss:reduces the power loss of the driving circuit.

High reliability:It has high reliability and can operate stably for a long time under harsh working conditions.

Modular design:easy to install and maintain.

Product parameters and specifications

Rated current:The maximum current that a module can withstand.

Rated voltage:The maximum voltage that a module can withstand.

Switching frequency:the switching speed of the module.

On state voltage drop:the voltage drop when the module is conducting.

Packaging form:The external dimensions and pin arrangement of the module.

Driver circuit requirements:voltage,current,and other requirements for the driver circuit.

5SHX2645L0004 3BHB003154R0101 5SXE03-0141 3BHB003149P104 ABB

Product function and purpose

ABB IGCT modules are mainly used for:

Power system:electric traction,static reactive power compensation,flexible AC transmission system,etc.

Industrial drive:motor drive,metallurgy,steel rolling,etc.

Renewable energy sources:wind power generation,photovoltaic power generation,etc.

application area

ABB IGCT modules are widely used in the following fields:

Power electronic transformer:realizing high-frequency transformation,improving the efficiency and power density of transformers.

Static reactive power compensation device:improves the power factor of the power grid and enhances the quality of electrical energy.

High voltage direct current transmission:achieving long-distance and high-capacity power transmission.

Motor drive:controls the motor speed and torque.

Electric traction:used for electric locomotives,subways,etc.

5SHX2645L0004 3BHB003154R0101 5SXE03-0141 3BHB003149P104 ABB

summary

ABB IGCT module 5SHX2645L0004 3BHB003154R0101 5SXE03-0141 3BHB003149P104 is a high-performance power electronic device with wide applications in power systems and industrial drive fields.
