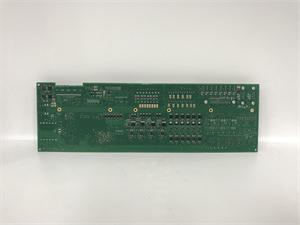

3BHE042816R0101 PCD244A101

Description

Product Description: ABB 3BHE042816R0101 PCD244A101

Product Parameters

Parameter	Specification
Type	Digital I/O Module (16-channel input/output)
Voltage	24V DC (±10%)
Current per Channel	20 mA (input); 0.5 A (output)
Interface	ABB Communication Bus (e.g., MODBUS, Profibus DP)
Compatibility	ABB AC500, AC800M, and Industrial IT systems
Operating Temperature	-40°C to +70°C (wide temperature range)
Certifications	CE, UL, RoHS

3BHE042816R0101 PCD244A101

Advantages and Features

1. High Reliability:
   • Built with redundant power supply and short-circuit protection, ensuring operation in harsh environments (MTBF: >500,000 hours).
   • EMI/EMC resistance for stable performance in noisy industrial settings.
2. Modular Design:
   • Hot-swap capability allows replacement without system downtime, reducing maintenance costs.
   • 16-channel configuration (8 inputs + 8 outputs) for space-efficient installation.
3. Advanced Diagnostics:
   • Real-time status monitoring and fault detection (e.g., open circuit, overvoltage).
   • LED indicators for channel-level diagnostics.
4. Energy Efficiency:
   • Low power consumption (≤5W) compliant with energy-saving standards.

Application Areas and Case Studies

• Manufacturing (assembly lines, robotics)
• Energy (power plants, renewable energy systems)
• Water and wastewater treatment
• Oil and gas (process control)

Case Study:
A European automotive plant upgraded its assembly line with the 3BHE042816R0101 PCD244A101 to replace outdated I/O modules. The module’s hot-swap feature and robust diagnostics reduced downtime by 30%, while its wide temperature range ensured stable operation in high-heat welding zones. Productivity improved by 15% due to seamless integration with ABB’s PLC system.

3BHE042816R0101 PCD244A101

Competitor Comparison

• Superior Compatibility: Native support for ABB’s industrial communication protocols (e.g., ABB Ability™), reducing integration complexity.
• Longer Lifecycle: Backward compatibility with legacy ABB systems, extending equipment longevity.
• Cost Efficiency: Lower maintenance costs (hot-swap + modular design) compared to non-modular alternatives.

Selection Recommendations

1. Compatibility: Ensure alignment with your ABB PLC platform (e.g., AC500, AC800M).
2. Environment: Choose based on temperature range (-40°C to +70°C) and EMI exposure.
3. Scalability: Opt for 16-channel modules (like the 3BHE042816R0101 PCD244A101) for dense I/O applications; use 8-channel modules for simpler setups.
4. Budget: Balance upfront costs with long-term savings (e.g., reduced downtime).

Precautions

1. Installation:
   • Follow ABB’s ESD (electrostatic discharge) protection guidelines.
   • Ensure proper grounding and cable shielding to prevent signal interference.
2. Operation:
   • Do not exceed rated voltage/current per channel.
   • Regularly inspect LED indicators for fault alerts.
3. Maintenance:
   • Schedule annual checks for connector wear and dust accumulation.
   • Replace modules if exposed to liquids or extreme vibrations.
