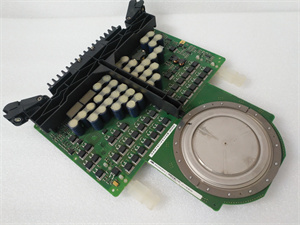

3BHB013088R0001

Description

1. Product Description

2. Product Parameters

3. Advantages and Characteristics

• High Voltage and Current Handling Capacity: The 3BHB013088R0001 can manage a nominal voltage of 4500V and a nominal current of 3500A. This high capacity makes it suitable for high-power applications such as high-voltage direct current (HVDC) transmission systems. In HVDC systems, it can endure the extremely high voltages and large currents, ensuring the stable operation of the power transmission network.
• Rapid Switching Speed: With a turn-on and turn-off time of 1.5μs each, the 3BHB013088R0001 can quickly respond to control signals. In applications like inverters and frequency converters that require high-frequency switching, this fast switching speed improves the overall efficiency and performance of the equipment. It allows for more precise control of electrical power conversion, reducing energy losses and enhancing the system’s dynamic response.
• Low Power Loss: The on-state voltage drop of the 3BHB013088R0001 is only 2.5V, and the off-state leakage current is a mere 10mA. These low values result in minimal power consumption during operation. For large power electronic devices, this low loss feature translates into significant energy savings and reduced operating costs over time.

4. Application Areas and Application Cases

• Application Areas: The 3BHB013088R0001 is widely utilized in power electronic equipment including high-voltage direct current transmission systems, inverters, and frequency converters. It is applicable in various industrial sectors that demand high-power control, such as the power generation and distribution industry, the metallurgical industry where large amounts of electrical power are used for smelting processes, and large industrial drive applications in manufacturing plants.
• Application Case: In a large-scale wind power generation project, the 3BHB013088R0001 was installed in the inverter equipment of the wind turbine generator units. The inverter is responsible for converting the alternating current (AC) generated by the wind turbines into direct current (DC) and then back into AC with the appropriate frequency and voltage for connection to the power grid. Due to the high voltage and current handling capacity of the 3BHB013088R0001 and its fast switching speed, the inverter was able to operate stably and efficiently. It ensured a smooth power conversion process, enabling the wind power generation project to supply electricity to the grid with high quality and reliability.

5. Comparison with Competing Products

6. Selection Suggestions

• Compatibility: When choosing the 3BHB013088R0001, it is essential to ensure its compatibility with the existing power electronic system. Check the voltage and current ratings of the system to make sure that the 3BHB013088R0001 can be integrated seamlessly. Also, consider the control system’s requirements for switching speed and signal compatibility to ensure proper operation.
• Installation Environment: Take into account the environmental conditions where the 3BHB013088R0001 will be installed. It should be placed in an area with proper heat dissipation measures, as it generates heat during operation. Ensure that the installation location is protected from dust, moisture, and mechanical vibrations to prevent damage to the module and maintain its performance over time.
• Budget: While the 3BHB013088R0001 offers high performance and reliability, it is necessary to consider the cost in relation to the budget. Evaluate the long-term benefits such as energy savings, reduced maintenance costs, and improved system stability that the 3BHB013088R0001 can bring. Sometimes, investing in a higher-quality product like the 3BHB013088R0001 can result in overall cost savings in the long run.

7. Precautions

• Installation: During the installation of the 3BHB013088R0001, strictly follow the manufacturer’s installation instructions. Ensure that all electrical connections are secure and properly insulated to prevent electrical short circuits or leakage. Use appropriate tools and techniques to handle the module to avoid any physical damage.
• Safety: When operating or maintaining the 3BHB013088R0001, always turn off the power supply and follow safety procedures. Wear appropriate personal protective equipment such as insulated gloves and safety glasses to prevent electrical shock or other injuries.
• Maintenance: Regularly inspect the 3BHB013088R0001 for any signs of damage, overheating, or abnormal operation. Clean the module periodically to remove dust and debris that could affect its performance. Follow the recommended maintenance schedule provided by ABB to ensure the long-term reliability and optimal operation of the 3BHB013088R0001.
