3BDH000741R1

Description

ABB 3BDH000741R1

ABB 3BDH000741R1 Product description

ABB 3BDH000741R1 is a high-performance industrial automation module for signal acquisition, data transmission and control. It can convert the analog signals (such as voltage, temperature, pressure, etc.) of the field equipment into digital signals and transmit them to the control system through the communication interface. The module has the characteristics of high precision measurement, strong anti-interference ability, support for various input and output signal types, etc., and is suitable for harsh industrial environment.

Product parameter

Working voltage: 24V DC.

Power consumption: ≤10W.

Temperature range: -40℃ to +85℃.

Protection class: IP65.

Size: 10cm x 10cm x 10cm (12cm x 12cm x 10cm for some models).

Communication interface: Supports a variety of protocols, including Ethernet, serial communication, etc.

Input/output channels: Up to 16 digital or analog channels are supported.

Product specification

Module type: signal acquisition module, communication module, controller module, etc.

Scope of application: Industrial automation, building automation, power system, transportation and other fields.

series

ABB 3BDH000741R1 belongs to the ABB automation system communication module family, which is used in combination with other modules to form a complete automation control system.

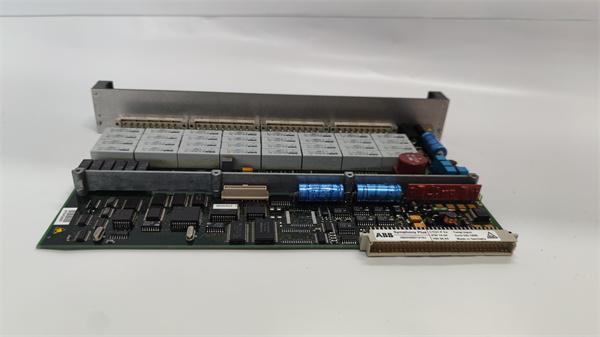

3BDH000741R1

trait

High precision measurement: Suitable for precision measurement and multi-channel monitoring.

Strong anti-interference ability: stable operation in harsh industrial environment.

Modular design: easy installation and maintenance.

Flexible configuration: Supports a variety of input and output signal types and specifications.

Easy maintenance: Supports remote diagnosis and maintenance.

Function and use

The main functions of ABB 3BDH000741R1 are:

Signal acquisition: collect the voltage, temperature, pressure and other signals of the field equipment.

Data transmission: The collected data is transmitted to the control system through the communication interface.

Control and monitoring: Realize real-time control and monitoring of industrial processes and machines.

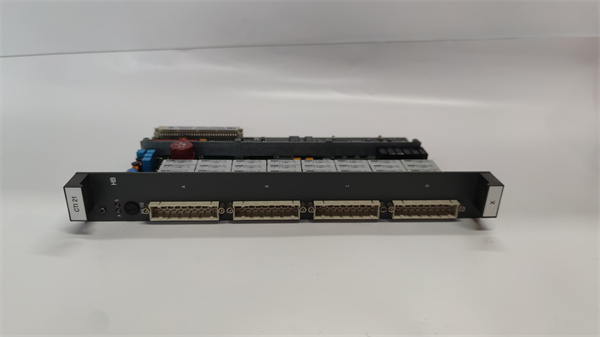

3BDH000741R1

Application field

ABB 3BDH000741R1 is widely used in the following areas:

Industrial automation: for the control and protection of production lines and mechanical automation systems.

Building automation: The collection of environmental parameters (such as temperature, humidity) within the building.

Energy Management: For monitoring equipment in power systems, hydropower and grid management.

Transportation: Automated control in transportation facilities.

Applications in dangerous areas: such as oil and gas refineries, chemical plants, etc.
