3BDH000364R0002 PM783FB0

Description

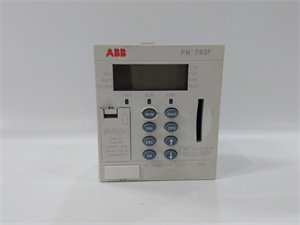

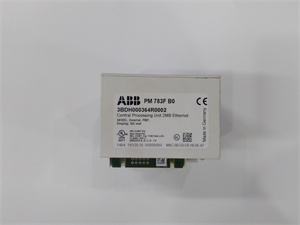

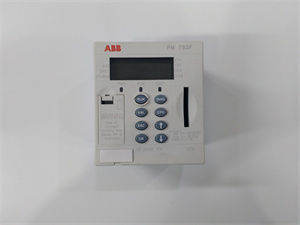

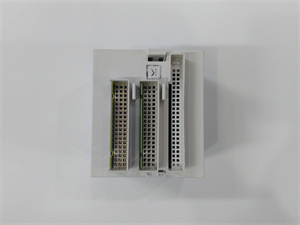

ABB 3BDH000364R0002 PM783FB0 Digital Input/Output Module

Product Overview

ABB 3BDH000364R0002 PM783FB0 is a high-performance and highly reliable industrial automation product,which is part of the ABB 800xA system.This module is mainly used for the input and output of digital signals and plays an important role in industrial process control.

3BDH000364R0002 PM783FB0 ABB

Product Features

Multi functional input/output:It can handle various types of digital input signals,including switch values,pulse signals,counters,etc.,and also supports controlling output relay signals.

Efficient performance:capable of providing high-speed and high-precision digital signal processing,ensuring the accuracy and reliability of digital signals.

Easy to install:Small in size,easy to install,suitable for various on-site installation environments.

High reliability:Using industrial grade materials and design,it can adapt to various harsh environments while having high reliability and long lifespan.

Strong compatibility:compatible with ABB 800xA system,seamlessly integrated with other modules and components of ABB,easy to expand and upgrade the system.

Product parameters

Working voltage:24VDC

Digital input type:isolated type,supporting various digital signals such as switch values,pulse signals,counters,etc

Digital output type:Relay output,supporting control output of switch signal

Number of input/output modules:1

Number of inputs/outputs:16

Current consumption:maximum 300mA

Working temperature:-40℃to+70℃

Storage temperature:-40℃to+85℃

Dimensions:Height 131mm,width 35mm,depth 125mm

Product specifications

DIN rail installation:easy to install on standard DIN rails

Screw terminal:easy to connect,high reliability

3BDH000364R0002 PM783FB0 ABB

series

This product belongs to ABB 800xA system,which is a complete distributed control system launched by ABB company.The 800xA system has high flexibility and scalability,and is widely used in automation control of process industries.

Function and Application

The ABB 3BDH000364R0002 PM783FB0 module is mainly used for:

Data collection:Collect various digital signals from on-site equipment,such as switch values,pulse signals,etc.

Process control:Based on the collected digital signals,control the executing mechanism to achieve control over the process.

Safety interlock:Implement safety interlock function to ensure the safety of the production process.

Alarm monitoring:Monitor process parameters and issue an alarm when the parameters exceed the set range.

application area

This module is widely used in industries such as power,petrochemicals,and water treatment,for example:

Power system:monitoring switch status,protection equipment status,etc.

Petrochemical industry:monitoring valve switch status,pump operation status,etc.

Water treatment:Monitor the status of water pump switches,water level,etc.

3BDH000364R0002 PM783FB0 ABB

summary

The ABB 3BDH000364R0002 PM783FB0 digital input/output module is a powerful and highly reliable industrial automation product.It plays an important role in various industrial process control systems,providing strong support for achieving efficient and stable production.
