Description
The
ABB 3ASC25H214 DATX130 is a high-reliability
digital automation transformer module designed for ABB’s power distribution and substation automation systems. As a critical component of ABB’s
Relion® series, this module serves as a interface between high-voltage power equipment and control systems, enabling precise monitoring and protection of transformers in utility, industrial, and renewable energy applications. The
DATX130 variant of the
3ASC25H214 is engineered to manage complex transformer operations, including tap changer control, winding temperature monitoring, and load management, with advanced diagnostic capabilities to ensure optimal performance and longevity.
Featuring a dual-core microprocessor and 24-bit analog-to-digital conversion, the 3ASC25H214 DATX130 supports real-time data acquisition from voltage and current transformers (VT/CT), providing accurate measurements of electrical parameters (e.g., voltage, current, power factor) with ±0.2% precision. Its IEC 61850-compliant communication interface enables seamless integration with smart grid systems and SCADA platforms, while the hot-swappable design allows maintenance without power interruption in critical substations. Positioned as a scalable solution, the module enhances grid reliability by enabling predictive maintenance of transformers, reducing unplanned outages and extending equipment lifespan.
| Parameter Name |
Parameter Value |
| Product Model |
3ASC25H214 DATX130 |
| Manufacturer |
ABB |
| Product Type |
Digital Automation Transformer Module |
| Measurement Channels |
8x analog inputs (VT/CT), 16x digital I/O |
| Communication Protocols |
IEC 61850, Modbus RTU/TCP, DNP3 |
| Power Supply |
24–125 V DC / 24–230 V AC (dual inputs) |
| Operating Temperature |
-40°C to +85°C |
| Dimensions (W×H×D) |
144 mm × 210 mm × 150 mm |
| Mounting Method |
Panel-mounted or DIN rail (35 mm standard) |
| Certification |
IEC 61850, IEC 61000-6-2, IEEE C37.90 |
| Data Update Rate |
<100 ms (real-time monitoring) |

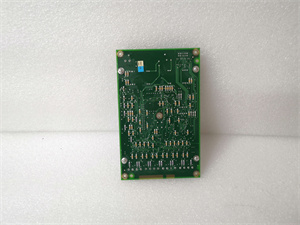

3ASC25H214 DATX130
The 3ASC25H214 DATX130 simplifies transformer control with integrated tap changer automation, automatically adjusting voltage levels to maintain grid stability during load fluctuations. For example, in a renewable energy substation with intermittent solar or wind power, the module optimizes transformer tap positions to ensure consistent voltage supply to the grid. Its winding temperature monitoring feature uses thermal modeling to predict hotspots, triggering alarms before overheating occurs—a critical advantage in preventing transformer failures that could lead to widespread outages.
Engineered with secure boot and AES-128 encryption, the module complies with IEC 62443 cybersecurity standards, protecting against unauthorized access and data tampering in smart grid applications. The dual power supply inputs and hardened electronic design (surge protection up to 4 kV) ensure reliable operation in harsh environments, such as outdoor substations exposed to lightning or voltage spikes. The module’s self-diagnostic functions (e.g., watchdog timer, memory parity checks) reduce mean time to detect (MTTD) faults by 50%, enabling proactive maintenance and minimizing downtime.
The DATX130’s IEC 61850 compatibility enables seamless integration with ABB’s RELION® 600 series protection relays and Ventyx energy management systems, creating a unified platform for substation automation. In a modern utility substation, the module transmits real-time transformer data to a cloud-based analytics tool, allowing engineers to optimize asset utilization and schedule maintenance based on actual wear and tear rather than fixed intervals. This predictive approach reduces maintenance costs by 30% and extends transformer life by up to 10 years.
The ABB 3ASC25H214 DATX130 is indispensable in industries requiring precise transformer control and grid stability:
- Power Utilities: Manages power transformers in transmission and distribution substations, ensuring reliable voltage regulation for residential and commercial consumers. In a regional grid, the module coordinates tap changers across multiple transformers to balance load and reduce energy losses.
- Industrial Manufacturing: Monitors transformers in steel mills, chemical plants, and automotive factories, where stable power is critical for high-energy processes like welding or distillation. The module’s fast data update rate (<100 ms) enables real-time adjustment to sudden load changes from large motors.
- Renewable Energy: Supports transformer management in solar farms, wind parks, and microgrids, addressing the challenges of intermittent power generation. For a wind farm with variable wind speeds, the DATX130 optimizes transformer tap positions to maintain grid compliance and maximize energy export.
- Critical Infrastructure: Protects transformers in data centers, hospitals, and airports, where uninterrupted power is non-negotiable. The module’s redundant power supplies and cybersecurity features ensure reliable operation during power surges or cyber threats.

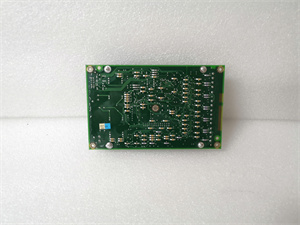

3ASC25H214 DATX130
- ABB 3ASC25H215 DATX131: An upgraded variant with additional I/O channels and advanced thermal modeling, suitable for large power transformers in utility-scale substations.
- ABB RELION® 670: A digital protection relay that integrates with the 3ASC25H214 DATX130 to provide comprehensive transformer protection, including overcurrent and differential protection.
- ABB Ventyx Asset Manager: A software platform that aggregates data from the DATX130 for advanced analytics and predictive maintenance, ideal for utilities managing large transformer fleets.
- ABB TB532: A terminal block accessory for secure wiring of analog and digital signals, ensuring reliable connections in high-vibration substation environments.
- ABB UNITROL® 6800: A static exciter system that works in tandem with the DATX130 to control generator voltage and reactive power in power plants.
Pre-installation preparation: Mount the 3ASC25H214 DATX130 on a substation control panel or DIN rail, ensuring proper grounding and separation from high-voltage cables. Connect VT/CT signals using shielded twisted-pair wiring, and terminate power inputs with surge protection devices. Configure communication parameters (IP address, protocol, security settings) via ABB’s RELION® Configurer software, verifying connectivity with the substation’s IEC 61850 network.
Maintenance recommendations: Perform quarterly visual inspections of the module’s status LEDs and terminal connections, tightening any loose wires (torque: 2.5 N·m). Use ABB’s Transformer Health Monitor software monthly to analyze trends in winding temperature, tap changer operations, and load profiles. Annually, update firmware to incorporate new cybersecurity patches or feature enhancements, and test the module’s self-diagnostic functions to ensure reliability. In harsh environments (e.g., coastal substations), clean the module’s ventilation slots every six months to prevent corrosion from salt or dust.
ABB stands behind the 3ASC25H214 DATX130 with a 5-year warranty, covering defects in materials, firmware, and workmanship. ABB’s global Power Grids Service Team provides 24/7 technical support, including remote diagnostics and on-site maintenance for critical issues. The module undergoes rigorous testing, including 1,000-hour continuous operation tests and EMC immunity trials, to ensure compliance with international standards. For customers in regulated industries, ABB offers grid code compliance certification services, validating the module’s suitability for connection to national power grids. By combining advanced transformer control with ABB’s expertise in power systems, the 3ASC25H214 DATX130 delivers unmatched reliability and performance for the next generation of smart grids.
Shanxi Xinyeda International Trading Co., Ltd. is your trusted partner, we provide and other automation spare parts sales and technical support. Please visit our website www.xydcontrol.com or contact us and we will be happy to serve you.
