3ASC25H209 DATX110

Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

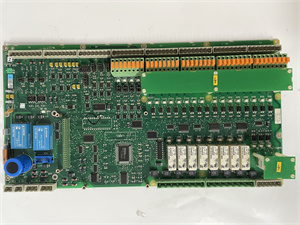

ABB 3ASC25H209 DATX110

ABB 3ASC25H209 DATX110 Product description

The ABB 3ASC25H209 DATX110 is a high-performance digital input/output module belonging to the DATX110 family, designed for industrial automation with high reliability and versatility. It is compatible with ABB drives (such as the ACS800 series) and programmable logic controllers (PLCS), supports multiple communication protocols (such as Ethernet, RS485 and CANopen), and offers a flexible modular design for easy installation and maintenance.

Product parameter

Model: 3ASC25H209 DATX110

Power supply voltage: 24V DC

Operating temperature range: -40℃ to +70℃

Protection level: IP20 or IP30

Dimensions: Approximately 365 x 190 x 40 mm (220 x 160 x 45 mm is mentioned in some data).

Weight: approximately 0.75 kg or 3.5 kg (depending on the configuration).

Rated power: 25 kW

Rated voltage: 380 V

Input/output points: Multiple digital and analog input/output channels are supported.

Communication interface: Support Ethernet, RS485, CANopen and other communication protocols.

Product specification

Material: Metal or aluminum alloy.

Mounting method: DIN rail mounting.

Operating voltage: 24V DC input/output.

Protection level: IP20 or higher.

Modular design: easy to expand and flexible configuration.

series

The ABB 3ASC25H209 DATX110 belongs to the DATX110 family and is part of ABB’s total automation solutions for a wide range of industrial automation applications.

trait

High-performance processor and memory: Support complex industrial control algorithms and data processing, improve system response speed and stability.

Modular design: easy to install, maintain and expand.

High reliability and stability: suitable for harsh industrial environments.

Various communication protocols are supported, including Ethernet, RS485 and CANopen.

Digital and analog signal processing capabilities: ability to collect sensor signals and control actuators.

3ASC25H209 DATX110

3ASC25H209 DATX110

Function and use

The main functions of ABB 3ASC25H209 DATX110 are:

Expand the input and output functions of the inverter or PLC to realize the monitoring and control of the equipment.

Collect sensor signals from field equipment, monitor and record process parameters.

Control actuators, such as motors, valves, etc.

To achieve human-computer interaction functions, such as buttons, indicators, etc.

3ASC25H209 DATX110

3ASC25H209 DATX110

Application field

ABB 3ASC25H209 DATX110 is widely used in the following industries:

Industrial automation: production line control, robotics, sensor networks.

Building control: HVAC control, lighting control.

Energy management: electricity, water treatment, steel.

Transportation system: elevators, escalators, conveyor belts.

Food processing: packaging, printing, textile, chemical industry.

Other industries: petrochemical, machinery manufacturing, chemical industry.
